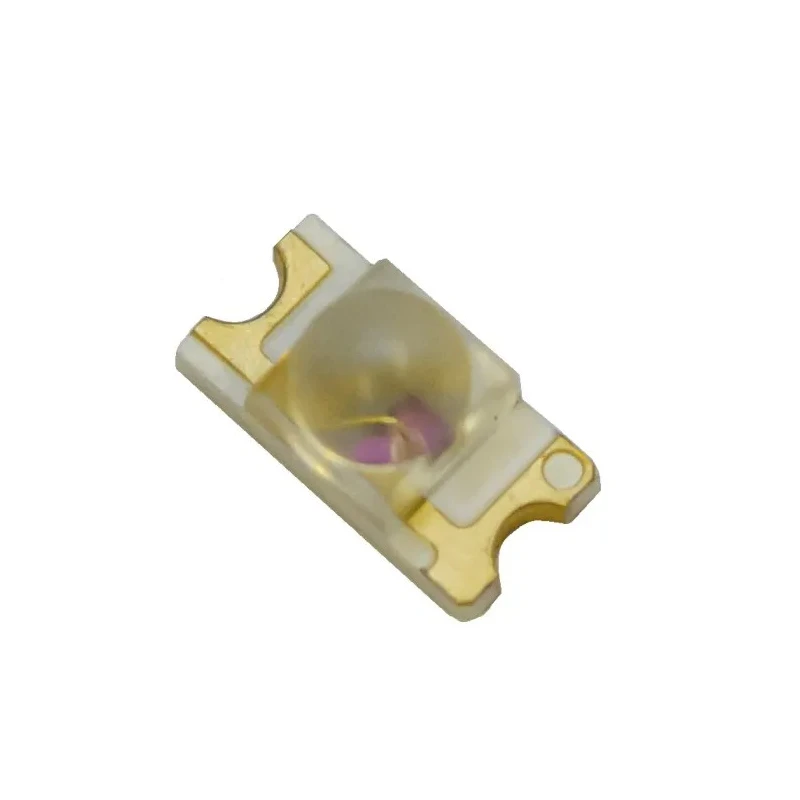

OSA Opto Infrared LED 1020 nm 1206 Surface Package OIS-330-1020p-X-TU
Specifications
| Country of Origin | India |
|---|---|
| Size | 3.2mm x 1.6mm x 1.9mm |
| Brand | OSA Opto |
| Model | OIS-330-1020p-X-TU |
| Technology | GaP, AlInGaP, GaAlAs and InGaN |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | OIS-330 |
| Number Of Leds | 1 |
| Package Type | 1206 |
| Standards/Approvals | RoHs and Reach |
| Number of Pins | 2 |
| Lens Shape | Dome |
| Maximum Supply Voltage | 5V |
| Peak Wavelength | 1020nm |
| LED Material | GaP, InGaN, GaAlAs, AlInGaP |
| Angle of half intensity | 40° |
| Radiant Intensity | 9.50mW/sr |
| view angle | 40° |
| soldering pads | gold plated |
Key Features
- Peak wavelength of 1020 nm for precise infrared emission.
- Compact 1206 surface package measuring 3.2mm x 1.6mm x 1.9mm.
- Radiant intensity of 9.50 mW/sr ensuring strong IR output.
- Gold plated soldering pads suitable for all SMT assembly methods.
- Dome-shaped lens with a 40° angle of half intensity for wide viewing range.
- Utilizes GaP, InGaN, GaAlAs, and AlInGaP LED materials for high performance.
- Single LED with 2 pins for surface mounting.
- Packaged in tape and reel format for automated assembly.
Product Description
OSA Opto OIS-330-1020p-X-TU is a high-quality infrared LED operating at a peak wavelength of 1020 nm, housed in a compact and reliable 1206 surface mount package measuring 3.2mm by 1.6mm by 1.9mm. This dome-lens LED features a radiant intensity of 9.50 mW/sr and a viewing angle of 40°, making it suitable for a variety of infrared illumination and detection applications.
Designed with advanced LED materials including GaP, InGaN, GaAlAs, and AlInGaP, this LED provides efficient and stable IR emission. Its gold-plated soldering pads support all standard surface-mount technology assembly methods, enhancing durability and ease of manufacturing.
With a maximum supply voltage of 5 V and packaging in tape and reel format, the OIS-330-1020p-X-TU is optimized for automated production lines. It complies with RoHS and REACH environmental standards, ensuring safe and eco-friendly use.
This infrared LED is ideal for industrial sensors, medical devices, security systems, remote controls, and machine vision applications where reliable IR illumination is critical. Peak wavelength of 1020 nm for precise infrared emission.
Compact 1206 surface package measuring 3.2mm x 1.6mm x 1.9mm. Radiant intensity of 9.50 mW/sr ensuring strong IR output. Gold plated soldering pads suitable for all SMT assembly methods. Dome-shaped lens with a 40° angle of half intensity for wide viewing range.
Utilizes GaP, InGaN, GaAlAs, and AlInGaP LED materials for high performance. Single LED with 2 pins for surface mounting. Packaged in tape and reel format for automated assembly. Maximum supply voltage is 5 V ensuring safe operation.
Complies with RoHS and REACH standards for environmental safety. Explore more Infrared LEDs and components at EnvMart for diverse electronic and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OSA Opto OIS-330-1020p-X-TU has a peak wavelength of 1020 nm, which is suitable for precise infrared emission.
This infrared LED features a radiant intensity of 9.50 mW/sr, ensuring strong IR output for various applications.
The dimensions of this model are 3.2 mm x 1.6 mm x 1.9 mm, making it compact for surface mounting.
It supports surface mounting, featuring a single LED with 2 pins for easy installation.
The maximum supply voltage for the OIS-330-1020p-X-TU is 5 V, ensuring safe operation in various applications.
This model has a dome-shaped lens with a 40° angle of half intensity, providing a wide viewing range.
The OIS-330-1020p-X-TU utilizes GaP, InGaN, GaAlAs, and AlInGaP materials for high performance.
It is packaged in tape and reel format, which is optimized for automated assembly processes.
This infrared LED complies with RoHS and REACH standards, ensuring it meets environmental safety requirements.
This infrared LED is ideal for industrial sensors, medical devices, security systems, remote controls, and machine vision applications.
The lens shape of this model is dome-shaped, which aids in its infrared emission capabilities.
It features gold-plated soldering pads that are suitable for all standard surface-mount technology assembly methods.
