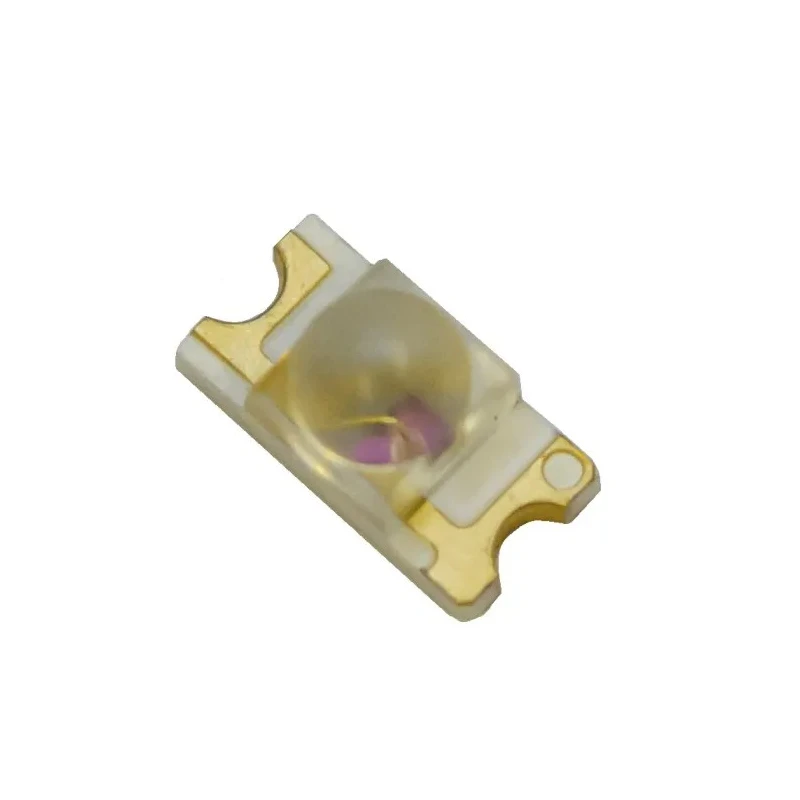

OSA Opto IR LED 1050 nm 7.2mW/sr 5V 1206 Surface Mount Dome Lens OIS-330-1050p-X-TU
Specifications
| Country of Origin | India |
|---|---|
| Size | 3.2mm x 1.6mm x 1.9mm |
| Brand | OSA Opto |
| Model | OIS-330-1050p-X-TU |
| Technology | GaP, AlInGaP, GaAlAs and InGaN |
| Packaging | Tape and Reel |
| Mount Type | Surface |
| Series | OIS-330 |
| Number Of Leds | 1 |
| Package Type | 1206 |
| Standards/Approvals | REACH, RoHS |
| Number of Pins | 2 |
| Lens Shape | Dome |
| Maximum Supply Voltage | 5V |
| Peak Wavelength | 1050nm |
| LED Material | InGaN, GaP, GaAlAs, AlInGaP |
| Angle of half intensity | 40° |
| Radiant Intensity | 7.2mW/sr |
| view angle | 40° |
| soldering pads | gold plated |
Key Features
- Features a compact 1206 package with dimensions 3.2mm x 1.6mm x 1.9mm.
- Utilizes a dome-shaped lens for efficient light dispersion at a 40° viewing angle.
- Constructed using advanced LED materials including InGaN, GaP, GaAlAs, and AlInGaP.
- Designed for surface mount assembly with gold plated soldering pads compatible with all SMT methods.
- Maximum supply voltage is 5 V, supporting efficient low voltage operation.
- Compliant with international standards including REACH and RoHS.
- Packaged in tape and reel format for automated PCB assembly.
- Equipped with 2 pins and a single LED in the series OIS-330.
Product Description
OSA Opto OIS-330-1050p-X-TU is an infrared light emitting diode designed for surface mount technology with a 1206 package size measuring 3.2 mm by 1.6 mm by 1.9 mm. It emits light at a peak wavelength of 1050 nm with a radiant intensity of 7.2 mW/sr and features a dome-shaped lens that provides a 40° angle of half intensity for focused infrared light output.
The LED uses advanced semiconductor materials including InGaN, GaP, GaAlAs, and AlInGaP to ensure high brightness and efficiency. It includes gold plated soldering pads that are compatible with all standard SMT assembly methods, facilitating reliable PCB mounting and connectivity. This LED operates at a maximum supply voltage of 5V and is supplied in a tape and reel packaging format that supports automated manufacturing processes.
This product conforms to environmental and safety standards such as REACH and RoHS, ensuring compliance with international directives on hazardous substances and chemical safety. The design includes two pins for electrical connection and is part of the OIS-330 series of high-quality LEDs from OSA Opto.
While not certified for automotive use, this IR LED is suitable for applications in electronic components manufacturing, optoelectronics, sensor systems, security devices, and consumer electronics requiring infrared illumination or signaling.
Compact 1206 surface mount package with dome lens provides reliable light emission and mounting. High radiant intensity of 7.2mW/sr at peak wavelength 1050 nm for efficient IR output. Gold plated solder pads ensure excellent electrical and mechanical connection in SMT assembly.
Complies with RoHS and REACH standards for environmentally safe electronics. Packaged in tape and reel format designed for automated pick-and-place machinery. Suitable for a variety of industrial, commercial, and electronic uses requiring IR LED components.
Includes two electrical connection pins optimized for surface mounting. Not intended for automotive standard compliance or certified automotive system use.
Explore the OSA Opto IR LED category on EnvMart for additional Infrared LED options and complementary optoelectronic devices suitable for diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this model is 1050 nm, which is suitable for infrared applications.
It has a radiant intensity of 7.2 mW/sr, providing efficient infrared light output.
The dimensions of the 1206 package are 3.2 mm x 1.6 mm x 1.9 mm.
The maximum supply voltage for this infrared LED is 5 V, supporting low voltage operation.
It features a dome-shaped lens that provides a 40° angle of half intensity for focused light output.
This model is packaged in a tape and reel format, which is designed for automated PCB assembly.
The LED is constructed using advanced semiconductor materials including InGaN, GaP, GaAlAs, and AlInGaP.
It includes two pins for electrical connection, optimized for surface mounting.
The OIS-330-1050p-X-TU complies with international standards including REACH and RoHS.
The viewing angle of this unit is 40°, which allows for effective light dispersion.
It is designed for surface mount assembly, compatible with all standard SMT methods.
This model is not intended for automotive standard compliance or certified automotive system use.
