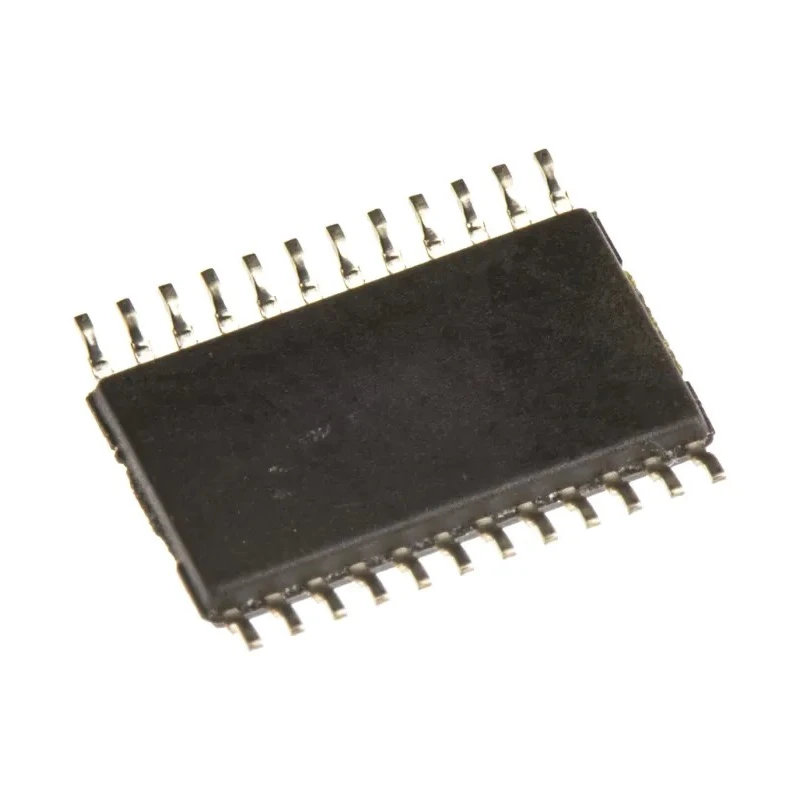

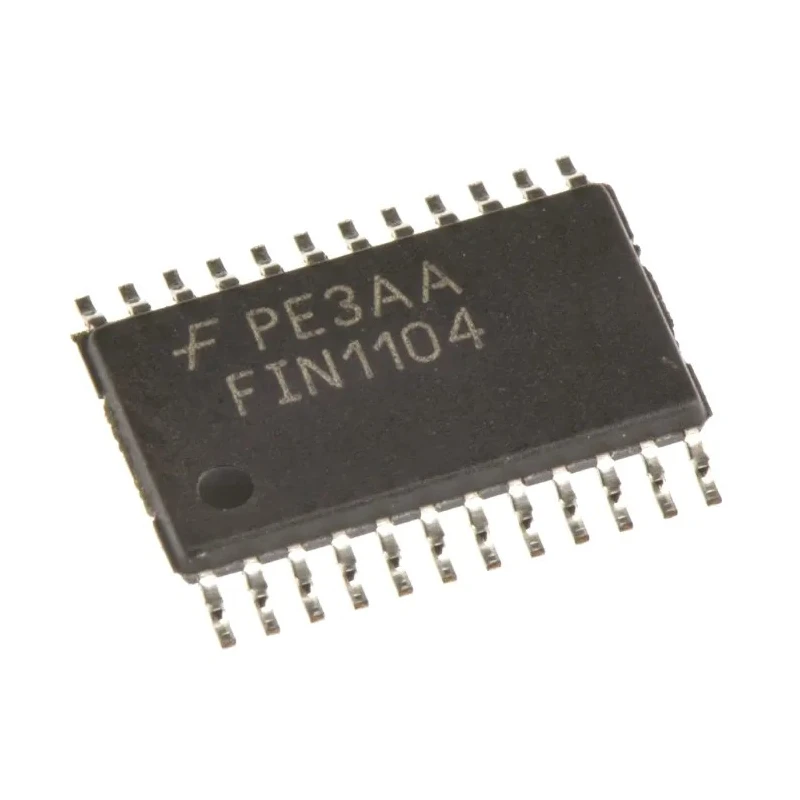

onsemi Repeater IC 4 LVDS, LVDS Interface IC, 24-Pin TSSOP, 3V to 3.6V Supply FIN1104MTC
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 950μm |
| Length | 7.8mm |
| Model | FIN1104MTC |
| Mount Type | Surface |
| Output type | LVDS |
| Series | FIN1104 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Repeater |
| Minimum Operating Temperature | -40°C |
| Pin Count | 24 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Transmission Data Rate | 800Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Operates with a supply voltage range of 3V to 3.6V for stable performance.
- Supports a data transmission rate up to 800Mbps ensuring high-speed communication.
- Features differential input thresholds of ±100mV to maintain signal integrity.
- Compact 24-pin TSSOP package suitable for space-saving PCB designs.
- Operating temperature range from -40°C to 85°C allows use in industrial environments.
- Includes ESD protection to enhance device durability and reliability.
- Designed for surface mount applications simplifying the assembly process.
- Chip series FIN1104 delivers robust LVDS repeater functionality for interface IC applications.
Product Description
onsemi FIN1104MTC is a high-performance repeater IC designed for LVDS (Low Voltage Differential Signaling) interface applications, packaged in a compact 24-pin TSSOP format. This semiconductor component supports 4 LVDS drivers and 4 LVDS receivers, enabling efficient data forwarding and signal conditioning in high-speed digital communication systems.
Operating reliably across a supply voltage range of 3V to 3.6V, the FIN1104MTC facilitates data transmission rates up to 800Mbps, suitable for applications requiring rapid and stable data exchange such as Firewire, SATA, and SCSI interfaces.
The device features differential input high and low threshold voltages of +100mV and -100mV respectively, ensuring robust signal detection and noise immunity. Its surface mount design simplifies PCB assembly and supports modern manufacturing processes.
Engineered for industrial temperature ranges from -40°C to 85°C, the FIN1104MTC includes electrostatic discharge (ESD) protection to safeguard against electrical damage in various operating environments.
The compact dimensions of 7.8mm length and 950μm height allow the integration of the device into densely populated circuit boards without compromising layout efficiency. While not adhering to automotive-specific standards, this repeater IC remains well-suited for a broad range of commercial and industrial electronic equipment.
Operates with a supply voltage between 3V and 3.6V. Supports 4 LVDS drivers and 4 LVDS receivers per chip. Facilitates data rates up to 800Mbps for high-speed communication. Packaged in a 24-pin TSSOP surface mount form factor.
Operates reliably from -40°C to 85°C in industrial environments. Includes built-in ESD protection for enhanced reliability. Compact physical dimensions enable efficient PCB utilization. Designed for LVDS repeater interface IC applications.
This onsemi FIN1104MTC repeater IC is ideal for industrial, laboratory, communications, and electronic manufacturing applications where reliable LVDS signal amplification and integrity are required. Explore more semiconductor components and interface ICs from trusted manufacturers on EnvMart to enhance your electronic systems.
Explore more products in our LVDS Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range of 3V to 3.6V.
It supports a data transmission rate of up to 800Mbps, enabling high-speed communication.
This unit includes 4 LVDS drivers and 4 LVDS receivers per chip.
The device has a length of 7.8mm and a height of 950μm, making it compact for PCB designs.
It operates reliably in an industrial temperature range from -40°C to 85°C.
This repeater IC is packaged in a 24-pin TSSOP format, suitable for surface mount applications.
The differential input high threshold voltage is +100mV, and the low threshold voltage is -100mV.
Yes, it includes electrostatic discharge (ESD) protection to enhance reliability.
It is designed for LVDS repeater interface applications, suitable for high-speed digital communication systems.
This unit is designed for surface mount, simplifying the assembly process on PCBs.
This model is part of the FIN1104 series, which delivers robust LVDS repeater functionality.
The output type of the FIN1104MTC is LVDS (Low Voltage Differential Signaling).
