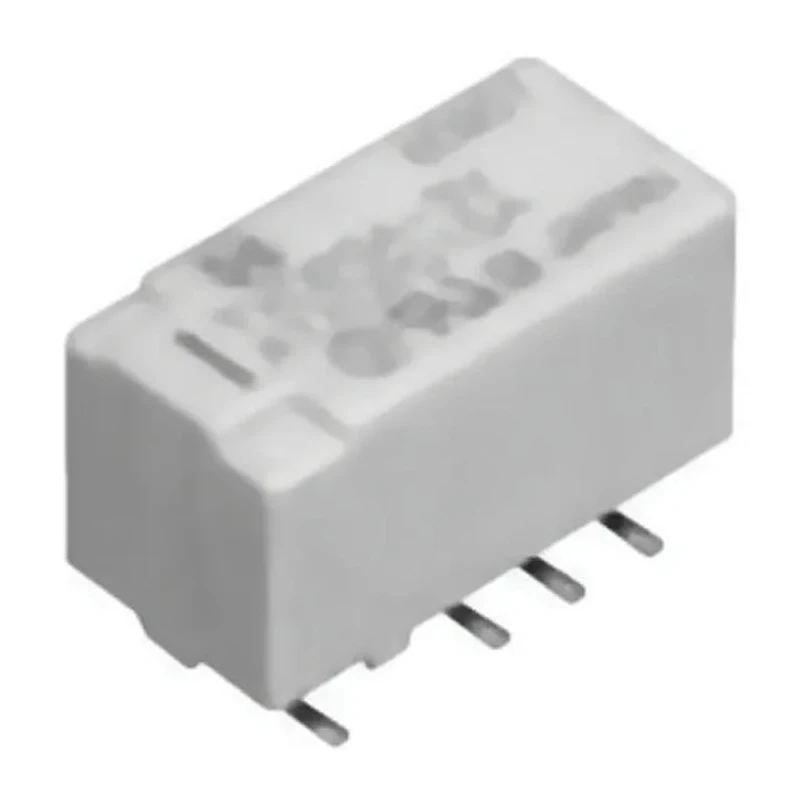

Panasonic Surface Mount Signal Relay 12V DC Coil 2A DPDT, Gold Plated Contacts, High Sensitivity TX2SA-12V-TH
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2SA-12V-TH |
| Width | 7.4mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Coil Resistance | 1020Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 220V ac |
| Coil Power | 140mW |
| UL recognised, | CSA,:BSI |
Key Features
- Compact design suitable for PCB mounting with excellent surge resistance.
- High sensitivity coil power of 140mW enables efficient switching.
- Gold plated contacts provide high reliability and durability.
- Surface mount type with 220V AC/DC switching voltage capability.
- Operating temperature range from -40°C to 85°C for versatile environmental use.
- Sealed construction allows automatic washing and vibration resistance.
- Typical applications include air conditioning controls and high capacity switch functions.
Product Description
Panasonic TX2SA-12V-TH Surface Mount Signal Relay is a high-quality PCB mount relay from the TX2 series designed for industrial and commercial applications.
Featuring a 12V DC coil voltage and double-pole double-throw (DPDT) contact configuration, this relay delivers a switching current capacity of 2A with a high inrush current tolerance of 7.5A. The contacts are gold plated, ensuring excellent conductivity and resistance to corrosion.
With dimensions of 15mm length, 7.4mm width, and 8.2mm height, the relay is compact and efficient, fitting easily in electronic assemblies. Its sealed design provides outstanding vibration and shock resistance, allowing for reliable operation in harsh industrial environments.
The relay supports switching voltages up to 220V for both AC and DC, with a coil resistance of 1020 ohms and low coil power consumption of 140mW, making it energy efficient. Operating temperatures range from -40°C to 85°C, ensuring suitability across a wide range of conditions.
Common applications include use in air conditioning control systems and other high capacity control functions where reliable, durable switching is essential. This product complies with RoHS standards and is recognized by UL, CSA, and BSI for safety and quality assurance.
Compact PCB mount design with surge resistance. High sensitivity coil power at 140mW. Gold plated contacts for long-term reliability. DPDT contact configuration for versatile switching. Wide operating temperature range from -40°C to 85°C.
Sealed construction allowing automatic washing and vibration resistance. Compliance with RoHS and recognized safety approvals.
This Panasonic Signal Relay TX2SA-12V-TH is ideal for industrial, manufacturing, HVAC, and automation system use. Explore more high-quality relays and signal conditioning products in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double-pole double-throw (DPDT) contact configuration, allowing for versatile switching capabilities.
The relay supports switching voltages up to 220V for both AC and DC applications.
The coil voltage for this relay is 12V DC, making it suitable for various low-voltage applications.
It has dimensions of 15mm in length, 7.4mm in width, and 8.2mm in height, making it compact for PCB mounting.
This model can handle a switching current capacity of 2A, with a high inrush current tolerance of 7.5A.
The operating temperature range is from -40°C to 85°C, allowing it to function in various environmental conditions.
This relay is designed for surface mounting, making it suitable for compact electronic assemblies.
The coil power consumption is 140mW, which contributes to its energy efficiency.
The contacts are made of gold plated material, ensuring high reliability and resistance to corrosion.
Yes, it complies with RoHS standards and is recognized by UL, CSA, and BSI for safety and quality assurance.
Common applications include air conditioning controls and other high capacity switch functions where reliable switching is essential.
The coil resistance is 1020 ohms, which is a critical specification for its operation.
