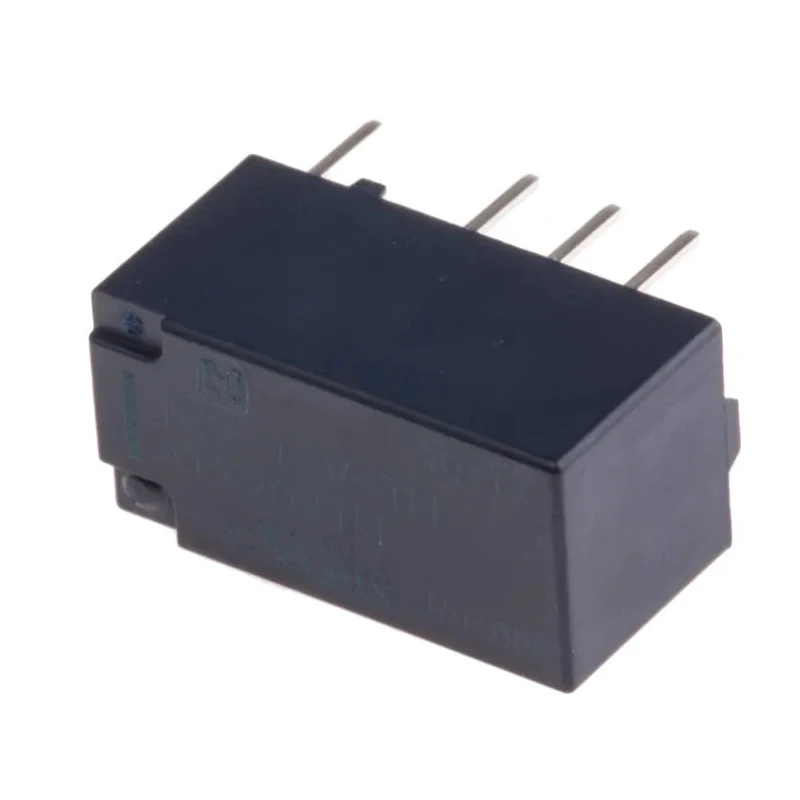

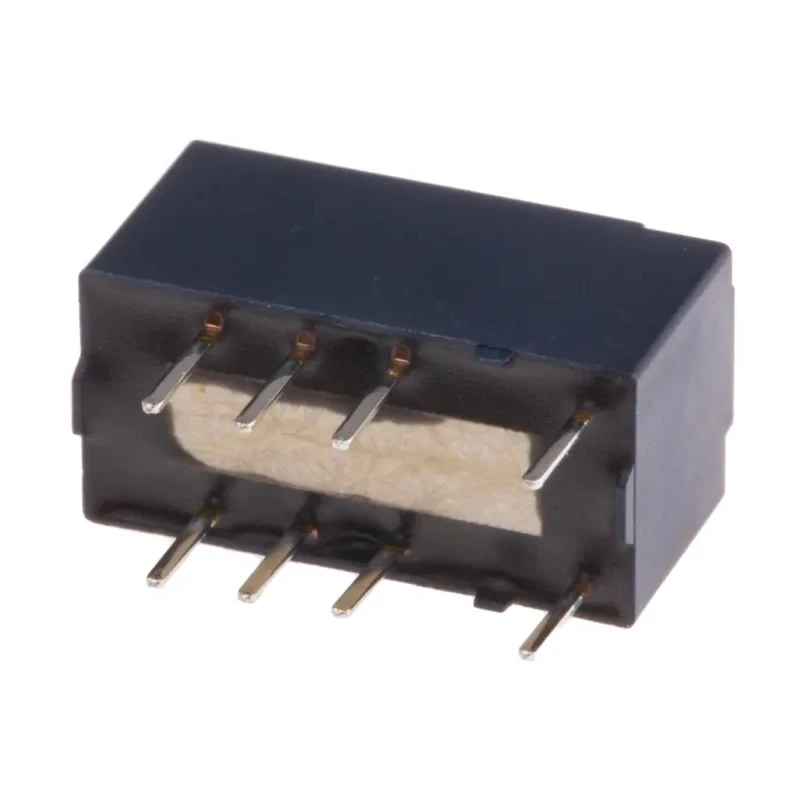

Panasonic Signal Relay Surface Mount 12V DC Coil 2A DPDT Gold Plated Contacts TX2-12V-TH

Panasonic TX2-12V-TH Signal Relay is a compact, high-performance surface mount relay designed for industrial and commercial electrical control applications. Featuring a 12V DC coil and DPDT contact configuration, it is optimized for PCB mounting with a low coil power consumption of 140mW. The gold plated contacts ensure excellent conductivity and reliable switching of up to 2A current at voltages up to 220V AC or DC.

The relay has a fully sealed construction that offers outstanding resistance to vibration, shock, and surge, while allowing automatic washing processes, making it ideal for harsh industrial environments. Its compact size (15mm length, 8.2mm height, and 7.4mm width) makes it suitable for space-constrained PCB designs.

Operating effectively within a temperature range of -40°C to 85°C, the TX2-12V-TH relay withstands extreme conditions typically encountered in HVAC control systems, manufacturing automation, and signal conditioning.

This relay supports a controlled inrush current of up to 7.5A, ensuring durability and functional stability in high-demand switching applications. The coil resistance is 1020Ω, contributing to its low power consumption and energy efficiency.

Coil voltage rated at 12V DC ensuring reliable relay operation. Double-pole double-throw (DPDT) contact arrangement for versatile circuit switching. Surface mount type suitable for PCB integration. Gold plated contacts provide enhanced corrosion resistance and conductivity.

Supports switching currents up to 2A and voltages up to 220V AC/DC. Compact dimensions: 15mm length, 8.2mm height, and 7.4mm width. Wide operating temperature range from -40° to 85°C for varied industrial environments. Sealed construction allows automatic washing and ensures durability.

Compliant with RoHS and UL recognized standards ensuring quality and safety. Ideal for industrial automation, HVAC control, manufacturing, and signal conditioning applications. Explore the extensive range of Panasonic relays and other high-quality electrical components available in our Electronics & Electricals category at EnvMart.
