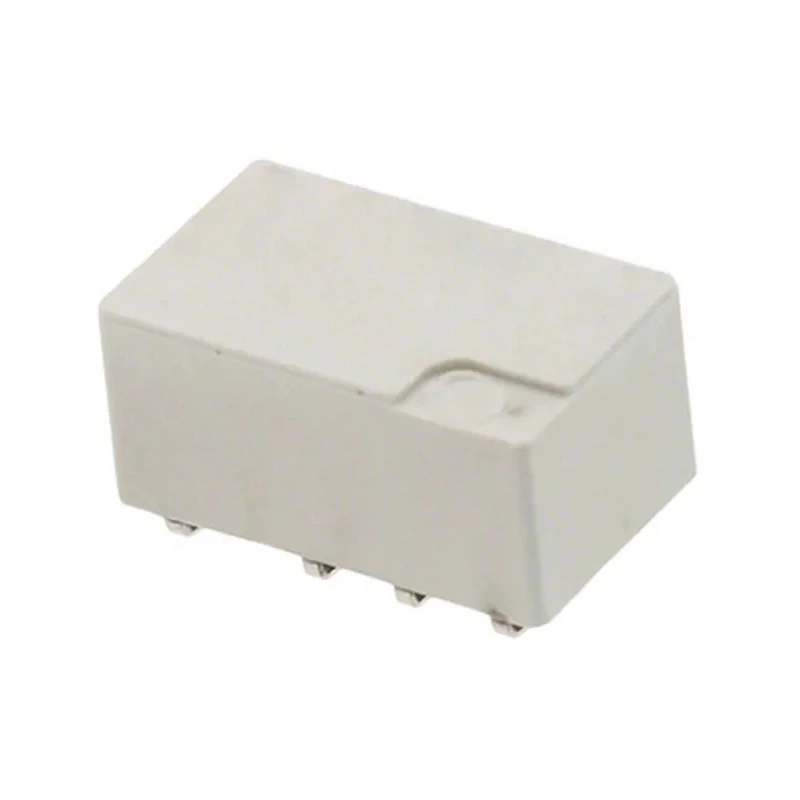

TE Connectivity Surface Signal Relay 12V DC Coil 2A DPDT IM Series 4-1462037-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IME |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | UL |
| Coil Resistance | 1000Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- The relay features a slimline, low profile design with dimensions of 10mm length, 6mm width, and 5.65mm height.
- Gold-plated bifurcated contacts ensure reliable conductivity and durability.
- Coil power consumption is low at 140mW, supporting energy efficient operation.
- The relay supports switching AC voltage up to 250V and DC voltage up to 220V.
- It is hermetically sealed providing IP67 level protection against dust and water.
- Operational temperature range is from -40°C to 85°C suitable for diverse environments.
- High mechanical shock resistance up to 300G functional and 500G survival capabilities.
- Meets UL standards and has high dielectric surge capability meeting Telcordia GR 1089 and FCC standards.
Product Description
TE Connectivity 4-1462037-6 Surface Signal Relay is a compact, high-performance signal relay designed for PCB mount applications. This DPDT relay operates with a 12V DC coil voltage and supports a switching current of 2A, making it suitable for diverse industrial and commercial electronics.
Its slender IM Series design measures just 10mm in length, 6mm in width, and 5.65mm in height, conserving valuable board space. The relay incorporates gold-plated bifurcated contacts to ensure excellent conductivity and long service life.
Engineered for energy efficiency, the coil power is only 140mW, reducing heat generation during operation. It reliably switches AC voltages up to 250V and DC voltages up to 220V, supporting a broad range of signal conditioning needs.
The relay is hermetically sealed according to RT V standards, offering IP67 ingress protection against dust and moisture. It withstands harsh operating temperatures from -40°C up to 85°C, enabling use in extreme environments.
Exceptional mechanical shock resistance up to 300G (functional) and 500G (survival) ensures durability in demanding industrial and automotive applications. With a high dielectric surge capability compliant with Telcordia GR 1089, FCC Part 68, and ITU-T K20, 21, 45 standards, it maintains signal integrity under electrical stress.
Slim, low-profile PCB mount surface signal relay with DPDT contact configuration. Low coil power consumption of 140mW for standard coils. Gold-plated bifurcated contacts for optimal performance. Hermetically sealed, rated IP67 for dust and water protection.
Wide operating temperature range from -40°C to 85°C. High mechanical shock resistance up to 300G functional. Complies with UL standards and Telcordia GR 1089 electrical surge requirements.
This TE Connectivity signal relay is ideal for applications such as telecommunications equipment, optical network terminals, office equipment, test and measurement instruments, medical devices, and automotive systems. Its robust construction and compact design make it suitable for various industrial and commercial uses requiring reliable Signal Relay switching.
Explore more high-quality relays and signal conditioning components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of 2A.
This model measures 10mm in length, 6mm in width, and 5.65mm in height.
The coil voltage for this relay is 12V DC.
The coil power consumption is 140mW, which supports energy-efficient operation.
It can switch AC voltage up to 250V and DC voltage up to 220V.
This relay is designed for surface mounting.
The operational temperature range is from -40°C to 85°C.
It features a DPDT (Double Pole Double Throw) contact configuration.
The relay is hermetically sealed and rated IP67 for protection against dust and water.
It meets UL standards and has high dielectric surge capability compliant with Telcordia GR 1089 and FCC standards.
The contacts are made of gold-plated material for reliable conductivity.
It has a mechanical shock resistance of up to 300G functional and 500G survival capabilities.
