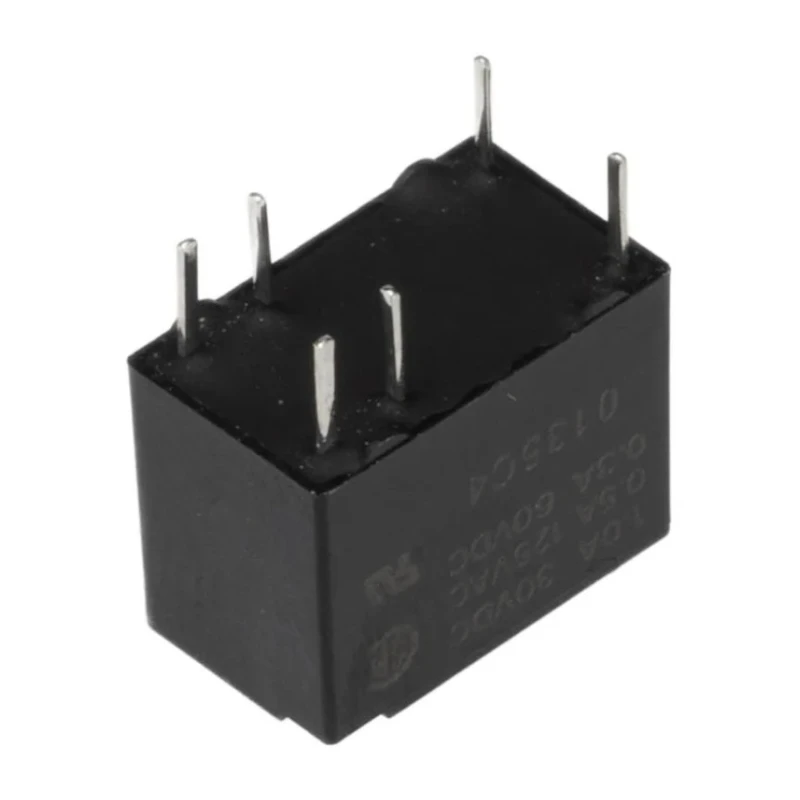

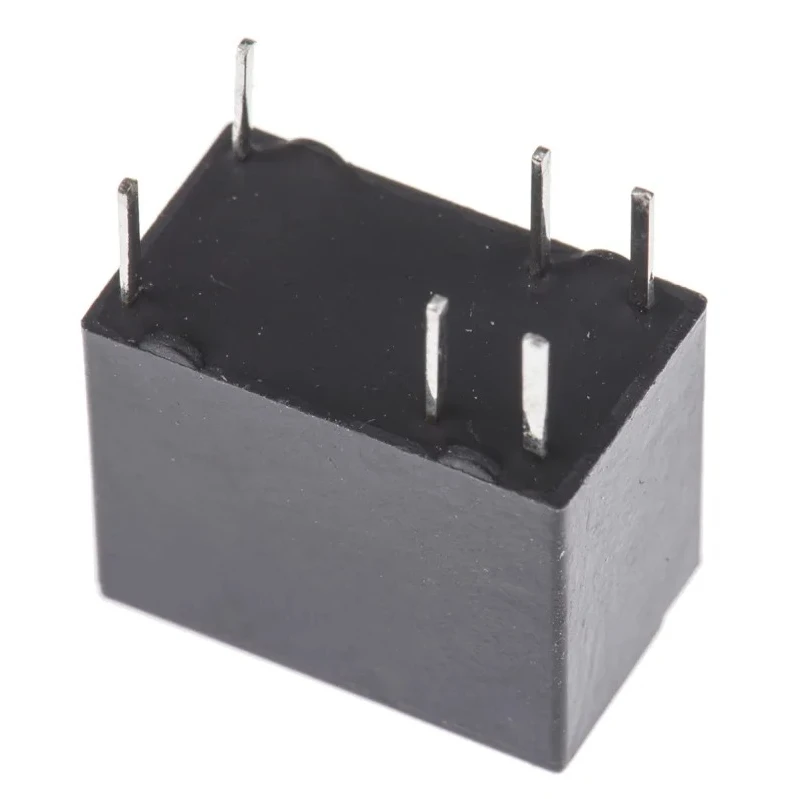

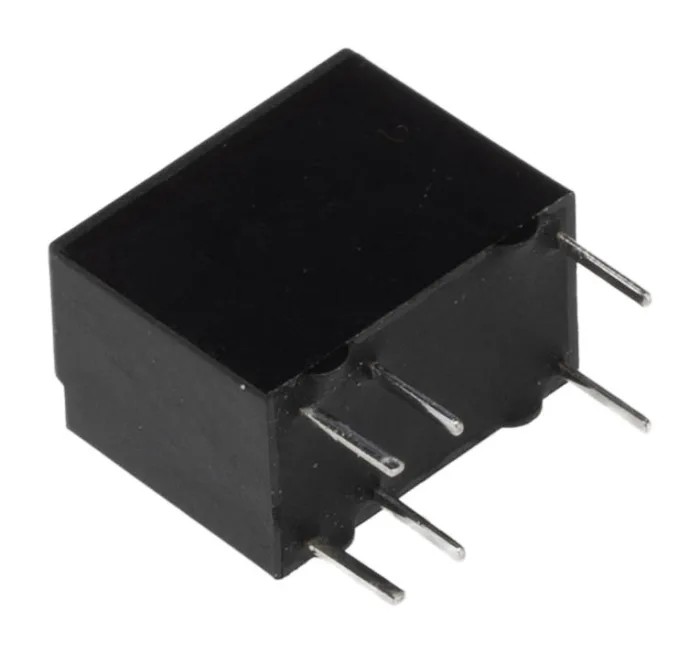

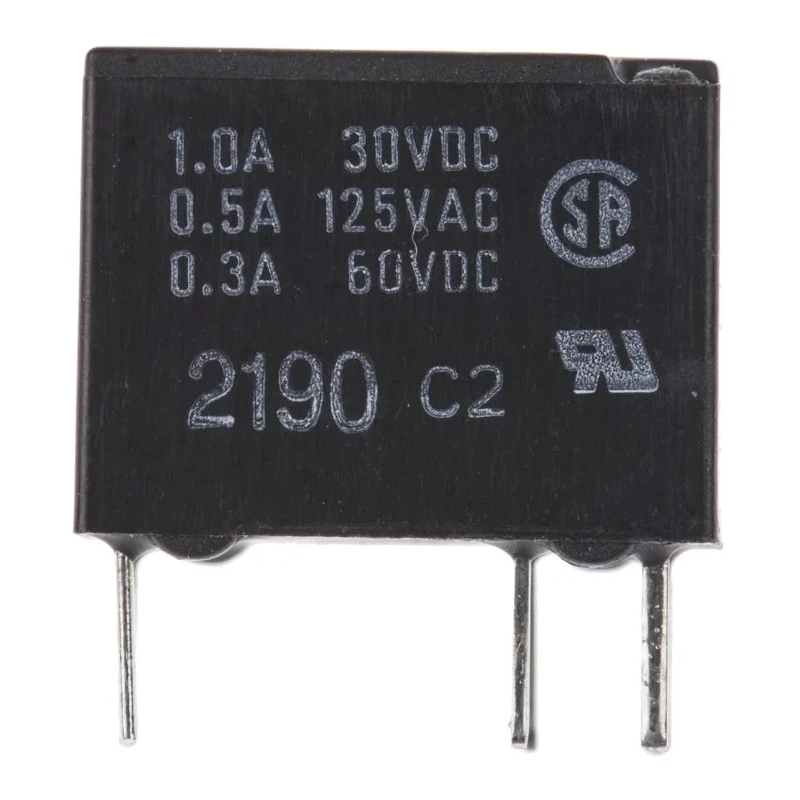

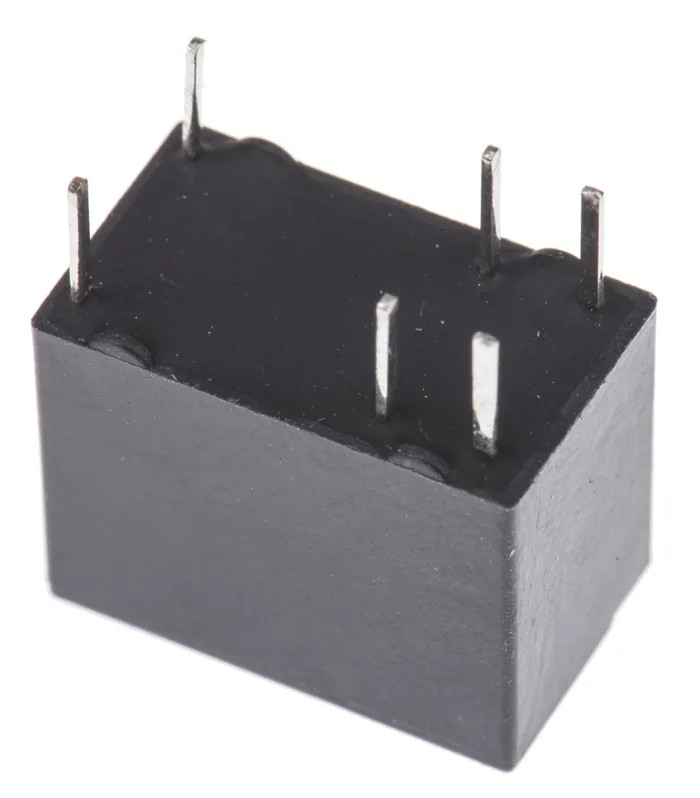

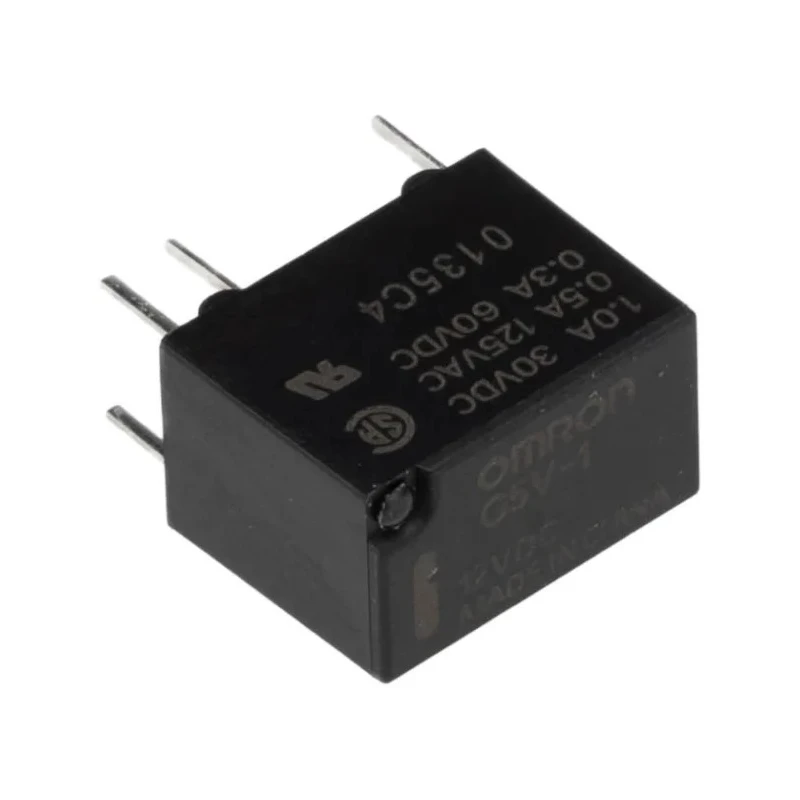

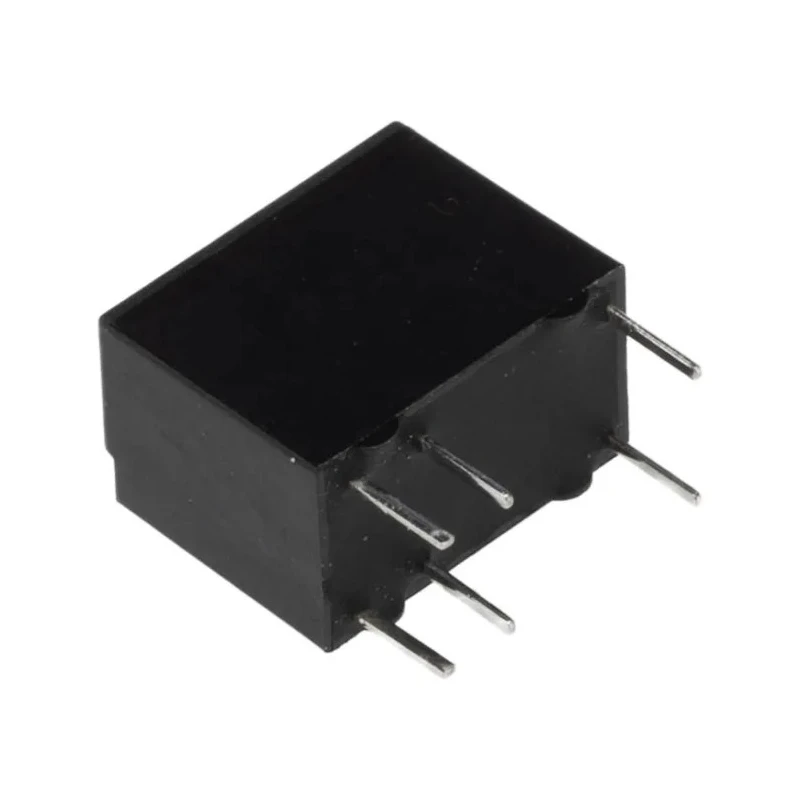

Omron PCB Signal Relay 12V DC Coil, 2A Switching Current, SPDT Contact Configuration G5V-1 DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 10mm |
| Model | G5V-1 DC12 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G5V-1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 960Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 150mW |
| G2E SPCO miniaturePCBrelay,1A 12Vdc coilBrand | Omron |
| Panasonic PCB Mount Signal Relay, 12V dc Coil, 2A Switching Current, SPDTBrand | Panasonic |
| RS PRO PCB Signal Relay, 12V dc Coil, 2A, SPDTRS Stock No. | 476-725Brand: RS PRO |
| RS PRO PCB Signal Relay, 12V dc Coil, 2A, SPDTBrand | RS PRO |
Key Features
- This relay supports a coil voltage of 12V DC ensuring reliable operation in signal circuits.
- Equipped with a single pole double throw (SPDT) contact configuration for flexible switching.
- Capable of switching up to 2A current with a maximum AC voltage of 125V and DC voltage of 60V.
- Compact PCB mount relay with dimensions 10mm x 10mm x 7.5mm for easy integration.
- Gold plated contacts provide excellent conductivity and enhanced durability.
- Operates reliably in a wide temperature range from -40°C to 70°C suitable for diverse environments.
- Coil resistance of 960 ohms with low coil power consumption of 150mW for energy efficiency.
- Contact resistance is minimized at 100 milliohms to ensure consistent switching performance.
Product Description
Omron G5V-1 DC12 PCB Signal Relay is a high-quality electrical component designed for efficient and reliable signal switching in electronic and automation systems. The relay operates with a 12V DC coil voltage and supports a switching current of 2A, featuring a single pole double throw (SPDT) contact configuration. Its compact dimensions of 10 mm height, 10 mm length, and 7.5 mm width make it ideal for PCB mounting and integration into various circuit designs.
The relay includes gold plated contacts which enhance electrical conductivity and reduce contact wear, thereby extending the relay’s operational lifetime. It can switch AC voltages up to 125V and DC voltages up to 60V, making it versatile across various signal processing tasks.
This product operates reliably across a broad temperature range from -40°C to 70°C, suitable for industrial, automotive, automation, and electrical panel applications. With a coil resistance of 960 ohms and a coil power consumption of only 150 mW, it ensures efficient energy usage within control circuits.
The contact resistance is low at 100 milliohms, ensuring stable and consistent contact during operations. It employs solder-type terminal connections that provide firm and reliable PCB affixation.
This relay’s compact size and design facilitates straightforward integration into PCBs and electrical assemblies. Gold plated contact material enhances conductivity for reliable switching performance. Capable of switching currents up to 2 amperes for a wide range of industrial uses.
Operating temperature range from -40°C to 70°C supports harsh environmental conditions. Designed to last for 100,000 electrical operations minimizing maintenance needs. Suitable for use in automation control, electronic devices, and industrial signal processing applications.
The Omron G5V-1 DC12 relay is manufactured in China and complies with RoHS standards to ensure environmental safety. It is the ideal choice for engineers and maintenance professionals seeking a dependable PCB signal relay. For those requiring high reliability and durable relay components in signal conditioning and electrical control systems, this product offers significant benefits.
Explore EnvMart's comprehensive selection of Signal Relays for industrial, automation, and electrical applications to find compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC, ensuring reliable operation in signal circuits.
This model is capable of switching up to 2A current, making it suitable for various applications.
The relay has compact dimensions of 10mm x 10mm x 7.5mm, facilitating easy integration into PCBs.
It features a single pole double throw (SPDT) contact configuration for flexible switching options.
It can switch AC voltages up to 125V and DC voltages up to 60V, providing versatility in signal processing tasks.
The contact resistance is minimized at 100 milliohms, ensuring consistent switching performance.
The coil resistance is 960 ohms with a low coil power consumption of 150mW, promoting energy efficiency.
It operates reliably in a wide temperature range from -40°C to 70°C, suitable for diverse environments.
This relay employs solder-type terminal connections, providing firm and reliable PCB affixation.
This product complies with RoHS standards, ensuring environmental safety.
It is designed to last for 100,000 electrical operations, minimizing maintenance needs over time.
This relay is suitable for use in automation control, electronic devices, and industrial signal processing applications.
