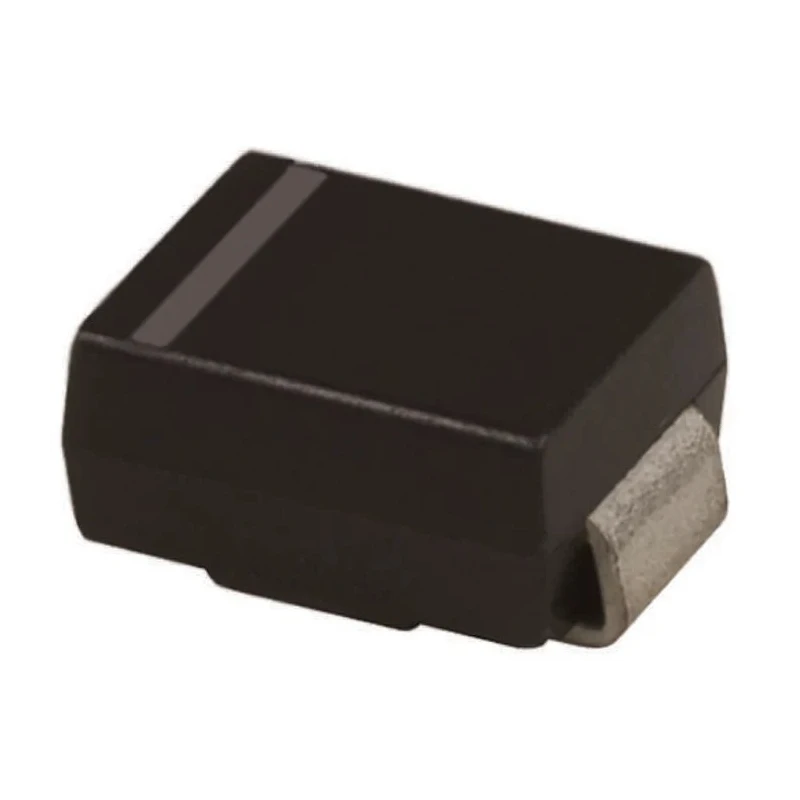

onsemi 1 kV 2 A Surface Mount Switching Rectifier Diode DO-214AA S2M
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.45mm |
| Length | 4.75mm |
| Model | S2M |
| Width | 3.95mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 1.15V |
| Peak Reverse Recovery Time trr | 2μs |
Key Features
- Surface mount rectifier diode suitable for automated assembly.
- Maximum continuous forward current of 2 amperes.
- Peak reverse repetitive voltage rating of 1 kilovolt.
- Fast switching capability with 2 microseconds peak reverse recovery time.
- Compact DO-214AA package with length 4.75 mm, width 3.95 mm, height 2.45 mm.
- Wide operating temperature range from -65°C to 150°C ensures durability.
- Maximum forward voltage drop of 1.15 volts for efficient operation.
- Peak non-repetitive forward surge current capability of 50 amperes.
Product Description
onsemi S2M is a surface mount switching rectifier diode designed for use in electronic and semiconductor applications requiring reliable diode switching and rectification. Featuring a DO-214AA package, it is optimized for automated PCB assembly.
Rated for a maximum continuous forward current of 2 A and peak reverse repetitive voltage of 1 kV, this diode operates efficiently with a maximum forward voltage of 1.15 V and fast switching times, including a peak reverse recovery time of 2 µs.
The device tolerates a wide temperature range, from -65°C to 150°C, making it suitable for industrial, laboratory, and manufacturing applications demanding rugged performance under varied environmental conditions.
Its compact size (4.75 mm length, 3.95 mm width, 2.45 mm height) facilitates space-saving PCB layouts during electronic product design. Surface mount rectifier diode suitable for automated assembly. Maximum continuous forward current of 2 amperes.
Peak reverse repetitive voltage rating of 1 kilovolt. Fast switching capability with 2 microseconds peak reverse recovery time. Compact DO-214AA package with length 4.75 mm, width 3.95 mm, height 2.45 mm. Wide operating temperature range from -65°C to 150°C ensures durability.
Maximum forward voltage drop of 1.15 volts for efficient operation. Peak non-repetitive forward surge current capability of 50 amperes. Low peak reverse current of 1 microampere enhances efficiency. No automotive certification, suitable for general industrial and electronic designs.
Commonly used across industrial electronics, telecommunications equipment, and power supply designs, the onsemi S2M diode is a reliable choice for switching and rectification tasks. Its combination of compact form factor, robust electrical ratings, and fast switching makes it ideal for laboratory, manufacturing, and commercial electronic applications.
Explore our extensive semiconductor catalog at EnvMart for compatible components and accessories.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2 amperes.
This diode has a peak reverse repetitive voltage rating of 1 kilovolt (1 kV).
The onsemi S2M diode comes in a compact DO-214AA package.
The peak reverse recovery time for this unit is 2 microseconds (2 µs).
The dimensions of this diode are 4.75 mm in length, 3.95 mm in width, and 2.45 mm in height.
The maximum forward voltage drop for the onsemi S2M is 1.15 volts.
This diode operates within a wide temperature range from -65°C to 150°C.
The peak non-repetitive forward surge current capability of this diode is 50 amperes.
The peak reverse current for this model is rated at 1 microampere (1 µA).
The onsemi S2M features a single diode configuration.
Yes, the S2M diode is designed for surface mount and is suitable for automated assembly.
This diode is commonly used in industrial electronics, telecommunications equipment, and power supply designs.
