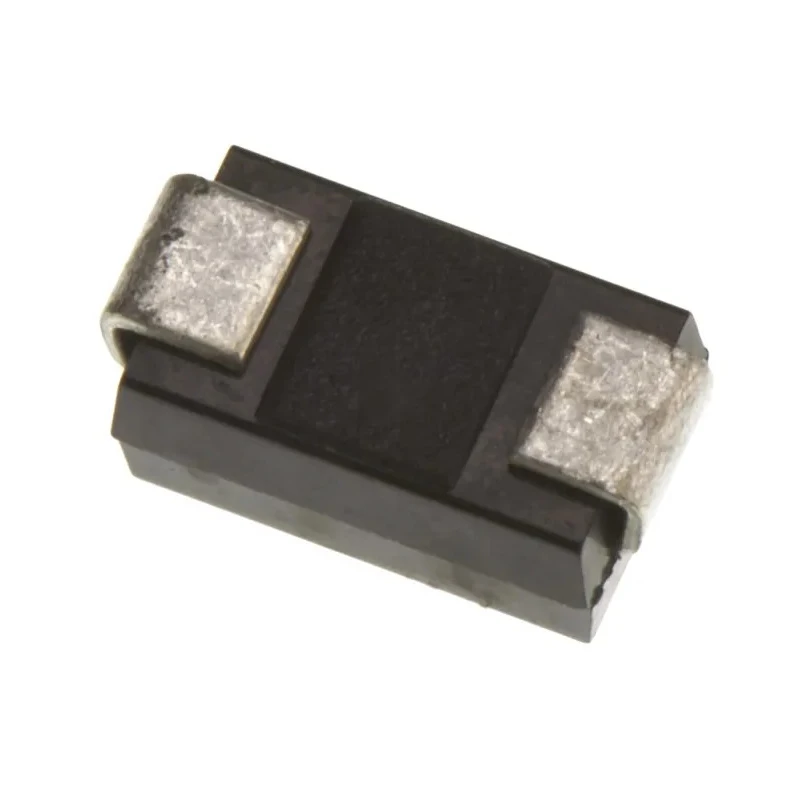

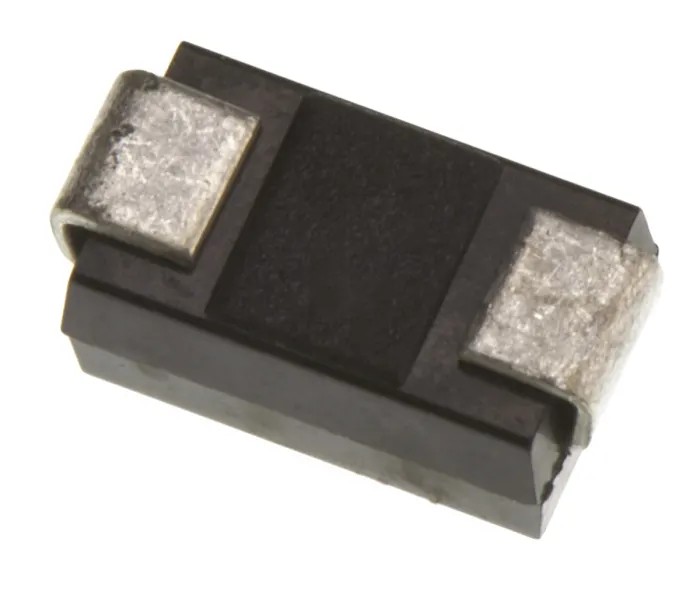

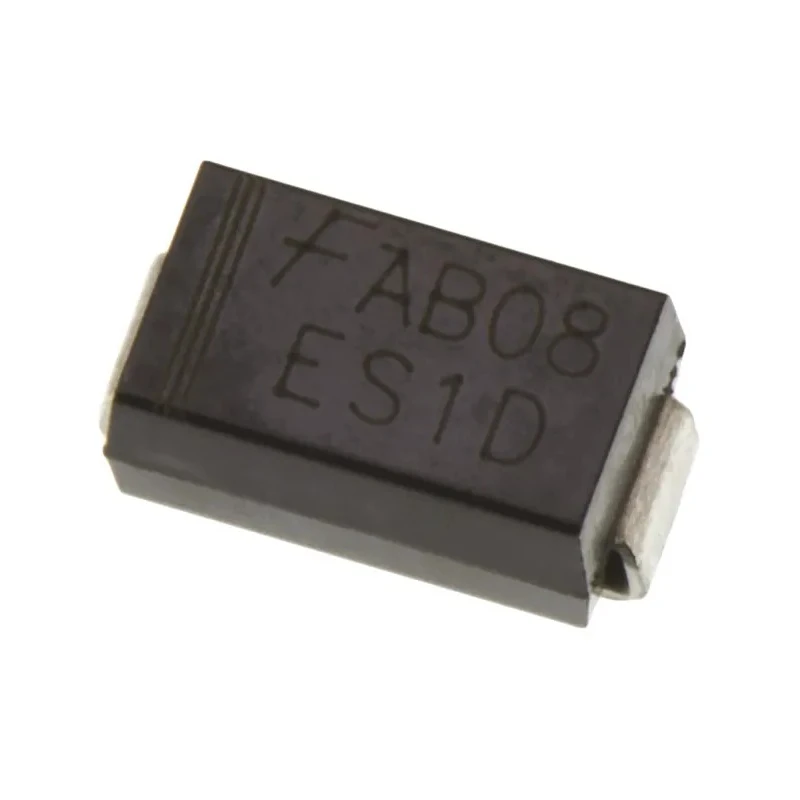

onsemi 200 V 1 A Switching Diode Surface Mount DO-214AC Package ES1D
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.2mm |
| Length | 4.75mm |
| Model | ES1D |
| Width | 2.95mm |
| Mount Type | Surface |
| Series | ES1D |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -50°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 920mV |
| Peak Reverse Recovery Time trr | 15ns |
Key Features
- Designed as a single diode for switching applications.
- Surface mount package type DO-214AC offers compact installation.
- Maximum continuous forward current rated at 1 ampere.
- Peak reverse repetitive voltage of 200 volts ensures high voltage protection.
- Low forward voltage drop of 920 millivolts improves efficiency.
- Fast recovery time of 15 nanoseconds for rapid switching.
- Wide operating temperature range from -50°C to 150°C.
- RoHS compliant with environmentally friendly standards.
Product Description
onsemi ES1D switching diode is a high-quality discrete semiconductor designed for reliable switching applications. It boasts a maximum continuous forward current rating of 1 ampere and a peak repetitive reverse voltage of 200 volts, making it suitable for diverse electronic circuits requiring efficient rectification and fast diode switching capabilities.
The diode features a surface mount DO-214AC package, providing a compact footprint for printed circuit boards and ensuring ease of automated assembly. Its low forward voltage of 920 millivolts reduces power loss and heat generation in switching operations.
With a peak reverse recovery time of only 15 nanoseconds, the ES1D diode supports rapid switching speeds vital in high-frequency electronic designs. The device is designed to operate reliably across a broad temperature range from -50°C to 150°C, suitable for industrial, automotive, and consumer electronics environments.
The diode complies with RoHS standards, ensuring it meets environmental and safety requirements. It measures 4.75 mm in length, 2.95 mm in width, and 2.2 mm in height, making it suitable for compact and space-sensitive circuit designs.
Single diode configuration optimized for switching applications. Maximum forward surge current rating of 30 amperes enhances protection against transient currents. Low leakage current with a peak reverse current of 5 microamperes.
Ideal for use in power management, rectification, and signal switching circuits in industrial and automotive systems.
The onsemi ES1D switching diode is widely used in converting, protecting, and switching electrical signals in electronic assemblies. This component supports the demanding requirements of industrial automation, power supply circuits, and other commercial electronic manufacturing applications.
Explore the broad range of semiconductor products in the EnvMart catalogue for compatible components and solutions from established brands like onsemi.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the ES1D diode is 1 ampere.
The peak reverse repetitive voltage for the ES1D diode is 200 volts.
The forward voltage drop of the onsemi ES1D is 920 millivolts.
The peak reverse recovery time of the ES1D is 15 nanoseconds.
The ES1D operates within a temperature range of -50°C to 150°C.
The ES1D diode comes in a surface mount package type DO-214AC.
The dimensions of the ES1D diode are 2.2 mm in height, 4.75 mm in length, and 2.95 mm in width.
The peak non-repetitive forward surge current rating for the ES1D is 30 amperes.
The peak reverse current of the ES1D diode is 5 microamperes.
Yes, the ES1D diode is RoHS compliant, meeting environmental and safety standards.
The ES1D uses a single diode configuration optimized for switching applications.
The ES1D diode is suitable for power management, rectification, and signal switching circuits in industrial and automotive systems.
