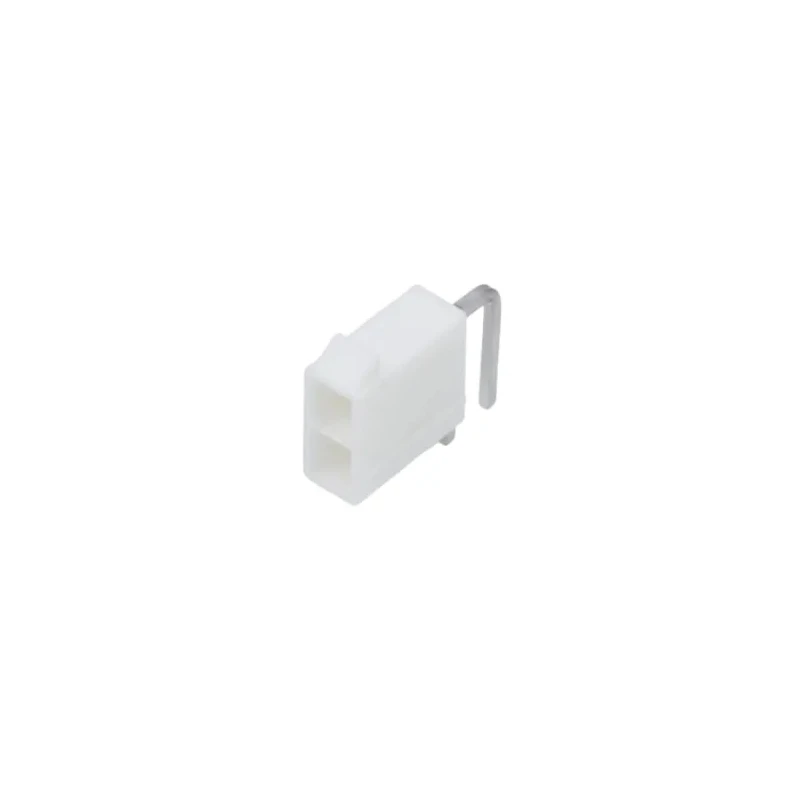

Molex 5569 Series Right Angle Through Hole PCB Header, 2 Contacts, 4.2 mm Pitch, 2 Row, Shrouded 39-30-0020
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 13 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | 5569 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Matte Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The shrouded header provides enhanced connection security.
- The connector supports a current rating of 13A and a voltage rating of 600V.
- It features brass contacts with matte tin plating for excellent conductivity and corrosion resistance.
- Designed with a dual-row and right-angle orientation for space optimization on PCBs.
- Utilizes a through-hole solder termination ensuring strong mechanical and electrical performance.
- Capable of operating in temperatures from -40°C to 105°C for robust industrial use.
- Recommended PCB thickness for optimal fit is 1.78 mm.
- Made in Mexico, suitable for automation, electrical equipment, and industrial machinery.
Product Description
Molex 39-30-0020 is a 5569 Series right angle through hole PCB header connector engineered for demanding wire-to-board applications. Featuring a 4.2 mm pitch and two contacts arranged in a dual-row shrouded design, this connector provides secure and reliable electrical connections with a 13A current rating and 600V voltage capability.
Constructed with durable nylon housing and brass contacts plated with matte tin, it ensures excellent conductivity and corrosion resistance. The through-hole termination method allows for straightforward soldering to ensure a low resistance and stable joint on printed circuit boards. Its right angle and shrouded contacts optimize PCB space while maintaining reliable connection security.
This connector operates effectively across a temperature range from -40°C to 105°C, making it suitable for a variety of industrial and electronic applications including automation systems, electrical power distribution equipment, industrial machinery, and compact consumer electronics layouts.
The recommended PCB thickness of 1.78 mm ensures a secure mechanical fit and signal integrity during operation.
Key features include the right-angle dual-row configuration for efficient space use, shrouded contacts to prevent accidental disconnection, and a high current rating suitable for power applications. The connector is manufactured in Mexico ensuring quality and consistency.
The shrouded header design enhances electrical connection security. Dual-row layout supports two electrical circuits efficiently. Brass contact material with matte tin plating offers durability and corrosion resistance. Through-hole solder termination provides strong and reliable joints.
High current rating of 13A accommodates demanding power applications. Wide operating temperature range from -40°C to 105°C for versatility. Ideal for automation, electrical equipment, industrial, and consumer electronics use.
Explore related PCB Headers and connectors within EnvMart's Electronics & Electricals category for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 13A and a voltage rating of 600V, making it suitable for various power applications.
The pitch size of this PCB header is 4.2 mm, allowing for efficient spacing on printed circuit boards.
The recommended PCB thickness for this connector is 1.78 mm, ensuring a secure mechanical fit and signal integrity during operation.
It features a nylon housing and brass contacts plated with matte tin, which provides excellent conductivity and corrosion resistance.
This PCB header operates effectively across a temperature range from -40°C to 105°C, suitable for various industrial applications.
This model has 2 contacts arranged in a dual-row configuration, enhancing its capability for connecting multiple circuits.
It utilizes a through-hole solder termination method, allowing for straightforward soldering to printed circuit boards for reliable connections.
This header is shrouded, which enhances connection security and helps prevent accidental disconnection.
The orientation of this connector is right angle, which optimizes space on the PCB while maintaining a secure connection.
It is suitable for automation systems, electrical power distribution equipment, industrial machinery, and compact consumer electronics layouts.
This model is manufactured in Mexico, ensuring quality and consistency in production.
This header is designed for wire-to-board applications, facilitating secure electrical connections between wires and printed circuit boards.
