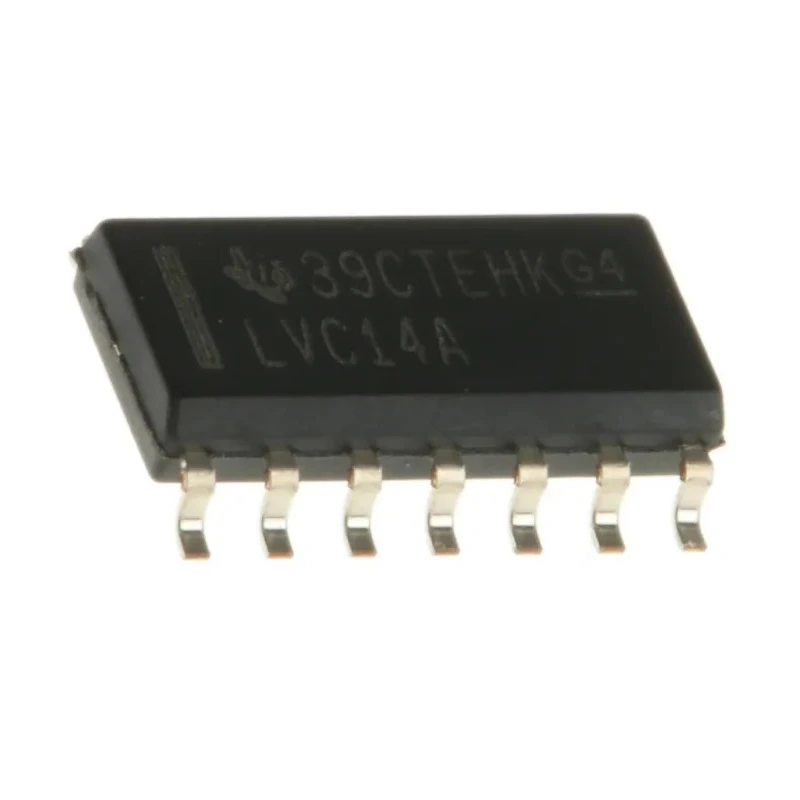

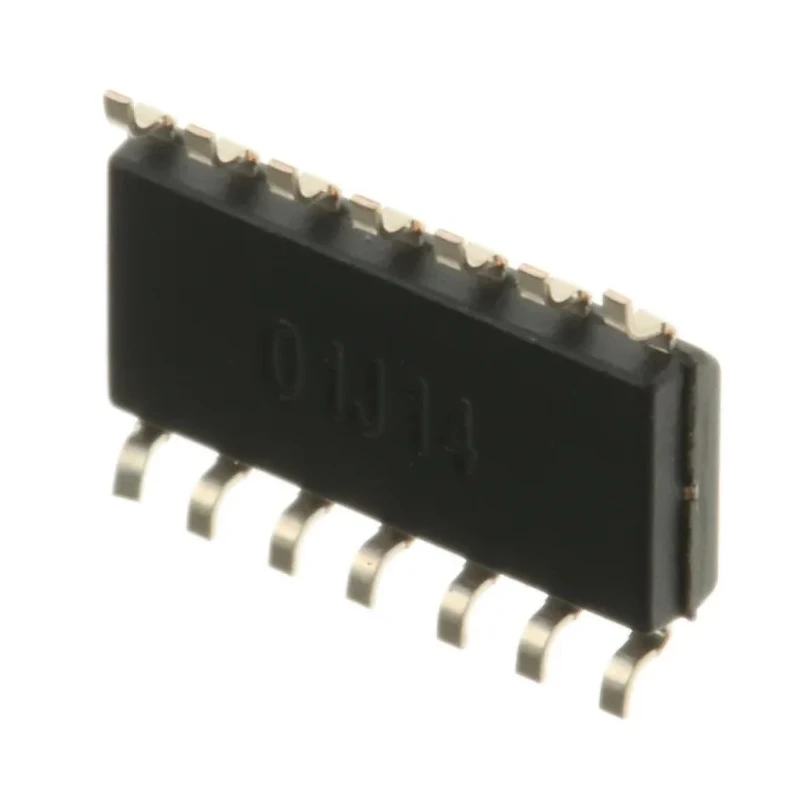

Texas Instruments Schmitt Trigger Input CMOS Inverter 6 Elements, 14-Pin SOIC SN74LVC14AD

Texas Instruments SN74LVC14AD is a CMOS Inverter integrated circuit featuring six Schmitt trigger input inverter elements in a 14-pin SOIC package. Designed to operate efficiently at low voltage supply ranging from 1.65V to 3.6V, it offers reduced power consumption compared to traditional 5V logic systems.

The device incorporates Schmitt trigger inputs which significantly improve noise immunity and provide clean switching signals, making it ideal for industrial, laboratory, and electronic control systems where signal integrity is crucial. It supports LVTTL and TTL-compatible inputs with LVCMOS outputs, allowing flexible interfacing with other logic devices.

With a maximum propagation delay of 9.5 nanoseconds, the SN74LVC14AD ensures fast switching performance for high-speed digital applications including automation controls, embedded systems, and instrumentation. The push pull CMOS output stage delivers strong output drive currents, capable of sourcing and sinking up to 24mA.

Its 14-pin SOIC surface mount package with dimensions 8.65mm length, 3.91mm width, and 1.58mm height facilitates easy PCB mounting while maintaining a compact footprint. The device is rated for wide temperature operation from -40°C to 125°C, suitable for harsh industrial environments and aerospace or automotive electronics not requiring explicit automotive qualification.

Operates at 1.65 to 3.6V supply voltage for low power consumption. Contains 6 Schmitt trigger input CMOS inverter elements per chip. Push pull CMOS output provides balanced drive strength. Fast propagation delay time of 9.5ns for rapid response.

Surface mount SOIC package with 14 pins supports automated assembly. Wide temperature range from -40°C to 125°C ensures reliability. Compatible with LVTTL/TTL input and LVCMOS output logic families. Compact physical dimensions allow efficient board space utilization.

This Texas Instruments SN74LVC14AD CMOS inverter IC is suitable for a broad range of industrial, laboratory, and electronics manufacturing applications. It is especially useful in signal conditioning circuits where noise immunity provided by the Schmitt trigger inputs is essential.
