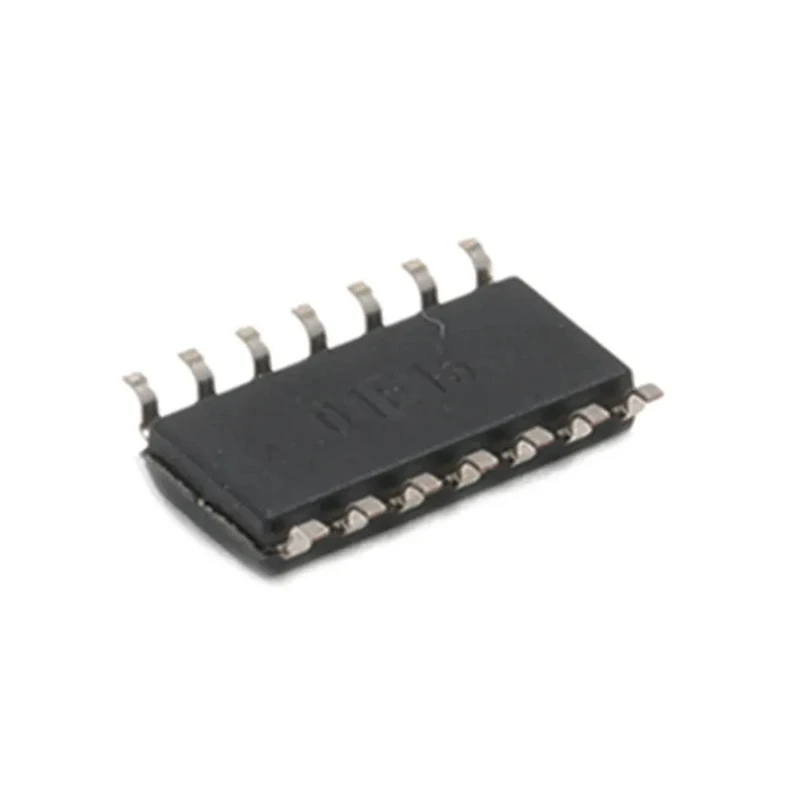

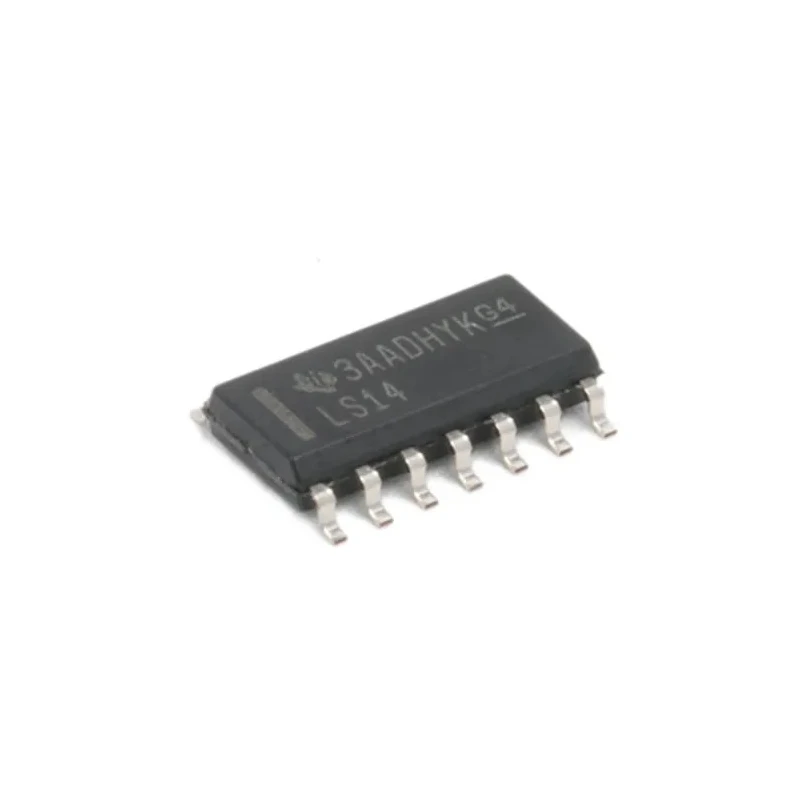

Texas Instruments Schmitt Trigger Input Inverter 6 Elements, 14-Pin SOIC SN74LS14D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | SN74LS14D |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | SN74LS14 |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | LS |
| Logic Function | Inverter |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.4mA |
| Maximum Propagation Delay Time @ CL | 22ns |
| Maximum Low Level Output Current | 8mA |
Key Features
- Includes 6 inverter elements with Schmitt trigger input for improved noise immunity.
- Operates with a supply voltage ranging from 4.75 V to 5.25 V.
- Maximum propagation delay of 22 nanoseconds at capacitive load.
- Surface mount device in SOIC package with 14 pins for compact mounting.
- Designed for operation temperature range between 0°C and 70°C.
- Supports low power consumption with maximum high-level output current of -0.4 mA.
- Compatible with the LS logic family using bipolar junction technology.
- No automotive or special approvals, suitable for general industrial electronic applications.
Product Description
Texas Instruments SN74LS14D inverter integrated circuit includes 6 Schmitt trigger input elements packaged in a 14-pin SOIC form factor. This inverter IC from the 74LS family utilizes bipolar junction technology combined with Schottky diode clamps to provide high operating speeds with low power consumption. It is designed for surface mounting on printed circuit boards and is ideal for low power, high-speed logic operations in industrial electronic systems.
The device operates at supply voltages from 4.75 V to 5.25 V, maintaining a stable logic output with a maximum propagation delay of 22 ns at the specified load. The Schmitt trigger input enhances noise immunity, making it reliable in environments with electrical noise interference. It is rated for operating temperatures from 0°C to 70°C, suitable for standard industrial temperature ranges.
Physical dimensions of 8.65 mm length, 3.91 mm width, and 1.58 mm height ensure a compact footprint. It features 14 pins on an SOIC surface mount package, enabling efficient PCB layout and automated assembly. The IC supports maximum low-level output current of 8 mA and maximum high-level output current of -0.4 mA aligned with typical LS logic family characteristics.
This product is not automotive standard certified but is well-suited for a variety of industrial electronics, power control, instrumentation, and semiconductor applications. It is supplied new and guaranteed for quality and authenticity as a Texas Instruments branded reliable semiconductor component.
Includes 6 inverter elements with Schmitt trigger input for noise immunity. Operates with supply voltage range of 4.75 V to 5.25 V. Maximum propagation delay time of 22 ns at capacitive load. 14-pin SOIC surface mount package ensures compact design.
Operating temperature range from 0°C to 70°C. Minimum power consumption characteristic of 74LS family logic. Dimensions: length 8.65 mm, width 3.91 mm, height 1.58 mm. Suitable for industrial electronics and semiconductor applications.
Explore more Texas Instruments semiconductor products and inverters at EnvMart for your high-performance electronic component needs.
Explore more products in our Inverter ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 4.75 V to 5.25 V.
The maximum propagation delay time is 22 nanoseconds at the specified capacitive load.
It is rated for an operating temperature range from 0°C to 70°C.
This model includes 6 inverter elements with Schmitt trigger input.
The dimensions are 8.65 mm in length, 3.91 mm in width, and 1.58 mm in height.
The maximum low-level output current is 8 mA.
It is packaged in a 14-pin SOIC surface mount configuration.
Yes, it is compatible with the LS logic family using bipolar junction technology.
The maximum high-level output current is -0.4 mA.
It is suitable for general industrial electronic applications, power control, instrumentation, and semiconductor uses.
This model utilizes Schmitt trigger input for enhanced noise immunity and Schottky diode clamps for high-speed operation.
The country of origin is India.
