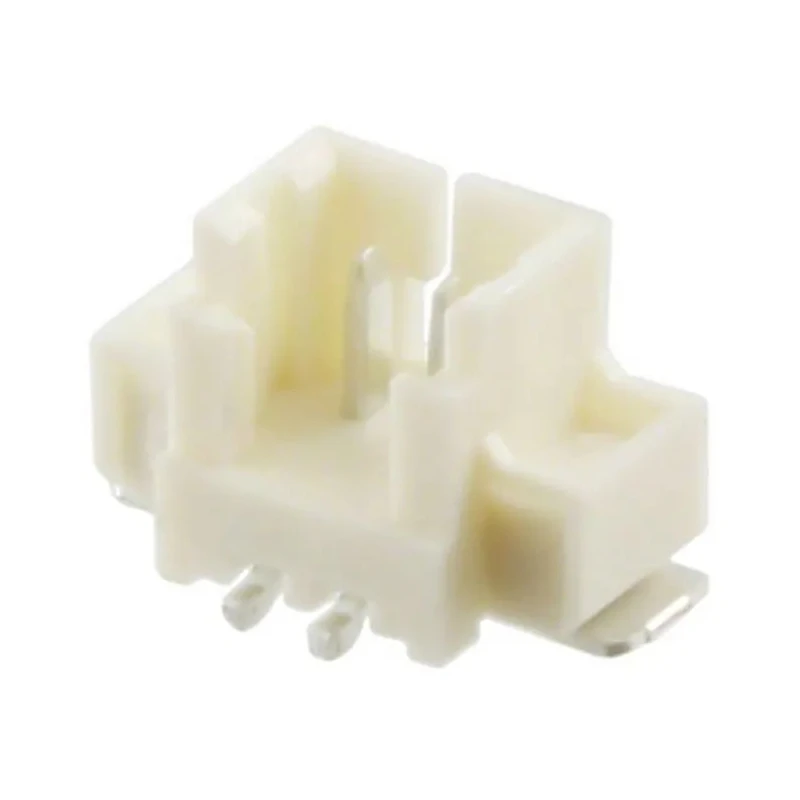

Molex PicoBlade Series Straight Surface PCB Header 2 Contacts 1.25mm Pitch Nylon Housing 125V 1A 53398-0271

Molex 53398-0271 PicoBlade Series Straight Surface PCB Header features a compact 1.25mm pitch with 2 contacts and a single row configuration to securely connect wires to printed circuit boards (PCBs). The product uses a durable nylon housing which provides chemical and wear resistance, making it suitable for demanding electronic and industrial use cases.

The gold-standard phosphor bronze contact material combined with tin plating ensures reliable electrical conductivity and corrosion resistance, providing long-lasting performance. The 53398-0271 model is shrouded to protect the contacts from damage and reduce electrical noise, thus ensuring more stable transmissions especially in busy electronic environments.

Its solder termination type and surface mount design offer a strong mechanical and electrical connection on the PCB, reinforced by solder tabs that act as strain relief to prevent joint cracking. Additionally, the friction lock mechanism provides secure mating, preventing accidental disconnections due to vibrations or handling.

Operating in a broad temperature range of -40°C to 105°C, this Molex header suits various industrial, electronic manufacturing, smart metering, security systems, and electric test equipment applications. It supports a current rating of 1 ampere at 125 volts, making it apt for both power and data signals within compact PCB layouts.

Compact 1.25 mm pitch minimizes PCB footprint. Nylon housing provides chemical and mechanical durability. Phosphor bronze contacts with tin plating enhance conductivity and corrosion resistance. Shrouded design protects contacts and reduces electrical interference.

Solder termination with strain relief tabs increases joint reliability. Friction lock mechanism ensures secure mating and vibration resistance. Wide operating temperature range suitable for industrial conditions. Suitable for use in electric test equipment, security, and smart meters.

Supports 1 amp current at 125 volts for reliable signal and power transmission. Explore more Molex PCB connectors and headers on EnvMart for high-performance, durable interconnection solutions in demanding electronics industries.
