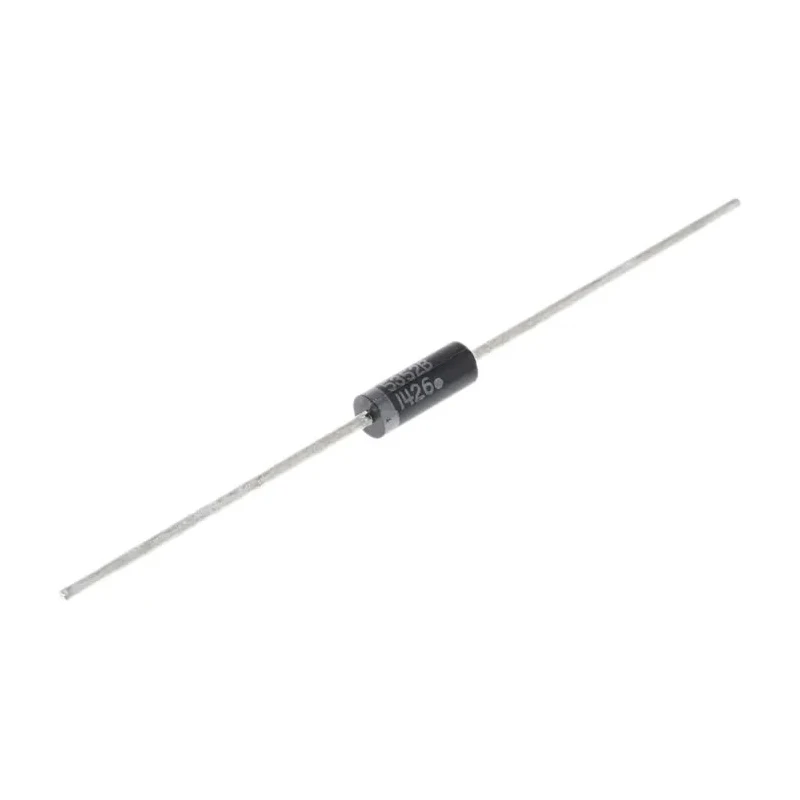

onsemi 15 V 5 W Zener Diode, Single, 5% Tolerance, Through Hole 2-Pin DO-15 1N5352BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5352BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 75mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 15V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2.5Ω |
Key Features
- Axial-lead dual pin with DO-15 package for through hole mounting.
- Nominal Zener voltage of 15 volts with a 5% tolerance.
- Maximum power dissipation rating of 5 watts for reliable voltage regulation.
- Thermosetting plastic package ensures corrosion resistance and durable use.
- Operating temperature range from -65°C to 200°C for industrial applications.
- Maximum Zener impedance of 2.5 ohms supporting stable voltage characteristics.
- Maximum reverse leakage current of 1 microampere ensuring minimal leakage.
- Test current rating of 75 mA for performance verification.
Product Description
onsemi 1N5352BRLG Zener Diode is a high-reliability single Zener diode intended for voltage regulation and protection applications.
This device features a nominal Zener voltage of 15 V with a tolerance of 5%, capable of handling power dissipation up to 5 W through its DO-15 axial-lead package designed for through hole mounting.
The diode construction utilizes Surmetic™ 40 technology with a molded thermosetting plastic package that is void-free and corrosion resistant, enhancing device durability and stability in harsh industrial and electronic applications.
The device operates reliably over a wide temperature range from -65°C to 200°C, supporting performance in automotive, industrial, and manufacturing environments. The tight voltage regulation is ensured by its maximum Zener impedance of 2.5 Ω and test current of 75 mA.
Its low maximum reverse leakage current of 1 μA reduces unwanted current flow and power loss, making it reliable for sensitive circuits. The 2-pin through hole configuration facilitates easy PCB mounting and soldering in electronic assemblies.
Typical use cases include industrial electronics, power supplies, voltage stabilization circuits, over-voltage protection, and electronic control modules where stable reference voltage is critical.
Axial-lead, thermosetting plastic DO-15 package with corrosion resistance. Voltage regulator Zener diode with 5 W power dissipation. 15 V nominal voltage with ±5% tolerance for accuracy. Wide operating temperature range suitable for harsh industrial environments.
Minimal reverse leakage current of 1 μA for efficiency. Set contains one unit of onsemi 1N5352BRLG Zener Diode. Browse the Electronics & Electricals category for more semiconductor components and discrete semiconductors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 15 volts with a tolerance of 5%.
It has a maximum power dissipation rating of 5 watts, allowing for reliable voltage regulation.
The operating temperature range is from -65°C to 200°C, making it suitable for harsh industrial applications.
The maximum reverse leakage current is 1 microampere, which helps minimize unwanted current flow.
This diode uses a DO-15 package type designed for through hole mounting.
The maximum Zener impedance is 2.5 ohms, which supports stable voltage characteristics.
The test current rating for this model is 75 mA, used for performance verification.
This diode has 2 pins, suitable for through hole mounting on PCBs.
The height of the diode is 3.68 mm and the length is 8.89 mm.
This Zener diode is suitable for applications such as voltage stabilization circuits, over-voltage protection, and electronic control modules.
The country of origin for this product is India.
This model features a single diode configuration, intended for voltage regulation and protection applications.
