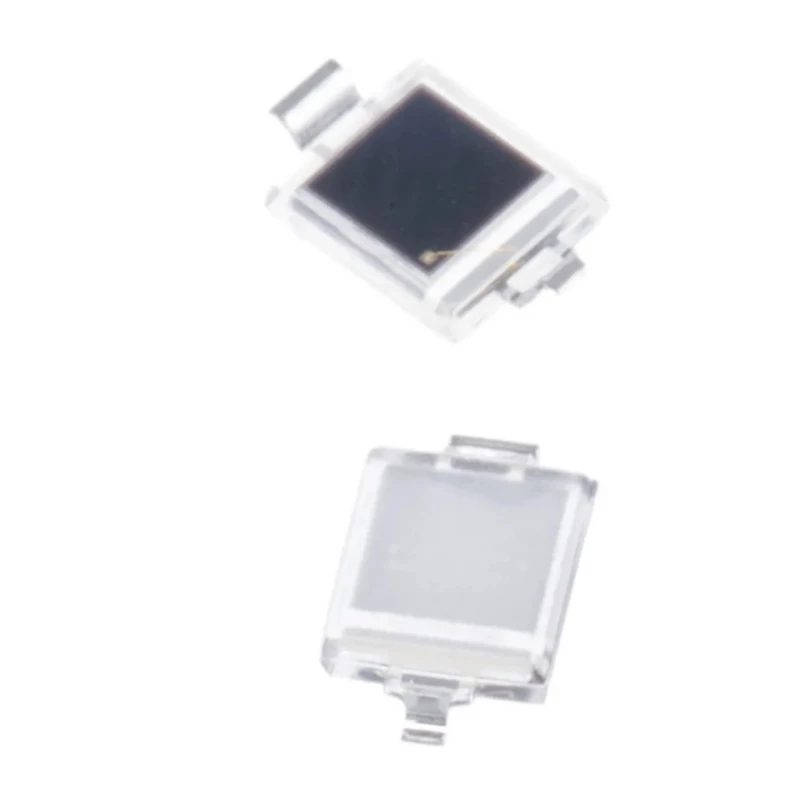

ams OSRAM Visible Light Infrared Photodiode 2 Pins, Surface DIP Package, 60 ° Half Sensitivity Angle BPW 34 SR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Height | 1.2mm |
| Length | 4.5mm |
| Model | BPW 34 SR |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Surface |
| Short Circuit Current | 25μA |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Reverse |
| Dark Current | 2nA |
| Open Circuit Voltage | 330mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 20ns |
| Wavelength of Peak Sensitivity | 850nm |
| Spectrums Detected | Visible Light, Infrared |
| Breakdown Voltage | 16V |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 60 ° |
Key Features
- Detects both visible light and infrared spectrums.
- Peak sensitivity wavelength at 850 nm ensures precise detection.
- Compact surface mount DIP package with 2 pins for easy PCB integration.
- Operates reliably between -40°C and 100°C temperature range.
- Low dark current of 2 nA providing high sensitivity in low light conditions.
- Features a sensitive area of 2.65 x 2.65 mm² optimized for radiant light detection.
- Typical rise and fall times of 20 ns offer rapid response for high-speed applications.
- Breakdown voltage rated at 16 V with an open circuit voltage of 330 mV.
Product Description
ams OSRAM BPW 34 SR Visible Light Infrared Photodiode is a high precision PIN photodiode designed for detecting both visible and infrared light, making it suitable for various optical sensing and electronic applications.
This photodiode features a surface mount DIP (Dual In-line Package) with 2 pins and a sensitive radiant area of 2.65 x 2.65 mm², optimizing radiant light collection. The device is engineered to operate efficiently over a wide temperature range from -40°C up to 100°C, ensuring robust performance in industrial, commercial, and laboratory environments.
The BPW 34 SR photodiode has a peak wavelength sensitivity at 850 nm with a wavelength detection range from 400nm to 1100nm, suitable for visible and near-infrared spectrum detection. With an angle of half sensitivity of 60°, it maintains a wide field of view for light detection.
Technical features include typical rise and fall times of 20 ns, a breakdown voltage of 16 V, open circuit voltage of 330 mV, and a remarkably low dark current of 2 nA, assuring high accuracy and rapid response in signal detection. The device complies with RoHS environmental standards, making it a sustainable choice.
Detects visible and infrared light spectrums. Compact and reliable surface DIP package. Wide operating temperature range from -40°C to 100°C. Fast response times ideal for high-speed applications. Low dark current ensures sensitive and accurate detection.
Robust performance with breakdown voltage of 16V and open circuit voltage of 330mV. Environmentally compliant with RoHS certification. Reverse polarity design for effective photodiode operation. Short circuit current rated at 25 μA for dependable use.
Radiant sensitive area of 2.65 x 2.65 mm² optimized for precise detection.
This photodiode is widely applicable in industrial automation, sensor systems, instrumentation, and signal processing devices where visible and infrared light detection is required.
Explore the extensive range of Photodiodes in the Electronics Components category at EnvMart for diverse optical sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensitivity wavelength of the BPW 34 SR photodiode is 850 nm, ensuring precise detection of light.
It operates reliably between -40°C and 100°C, making it suitable for various environments.
The sensitive area measures 2.65 x 2.65 mm², optimized for effective radiant light detection.
The typical rise and fall times for the BPW 34 SR are both 20 ns, allowing for rapid response in high-speed applications.
The breakdown voltage is rated at 16 V, providing a robust operational limit for the device.
It comes in a surface mount DIP (Dual In-line Package) configuration with 2 pins for easy integration into PCBs.
The dark current is rated at 2 nA, which contributes to its high sensitivity in low light conditions.
It can detect wavelengths ranging from 400 nm to 1100 nm, covering both visible and infrared light spectrums.
The short circuit current is rated at 25 μA, ensuring dependable performance during operation.
Yes, the BPW 34 SR photodiode complies with RoHS environmental standards, making it a sustainable choice.
The angle of half sensitivity is 60°, providing a wide field of view for light detection.
This photodiode is widely applicable in industrial automation, sensor systems, instrumentation, and signal processing devices.
