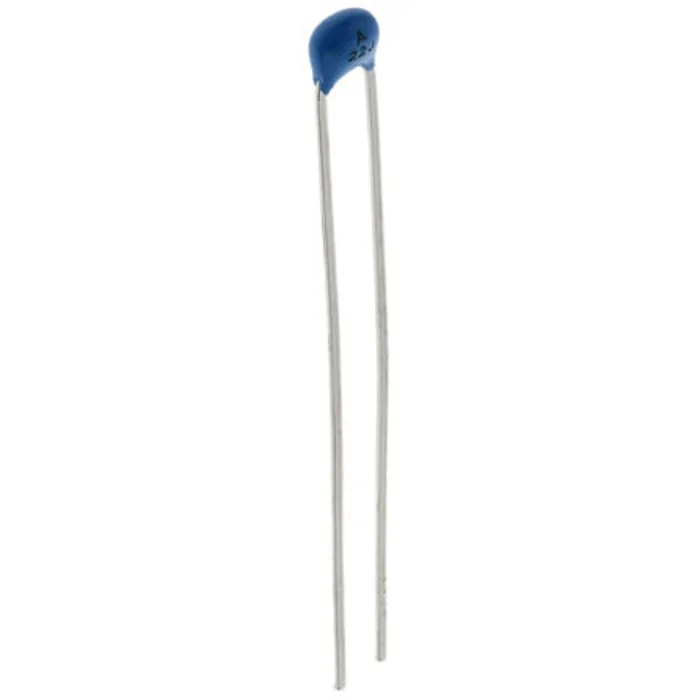

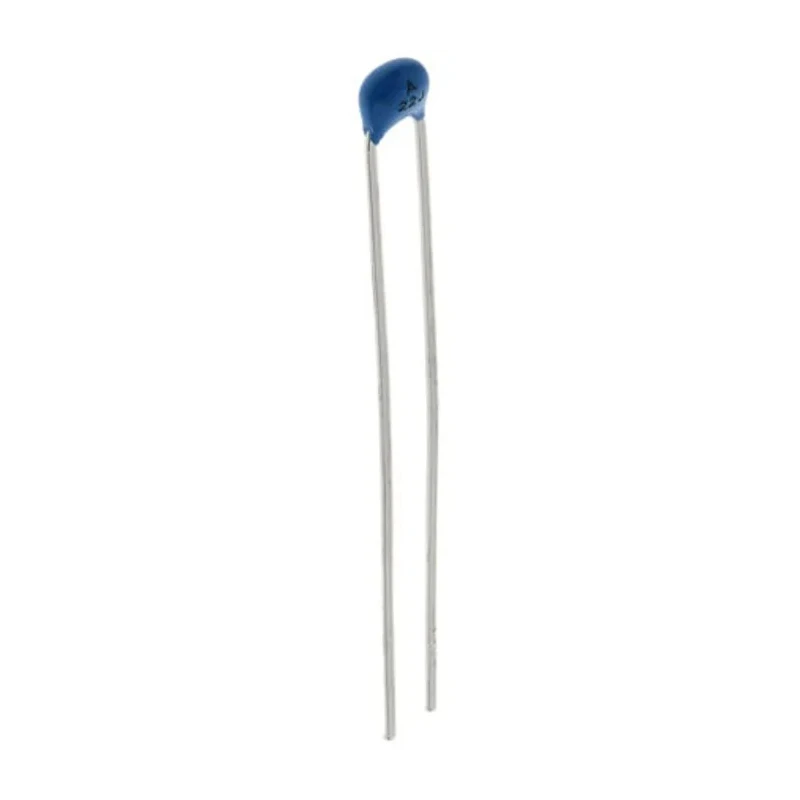

Murata 22 pF Multilayer Ceramic Capacitor 100V DC ±5 % Tolerance Through Hole Solder RCE5C2A220J0A2H03B

Murata RCE5C2A220J0A2H03B is a high-quality multilayer ceramic capacitor designed with a capacitance of 22 pF, suitable for automotive and industrial electronic control units. Its 100V DC rating and ±5% tolerance ensure precise and reliable operation in demanding applications.

The capacitor employs a C0G (NP0) dielectric, offering high stability and low losses, making it ideal for filtering, timing, and sample and hold circuits where accuracy is critical. The product meets automotive AEC-Q200 standards and ISO7637-2 surge test, making it well-suited for automotive electronics requiring surge protection and noise reduction.

Its compact size with dimensions 3.6 mm (length) × 3.5 mm (width) × 2.5 mm (height) and 2.5 mm lead spacing allows for easy installation on printed circuit boards via through hole solder mounting. The 0.5 mm lead diameter ensures robust mechanical and electrical connections, with an option to replace the solder coated Fe lead wire with Cu if required.

This capacitor is conformally coated and complies with RoHS, ISO, and REACH standards, reflecting environmental responsibility. The operating temperature spans from -55°C to 125°C to accommodate a wide range of industrial and automotive environments.

Applications include smoothing power supplies, noise reduction, surge protection, and timing circuits in automotive electronics, industrial machinery, and other precision electronic instruments.

The capacitor features a C0G dielectric known for stable and predictable characteristics over temperature and time. It complies with automotive standards including AEC-Q200 and ISO7637-2 surge test requirements. Operating temperature ranges from -55°C to 125°C, ensuring durability in harsh environments.

Compact dimensions of 3.6 mm length, 3.5 mm width, and 2.5 mm height with 2.5 mm lead spacing for easy integration. Through hole mount type with solder termination ensures reliable electrical connections. Lead diameter of 0.5 mm made of solder-coated Fe material with an option for Cu lead wire replacement.

Conformally coated and RoHS, ISO, REACH compliant for environmental safety. Explore more Multilayer Ceramic Capacitors and electronic components at EnvMart for your industrial, automotive, and manufacturing needs.
