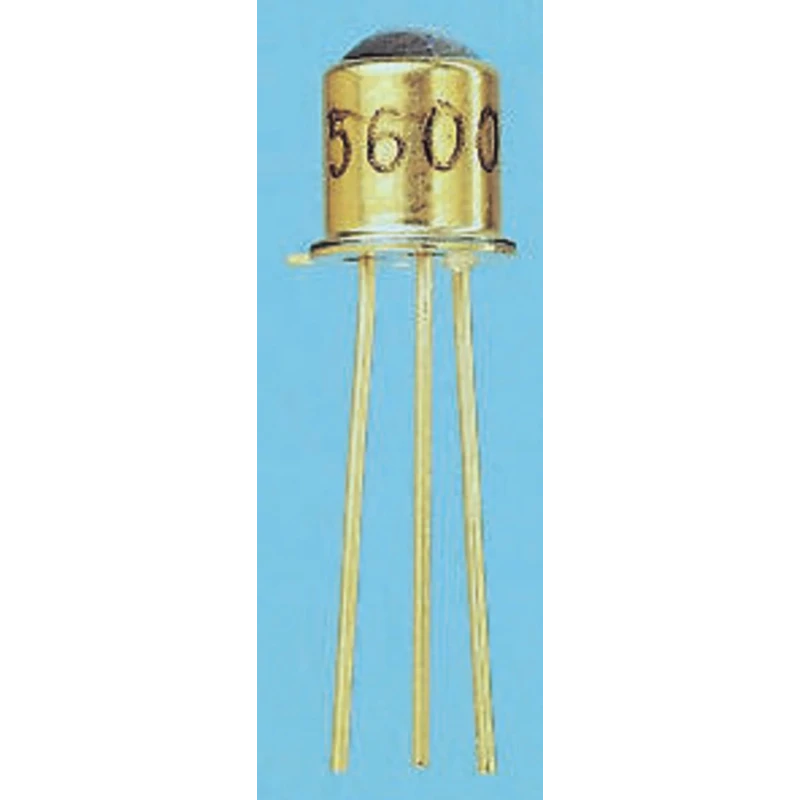

ams OSRAM Visible Light and Infrared Phototransistor 3-Pin Through Hole TO-18 Package TO18
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4.1mm |
| Brand | ams OSRAM |
| Height | 3.6mm |
| Length | 5.5mm |
| Model | TO18 |
| Width | 5.5mm |
| Mount Type | Through Hole |
| Series | Metal Can TO18 |
| Maximum Operating Temperature | 80°C |
| Package Type | TO-18 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Typical Fall Time | 12μs |
| Peak Wavelength | 850nm |
| Spectrums Detected | Visible Light, Infrared |
| Angle of Half Sensitivity | 110 ° |
| Collector Current | 100mA |
| Maximum Light Current | 950μA |
| Maximum Dark Current | 50nA |
| Collector Emitter Voltage | 35V |
| Emitter Collector Voltage | 7V |
Key Features
- Features a wide 110° angle of half sensitivity for broad detection coverage.
- Operates efficiently between -40°C and 80°C temperature range.
- Has a peak wavelength of 850nm suited for visible and infrared applications.
- Maximum collector current up to 100mA with a maximum light current of 950μA.
- Encased in a robust metal can TO-18 package ensuring durability in hostile environments.
- Provides fast response with typical rise and fall times of 12μs.
- Compact dimensions with 5.5mm length and width, and 4.1mm diameter.
- Complies with RoHS standards for environmental safety.
Product Description
ams OSRAM presents the BP 103-3/4 phototransistor featuring a sturdy metal can TO-18 package design. This NPN phototransistor detects both visible light and infrared spectrums with a peak wavelength of 850nm, making it highly suitable for precision optical sensing applications in electronics.
The component's 3-pin through hole mount allows for straightforward PCB integration. Its wide angle of half sensitivity of 110° ensures broad detection coverage, essential for various industrial and consumer electronics uses.
Operating reliably within a temperature range of -40°C to 80°C, this phototransistor is capable of enduring harsh environments while maintaining performance. Its maximum collector current rating of 100mA and typical light current of 950μA support efficient and responsive detection.
The device exhibits fast switching behavior with typical rise and fall times of just 12 microseconds, ideal for applications requiring quick optical responses. Its metal can package not only enhances protection against environmental factors but also improves heat dissipation.
Wide 110° angle of half sensitivity for effective light detection. Durable metal can TO-18 package suitable for hostile environments. Fast response times ensuring precision detection. Compliance with RoHS environmental standards ensures safe use.
Compact package dimensions for flexible design integration. Operates reliably across a wide temperature range. Detects both visible and infrared light spectrums effectively. Through hole mount facilitates secure and stable PCB assembly.
This ams OSRAM phototransistor is ideal for use in electronic, industrial, and instrumentation applications requiring accurate light sensing and fast response. Its precision and robust packaging make it suitable for manufacturing, automation, and research laboratory environments.
Explore EnvMart's wide selection of Phototransistors and optoelectronic components for high-quality industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this phototransistor is 850nm, making it suitable for detecting both visible light and infrared applications.
The maximum collector current for this model is 100mA, allowing it to handle significant light detection tasks efficiently.
It features a wide angle of half sensitivity of 110°, providing broad detection coverage for various applications.
This phototransistor operates reliably within a temperature range of -40°C to 80°C, suitable for harsh environments.
The TO-18 package has a diameter of 4.1mm, a length of 5.5mm, and a width of 5.5mm, making it compact for design integration.
The device exhibits typical rise and fall times of 12μs, ensuring quick optical response for precision applications.
It utilizes a through hole mount type, facilitating secure and stable PCB assembly.
This model complies with RoHS standards, ensuring environmental safety in its use.
This phototransistor has 3 pins, allowing for straightforward integration into electronic circuits.
The maximum light current for this phototransistor is 950μA, which supports efficient light detection.
This phototransistor can detect both visible light and infrared spectrums, making it versatile for various applications.
The country of origin for this phototransistor is India.
