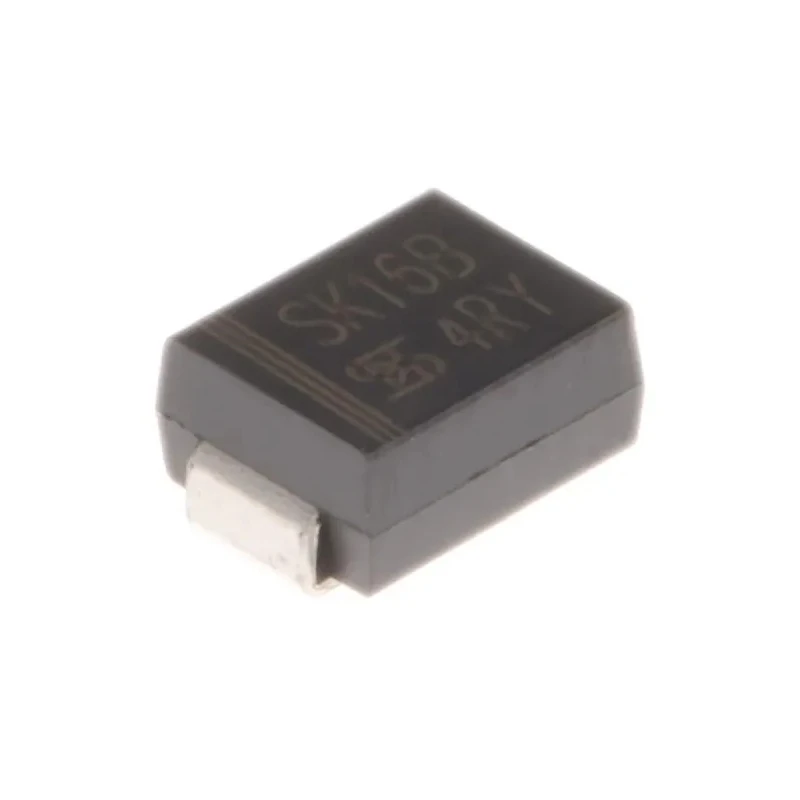

Taiwan Semiconductor 60 V 1 A Surface Mount Schottky Diode DO-214AA SK16B R4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.41mm |
| Length | 4.75mm |
| Model | SK16B R4 |
| Width | 3.73mm |
| Mount Type | Surface |
| Series | SK16B |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.75V |
Key Features
- Single diode configuration for rectification applications.
- Maximum continuous forward current of 1 ampere.
- Peak reverse repetitive voltage of 60 volts.
- Low maximum forward voltage drop of 0.75 volts.
- Wide operating temperature range from -55 to 150 degrees Celsius.
- Compact DO-214AA surface mount package with dimensions 4.75 x 3.73 x 2.41 mm.
- High surge current capability of 30 amperes peak forward surge.
- Reliable low peak reverse current of 500 microamperes.
Product Description
Taiwan Semiconductor SK16B R4 is a surface mount Schottky diode designed for efficient low voltage rectification in electronic circuits. It features a 60 V peak reverse voltage and 1 A continuous forward current in a compact DO-214AA package measuring 4.75 mm length, 3.73 mm width, and 2.41 mm height. This single configuration diode provides a maximum forward voltage drop of 0.75 V, minimizing power loss and heat generation.
The device operates reliably over a broad temperature range from -55°C to 150°C, making it suitable for industrial, power management, and consumer electronic applications where temperature variation may be significant. Its high surge forward current of 30 A enables it to tolerate transient loads effectively.
Typical applications include switching power supplies, voltage clamping, and general-purpose rectification where low forward voltage and fast switching are critical. The 2-pin surface mount design offers ease of integration on PCBs for compact and efficient electronic assemblies.
This diode is RoHS compliant and free of hazardous substances, meeting environmental requirements for modern electronic component manufacturing. It does not carry automotive or other specialized certifications.
Single Schottky Diode with 1 A continuous forward current. Rated for 60 V peak reverse repetitive voltage. Low forward voltage drop reduces power dissipation. High surge forward current up to 30 A. Wide operating temperature from -55°C to 150°C.
Surface mount DO-214AA package for compact PCB design. Reliable electrical performance for industrial electronics. No special automotive or industry approvals. Ideal for power supply rectification and voltage protection.
RoHS compliant and environmentally friendly. Explore our wide range of semiconductor and diode products at EnvMart for dependable electronic components used across industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1 ampere.
This Schottky diode is rated for a peak reverse repetitive voltage of 60 volts.
It has a maximum forward voltage drop of 0.75 volts, which helps minimize power loss.
The dimensions of the DO-214AA package are 4.75 mm in length, 3.73 mm in width, and 2.41 mm in height.
The operating temperature range for this model is from -55°C to 150°C.
This diode can handle a peak non-repetitive forward surge current of up to 30 amperes.
It features a single diode configuration designed for rectification applications.
The maximum peak reverse current for this diode is 500 microamperes.
Yes, this Schottky diode is RoHS compliant and free of hazardous substances.
Typical applications include switching power supplies, voltage clamping, and general-purpose rectification.
This diode has a pin count of 2, suitable for surface mount configurations.
This model belongs to the SK16B series of Schottky diodes.
