Omron KSI Series Solid State Relay 25A Load Panel Mount 280V AC Load 32V DC Control KSI240D25-L

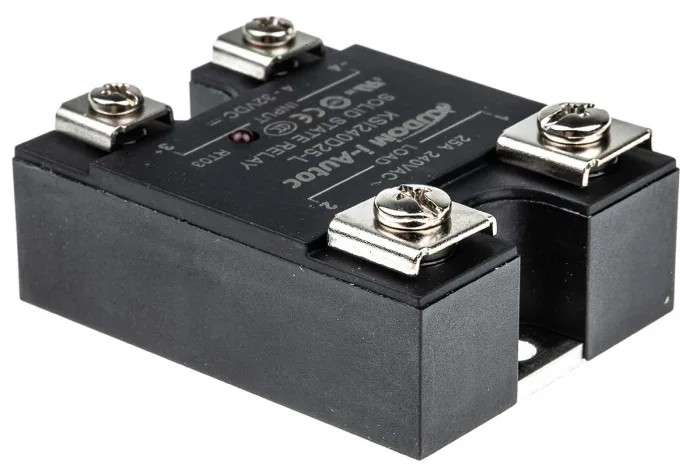

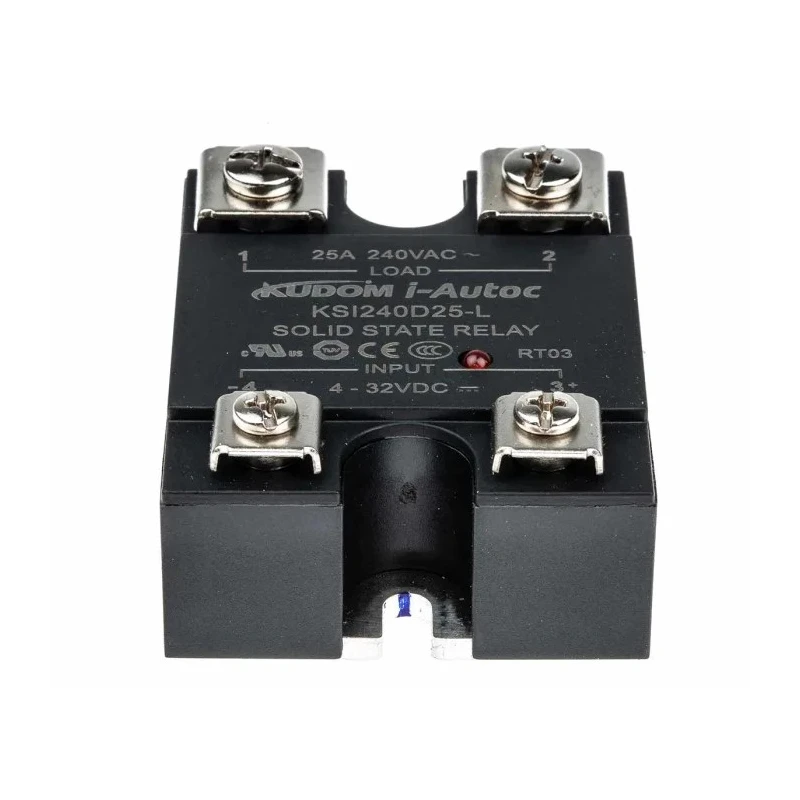

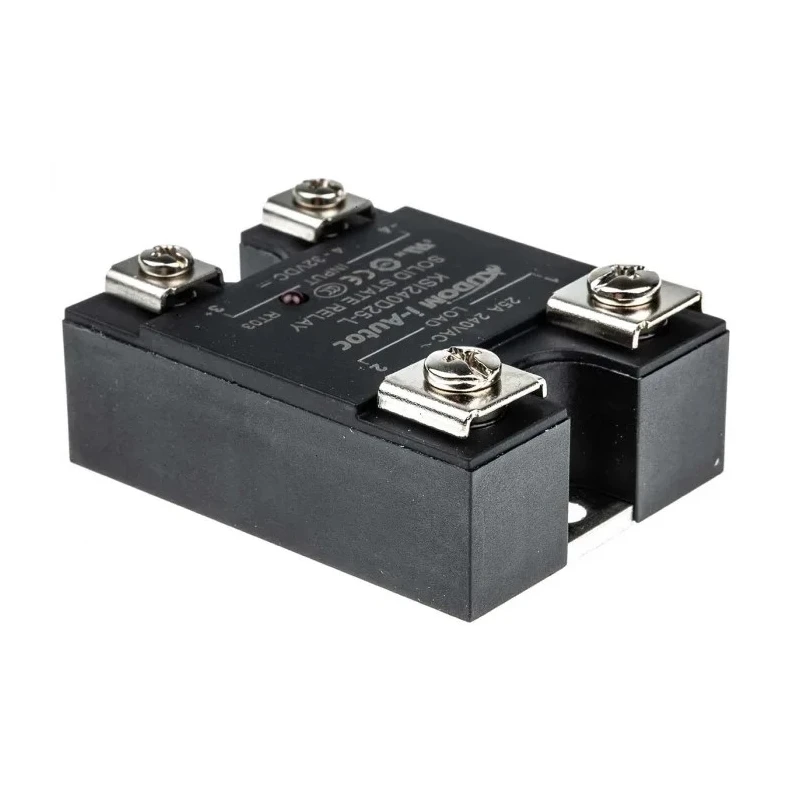

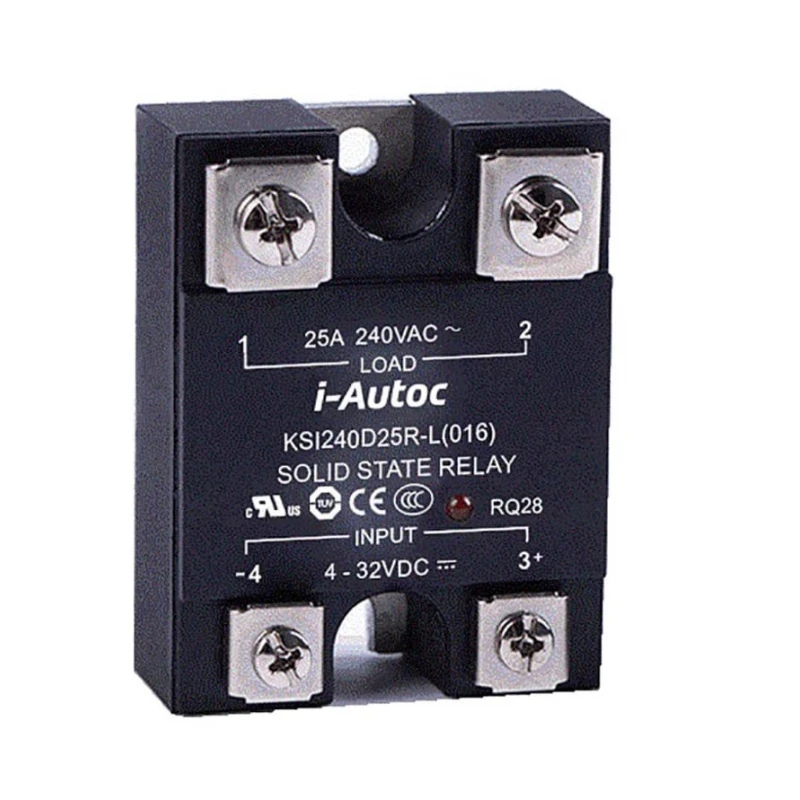

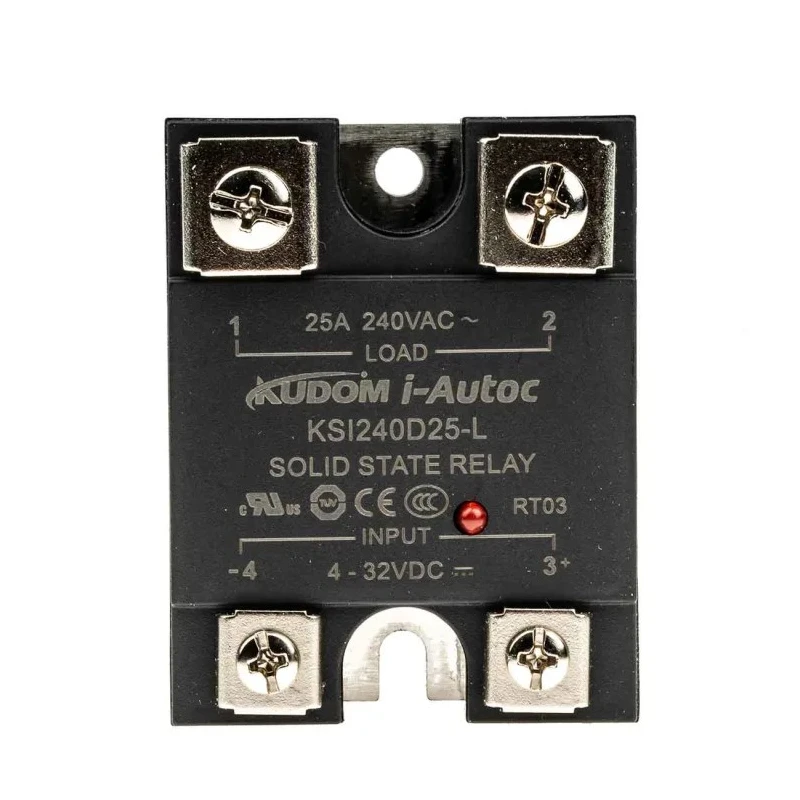

The i-Autoc KSI240D25-L solid state relay is part of the KSI (068) series designed for industrial single-phase AC load switching. It supports a maximum load current of 25 amps and is panel mountable with screw terminals, making installation secure and reliable.

This relay operates within a load voltage range of 48V AC to 280V AC and accepts control signals from 4V to 32V DC. The device incorporates zero cross switching technology to minimize electrical noise and stress during switching cycles, enhancing operational stability.

Measuring 58.6mm in length, 45.7mm in width, and 26.5mm in height, it is compact with an IP20 touch-safe cover, providing safety in demanding industrial environments. The relay is rated to function reliably within a temperature range of -30°C to +80°C, ideal for applications subject to temperature extremes.

Equipped with SCR and Triac output devices, the relay delivers efficient switching with a low off-state leakage current of 5mA. Internal RS/MOV and TVS protection circuits safeguard the relay from voltage spikes and ensure longer service life.

Common applications include controlling heating/cooling systems in HVAC units, plastics processing machinery, incubation chambers, elevators, lighting systems, and fountain controllers. The relay meets standards including CCC, CE, and RoHS, confirming compliance with quality and safety regulations.

Manufactured in China, the product is robust and suited for industrial automation and control tasks requiring reliable solid state switching at up to 25A load current. Supports maximum load current of 25A suitable for resistive, inductive, and capacitive loads.

Panel mount type with screw terminal connections for secure installation. Operates at load voltages from 48V AC to 280V AC and control voltages from 4V DC to 32V DC. Features zero cross switching function to reduce electrical noise during switching.

Compact dimensions: 58.6mm length, 45.7mm width, and 26.5mm height. IP20 rated touch-safe cover ensuring safe operation in industrial environments. Suitable for applications like HVAC systems, plastic machinery, incubation chambers, elevators, and lighting controls.

Robust operating temperature range from -30°C to +80°C enabling harsh environment usage. Output type includes SCR and Triac with off-state leakage current of 5mA. Built with internal RS/MOV and TVS protection to enhance reliability and durability.
