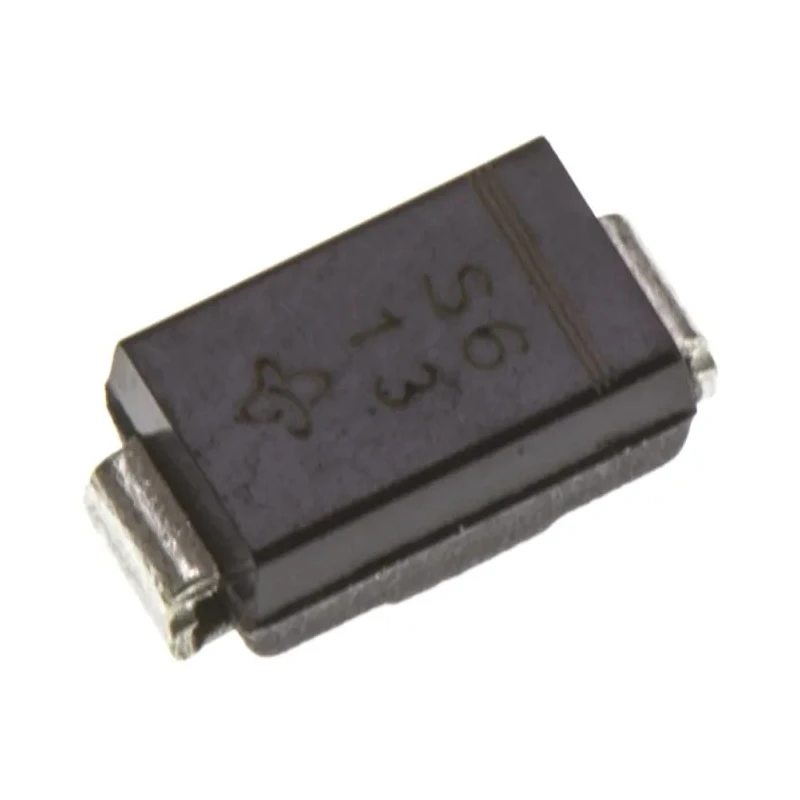

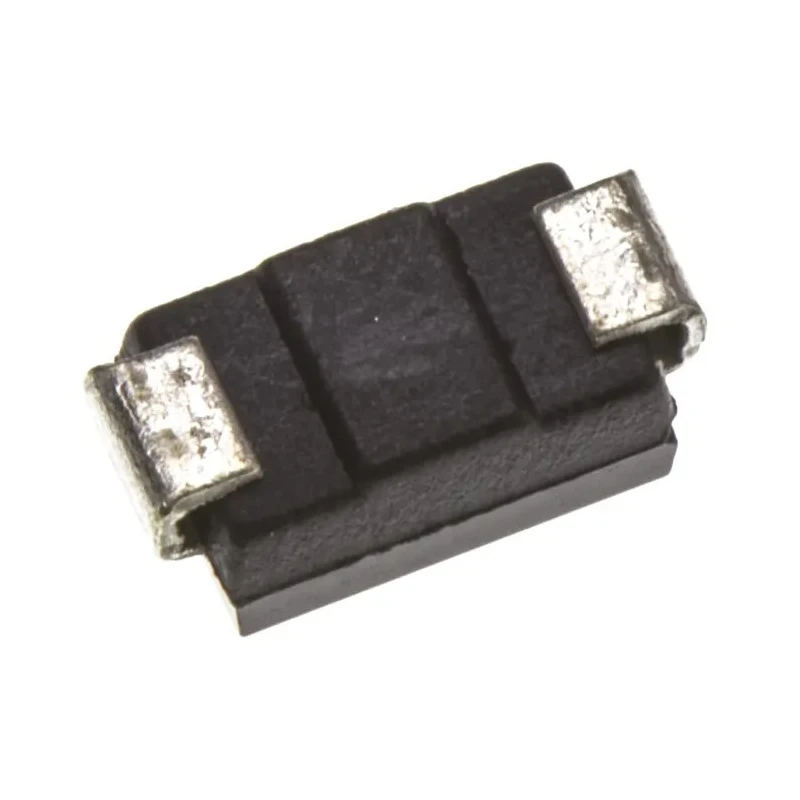

Vishay 60 V 1 A Schottky Diode 2-Pin DO-214AC Surface Mount SS16-E3/61T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.09mm |
| Length | 4.5mm |
| Model | SS16-E3/61T |
| Width | 2.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 750mV |
| Taiwan Semiconductor 60 V 1 A Diode Schottky 2-Pin DO-214AC SS16Brand | Taiwan Semiconductor |
| Vishay 60V 1A, Schottky Diode, 2-Pin DO-214AC SS16Brand | Vishay |
Key Features
- Maximum continuous forward current of 1 ampere ensures reliable conduction.
- Peak reverse repetitive voltage rating of 60 volts for effective voltage blocking.
- Low forward voltage drop of approximately 750 millivolts reduces power loss.
- Wide operating temperature range from -65°C to 150°C for versatile applications.
- Compact 2.09 mm height, 4.5 mm length, and 2.9 mm width surface mount package.
- High surge current capability of 40 amperes peak non-repetitive forward surge current.
- Single diode configuration optimized for Schottky barrier rectification.
- Low leakage current with peak reverse current of 5 milliamperes.
Product Description
Vishay SS16-E3/61T is a 60 volt, 1 ampere Schottky barrier diode offered in a compact 2-pin DO-214AC (SMA) surface mount package. This diode features low forward voltage drop and high surge current capability suitable for power supply and rectification circuits.
The device is designed with an over-voltage protection guard ring, ensuring robustness in demanding electrical environments. Its low forward voltage drop of approximately 750 millivolts translates to reduced conduction losses and higher efficiency in power management applications.
Operating temperature range spans from -65°C to +150°C, providing reliability in industrial, automotive, and commercial electronics. Dimensions are optimized for surface mount assembly with a height of 2.09 mm, length of 4.5 mm, and width of 2.9 mm.
Typical applications include low voltage, high frequency inverters, DC/DC converters, polarity protection circuits, and freewheeling diode roles in switching power supplies. The diode’s peak non-repetitive forward surge current capability of 40 amperes supports transient load conditions.
Vishay’s SS16-E3/61T combines high efficiency and compact form factor, making it ideal for modern electronics manufacturing requiring surface mount components. Maximum continuous forward current: 1 A. Peak reverse repetitive voltage: 60 V.
Maximum forward voltage: 750 mV. Peak non-repetitive forward surge current: 40 A. Operating temperature: -65°C to 150°C. Package: DO-214AC (SMA), surface mount. Dimensions: 2.09 mm height × 4.5 mm length × 2.9 mm width.
This component is suitable for industrial semiconductor applications in power electronics, automotive electronics, and commercial electrical designs. Explore more Vishay semiconductor components on EnvMart for your design and manufacturing needs.
Explore more products in our Schottky Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1 ampere.
This diode has a peak reverse repetitive voltage rating of 60 volts.
The maximum forward voltage drop is approximately 750 millivolts.
The operating temperature range spans from -65°C to +150°C.
The dimensions of this diode are 2.09 mm in height, 4.5 mm in length, and 2.9 mm in width.
It has a peak non-repetitive forward surge current capability of 40 amperes.
This model is packaged in a DO-214AC (SMA) surface mount package.
The peak reverse current is 5 milliamperes.
This diode utilizes a single diode configuration optimized for Schottky barrier rectification.
Typical applications include low voltage, high frequency inverters, DC/DC converters, and polarity protection circuits.
The country of origin for this diode is India.
This diode is designed for surface mounting.
