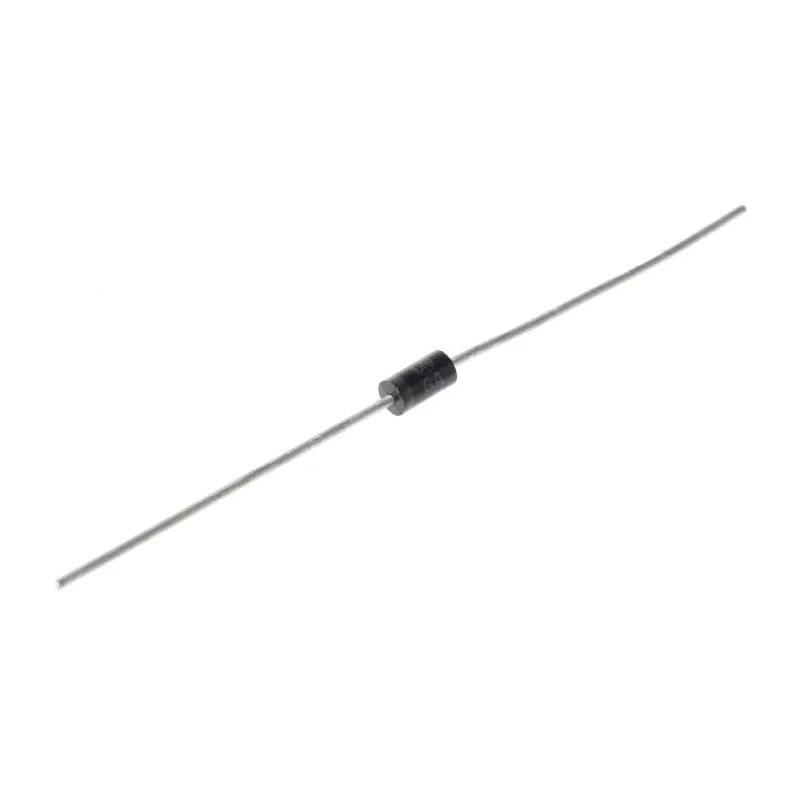

onsemi 600 V 1 A Fast Recovery Rectifier General Purpose 2-Pin DO-41 1N4937RLG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 600 V 1 A Fast Recovery Rectifier General Purpose 2-Pin DO-41 1N4937RLG

Name: onsemi 600 V 1 A Fast Recovery Rectifier General Purpose 2-Pin DO-41 1N4937RLG
Brand: onsemi
SKU: 343228
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand onsemi Condition New

Specifications

Country of Origin	India
Diameter	2.7mm
Brand	onsemi
Height	2.7mm
Length	5.2mm
Model	1N4937RLG
Width	2.7mm
Mount Type	Through Hole
Series	1N4937
Maximum Operating Temperature	150°C
Package Type	DO-41
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	600V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	1.2V
Peak Reverse Recovery Time trr	300ns
onsemi 600V 1A, Silicon Junction Diode, 2-Pin DO-41 1N4937Brand	ON Semiconductor
Fairchild 600V 1A, Silicon Junction Diode, 2-Pin DO-41 1N4937Brand	Fairchild Semiconductor

Key Features

Maximum continuous forward current of 1 ampere for reliable performance.
Peak reverse repetitive voltage rating of 600 volts ensures robustness.
Ultra-fast peak reverse recovery time of 300 nanoseconds for efficient switching.
Compact DO-41 package with dimensions approximately 5.2 mm length and 2.7 mm diameter.
Operates reliably in temperatures from -65°C up to 150°C.
Designed as a single diode configuration with two pins for easy installation.
Maximum forward voltage drop of 1.2 volts to minimize power loss.
Peak non-repetitive forward surge current rating of 30 amperes for transient tolerance.

Product Description

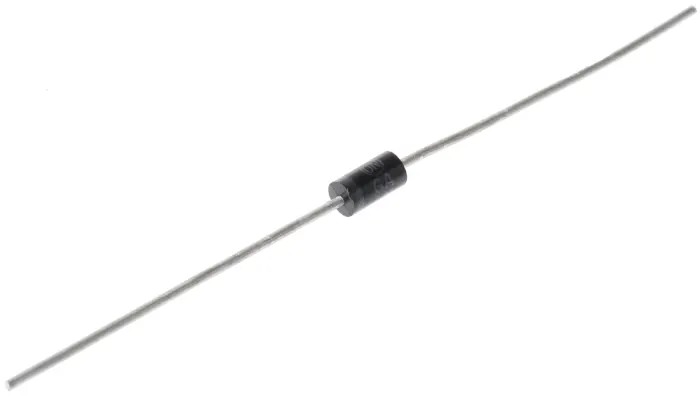

onsemi 1N4937RLG is a fast recovery rectifier diode designed for general-purpose applications requiring high-speed switching and efficient power handling. This diode is housed in a compact DO-41 package measuring 5.2 mm in length and 2.7 mm in diameter, suitable for through-hole mounting on printed circuit boards.

Capable of handling a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 600 volts, the 1N4937RLG ensures robust electrical performance. Its peak reverse recovery time of 300 nanoseconds enables swift switching, reducing power loss in high-frequency applications.

The device supports a wide operating temperature range from -65°C to 150°C, making it suitable for industrial, automotive, and commercial electronic applications. A maximum forward voltage drop of 1.2 volts helps maintain efficiency, while its peak non-repetitive forward surge current rating of 30 amperes ensures durability under transient loads.

With a simple two-pin single diode configuration, installation and replacement are straightforward. Although it is not specifically qualified to automotive standards, it is widely used in various power electronics, signal rectification, and protection circuits.

Maximum continuous forward current: 1 A. Peak reverse repetitive voltage: 600 V. Peak reverse recovery time: 300 ns. Package type: DO-41 through-hole. Operating temperature range: -65°C to 150°C. Maximum forward voltage: 1.2 V.

Peak non-repetitive surge current: 30 A. Two-pin single diode configuration. Compact dimensions with 5.2 mm length and 2.7 mm diameter.

This component is ideal for industrial electronics, power supply rectification, and general electronic circuit design. The durable construction and reliable specs by onsemi support demanding environments. Browse EnvMart's extensive semiconductor and diode category for compatible components and accessories.
