TDK Surface Mount Common Mode Line Filter with Ferrite Core 400 mA Idc 2012 Package ACM2012

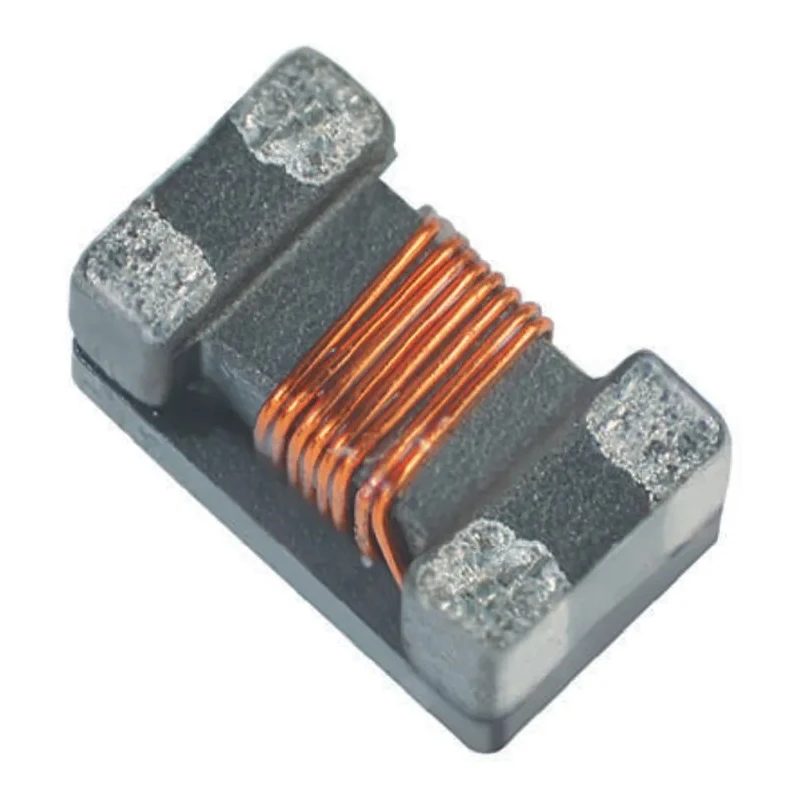

TDK ACM2012 is a high-quality surface mount common mode line filter featuring a Ferrite Core for effective noise suppression. It supports a maximum DC current of 400 mA which makes it suitable for various electronic signal filtering applications.

This product is designed as a miniature surface mount device (SMD) with wire wound construction, providing superior common-mode impedance greater than 1000 Ω at 100 MHz while maintaining very low differential mode impedance, ensuring minimal interference with high-speed data signals.

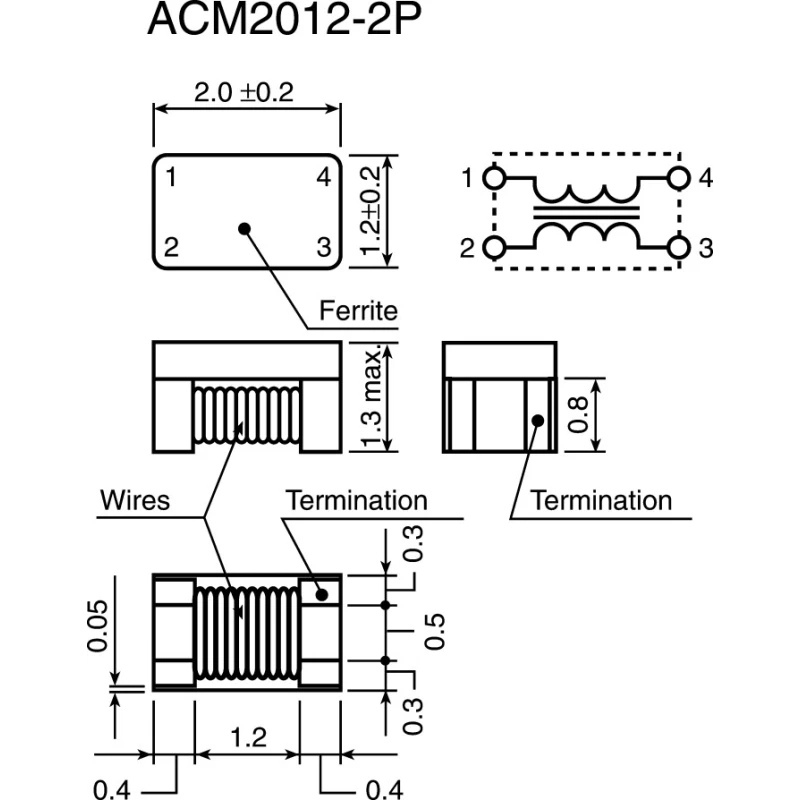

The 2012 package has physical dimensions of 2 mm length, 1.3 mm height, and 1.2 mm depth, supporting compact PCB layouts in complex electronics assemblies. It is rated for operation in extreme temperatures from -40°C to +85°C, making it reliable for industrial and commercial electronics applications.

This common mode choke is particularly effective for radiation and common mode noise suppression in USB, IEEE1394 computer interfaces, and LVDS panel link lines, thus enhancing signal integrity in digital communication systems.

Miniature SMD common-mode wire wound chip filter. Common-mode impedance exceeding 1000 Ω at 100 MHz. Low differential mode impedance for high-speed signal compatibility. Compact 2012 package size (2 × 1.3 × 1.2 mm). Operating temperature range from -40°C to 85°C.

Wirewound inductor construction and surface mount termination. RoHS compliant and manufactured in Japan. Applications include USB, IEEE1394, and LVDS panel link noise suppression.

This surface mount common mode filter is ideal for industrial, electronic manufacturing, telecommunications, computer hardware, and power line noise filtration use cases. Ensure enhanced EMI filtering and signal quality using TDK's ACM2012 in your PCB designs.
