TDK Surface Mount Common Mode Line Filter with Ferrite Core 300mA Idc, 2520 Package ACM2520-601-2P-T

TDK ACM2520-601-2P-T Surface Mount Common Mode Line Filter is a compact and high-performance electronic component featuring a ferrite core designed for efficient common-mode noise attenuation in electronic devices. This surface mount device supports a maximum DC current of 300 mA and is built in a 2520 package, making it suitable for PCB layouts requiring miniature and reliable noise filtering solutions.

The filter delivers a common-mode impedance exceeding 1000 Ohms at 100 MHz, enabling it to suppress radiated and conducted noise effectively, while its low differential mode impedance ensures negligible effect on data signal integrity. It operates reliably in temperatures ranging from -25°C to +85°C, meeting the environmental demands in industrial, automotive, and consumer applications.

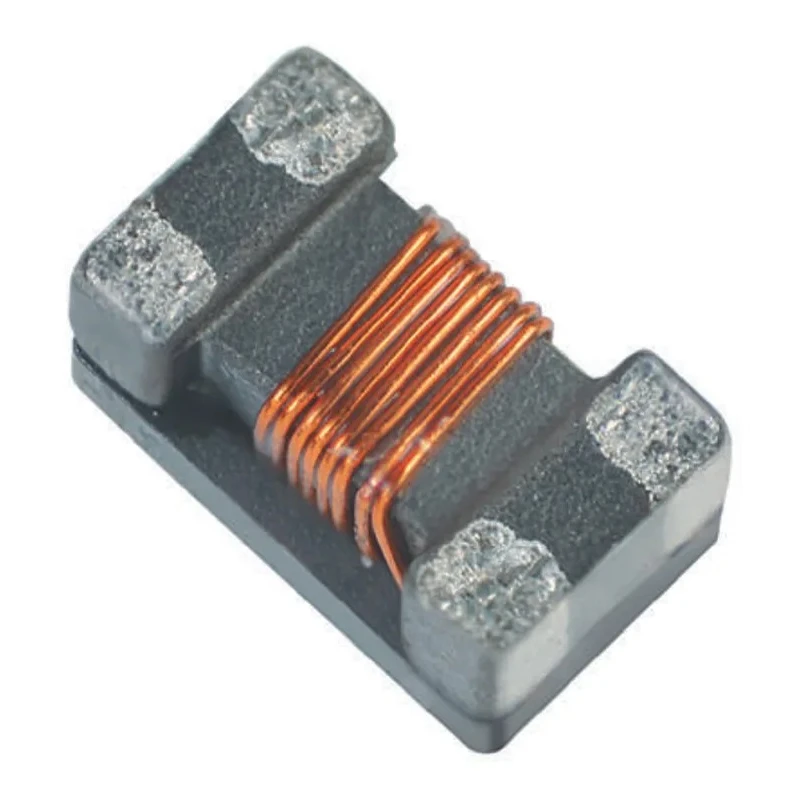

Housing a wirewound inductor construction with a ferrite core, the filter offers robust mechanical and electrical stability. The termination style is wire-based with two pins, compatible with typical surface mount assembly methods. This product complies with RoHS environmental standards and is manufactured in Japan, reflecting TDK's quality and compliance for global markets.

Miniature SMD common-mode choke designed for surface mount mounting. High common-mode impedance greater than 1000 Ohms at 100 MHz. Low differential mode impedance preserves signal quality. Wide operating temperature range from -25°C to 85°C ensures versatile use.

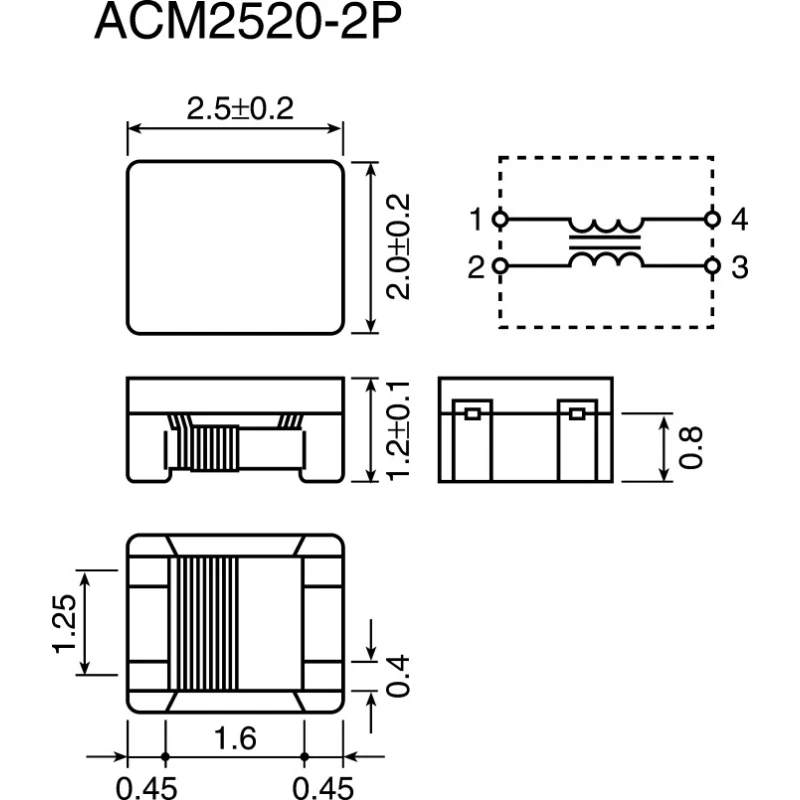

2-pin wire termination in a 2520 package for easy PCB integration. Constructed with Ferrite Core and wirewound inductor for enhanced performance. RoHS compliant to meet environmental safety regulations. Perfect for noise suppression on USB, IEEE1394, and LVDS panel link lines.

This TDK Surface Mount Common Mode Line Filter is well-suited for industrial electronics, computer hardware, telecommunications, automotive electronics, and other applications requiring effective EMI/RFI noise mitigation. Its miniature size and reliable performance make it ideal for high-density circuit board designs.
