TDK Surface Mount Common Mode Line Filter with Ferrite Core, 400 mA Idc, 2520 Package ACM2520-301-2P-T

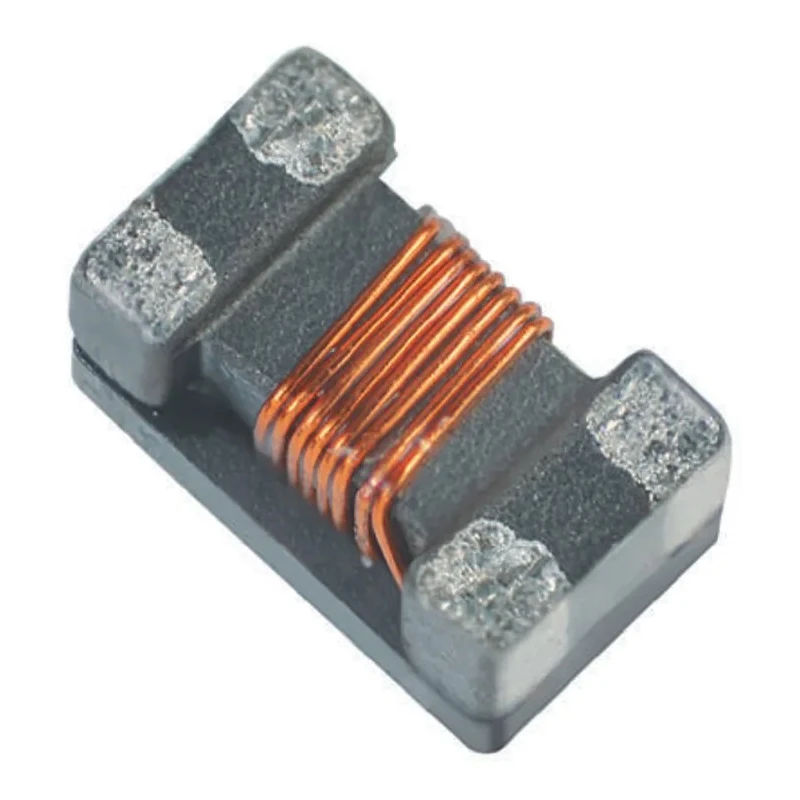

TDK ACM2520-301-2P-T Surface Mount Common Mode Line Filter incorporates a ferrite core and miniature SMD wirewound inductor design to provide excellent suppression of radiation and common-mode noise in electronic circuits.

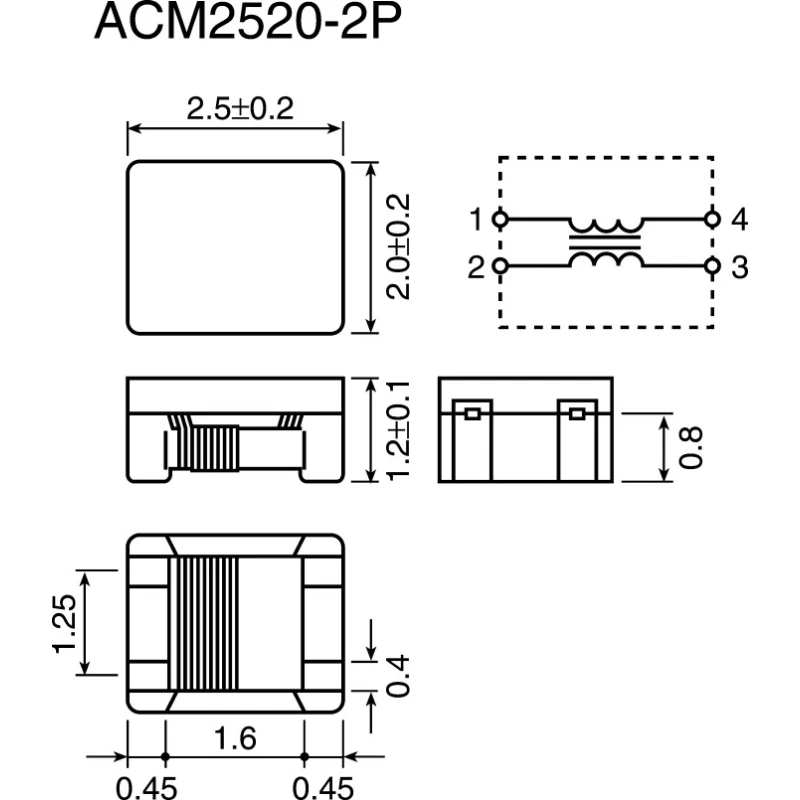

Its compact 2520 package with dimensions 2.5mm length, 2mm depth, and 1.2mm height enables integration in high-density PCB assemblies. This filter supports a maximum DC current rating of 400 mA and a maximum DC resistance of 350mΩ, ensuring efficient performance with minimal power loss across the filter.

Ideal for applications in electronic components for noise suppression such as USB and IEEE1394 computer interfaces, LVDS panel link lines, and other high-speed digital communication circuits.

Designed to operate reliably in temperatures ranging from -25°C to +85°C, suitable for industrial, consumer electronics, and computer hardware environments. Compliance with RoHS directives guarantees environmental safety and quality manufacturing standards for this product, which is made in Japan.

Compact 2520 surface-mount package for space-saving PCB design. High common-mode impedance (>1000Ω at 100MHz) for effective noise suppression. Low differential mode impedance maintains signal integrity in high-speed lines.

Wide operating temperature range from -25°C to 85°C for diverse applications. Wirewound inductor construction with Ferrite Core for durability and performance. Complies with RoHS for environmentally safe materials and processes.

The TDK ACM2520-301-2P-T filter is widely used in electronics manufacturing, computer peripherals, telecommunications, and other sectors requiring stable EMI noise filtering solutions.

Available for procurement as individual units or in reels for automated insertion, facilitating high-volume manufacturing processes. Explore more products in the Electronics Components category to find compatible passive components and filtering solutions at EnvMart.
