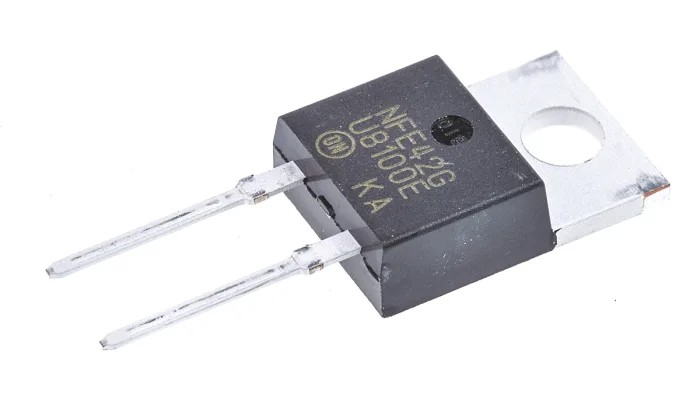

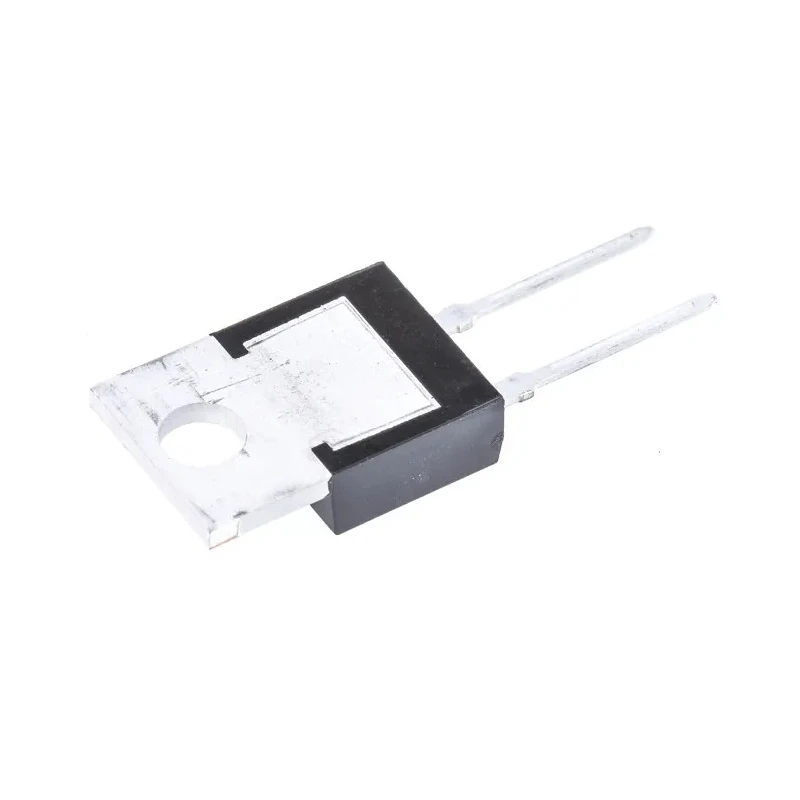

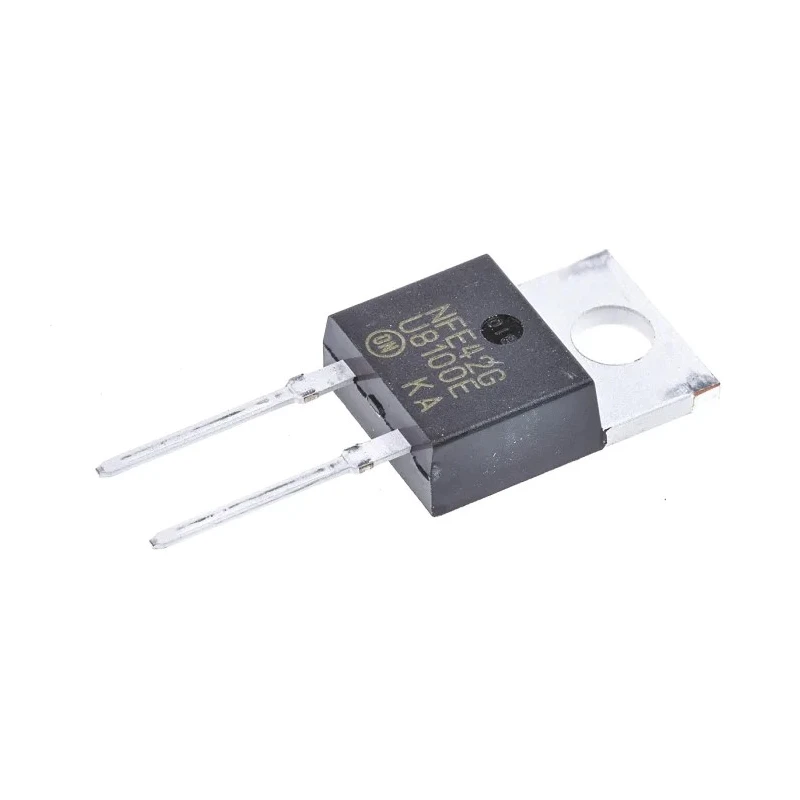

onsemi 1 kV 8 A Switching Diode Single 2-Pin TO-220AC MUR8100EG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 9.27mm |
| Length | 10.29mm |
| Model | MUR8100EG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 25μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 1.8V |
| Peak Reverse Recovery Time trr | 100ns |
| Infineon Silicon Diode, Single, 7.5 A, 2-Pin 650 V TO-220 IDV15E65D2XKSA1Brand | Infineon |
| Diode, rectifier, MUR8100EBrand | NEUTRAL |
| Diode,Rectifier,Fast,MUR8100EBrand | ON Semiconductor |
| onsemi Diode, MUR8100EBrand | ON Semiconductor |
Key Features
- Designed for high-speed switching applications with a peak reverse recovery time of 100 ns.
- Supports a peak reverse repetitive voltage of 1 kV ensuring robust voltage handling.
- Maximum forward voltage drop of 1.8 V for efficient conduction.
- Operates reliably in a wide temperature range from -65°C to 175°C.
- Complies with AEC-Q101 automotive standard ensuring quality and reliability.
- Peak non-repetitive surge current capability up to 100 A for transient conditions.
- Ideal for power electronic circuits, automotive applications, and industrial equipment.
Product Description
onsemi MUR8100EG is a high-performance single switching diode tailored for power electronics and automotive applications. This device offers a maximum continuous forward current of 8 A and can withstand a peak reverse repetitive voltage of 1 kV, housed in a 2-pin TO-220AC package to facilitate through-hole PCB mounting.
The diode features a low forward voltage drop of 1.8 V, contributing to improved efficiency in circuits requiring fast switching. Its peak reverse recovery time of 100 ns supports high-speed switching performance critical in power conversion and control.
Operating over a temperature range from -65°C to 175°C, the MUR8100EG ensures robust operation in demanding environments, making it suitable for industrial and automotive grade electronic assemblies.
Compliant with the AEC-Q101 automotive standard, this diode guarantees reliability and safety for automotive usage. The compact physical dimensions (10.29 mm length, 4.82 mm width, and 9.27 mm height) enable straightforward integration into various electronic designs.
Peak non-repetitive forward surge current capability of 100 A allows the device to handle short transient surges effectively. It is ideally used in switching power supplies, inverters, motor drives, and other industrial electronic systems requiring efficient unilateral current flow.
High-speed switching diode with 8 A continuous forward current. Peak repetitive reverse voltage up to 1 kV. Low forward voltage drop of 1.8 V for efficiency. Automotive grade compliant with AEC-Q101. Wide operating temperature range from -65°C to 175°C.
Compact TO-220AC through-hole package. High surge current handling capability of 100 A.
This onsemi MUR8100EG diode is an excellent choice for industrial, automotive, and electronic power management equipment. Explore related semiconductor products and diodes with similar form factors and capabilities in the Electronics & Electricals category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 8 A.
It can withstand a peak reverse repetitive voltage of 1 kV.
The maximum forward voltage drop is 1.8 V, which contributes to efficient conduction.
The peak reverse recovery time is 100 ns, supporting high-speed switching applications.
This diode operates reliably within a temperature range from -65°C to 175°C.
Yes, it complies with the AEC-Q101 automotive standard, ensuring quality and reliability for automotive applications.
It is housed in a TO-220AC package, suitable for through-hole PCB mounting.
The peak non-repetitive forward surge current capability is up to 100 A.
The dimensions are 10.29 mm in length, 4.82 mm in width, and 9.27 mm in height.
It is a single switching diode designed for high-speed applications.
It is ideal for power electronic circuits, automotive applications, and industrial equipment requiring efficient unilateral current flow.
This model has a pin count of 2.
