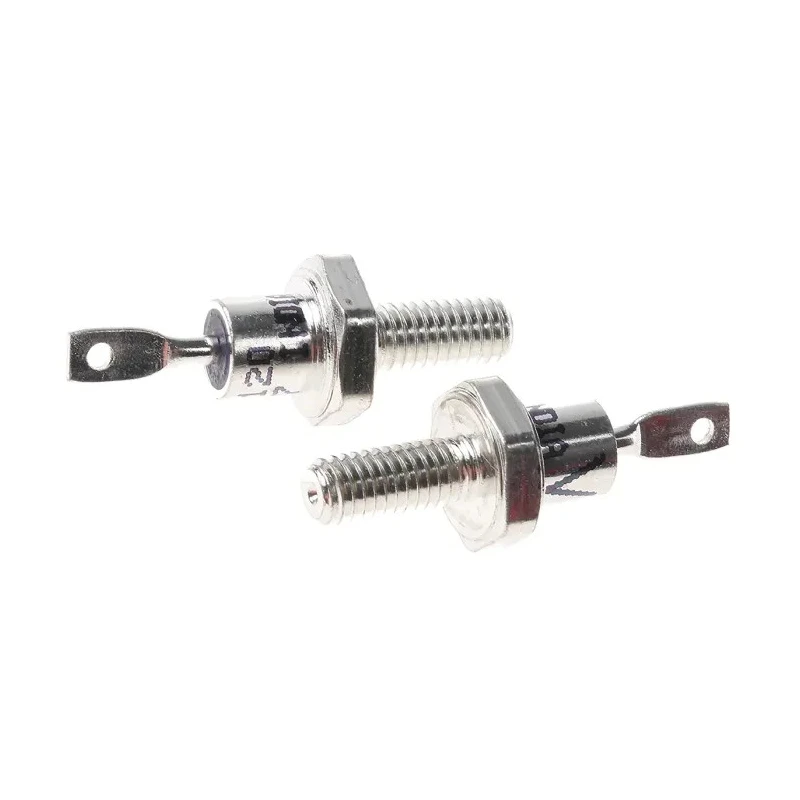

Vishay Standard Recovery Diode 1200 V 12 A 2-Pin DO-203AA VS-12F120
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-12F120 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-12F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Standard Recovery Diode |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 1.26V |
| Vishay 600 V 12 A Diode Standard Recovery Diode 2-Pin DO-203AABrand | Vishay |
| Diode,rectifier,16F10Brand | Vishay |
Key Features
- Designed for robust power rectification with a stud cathode diode configuration.
- Maximum forward voltage of 1.26 V ensures efficient operation.
- Wide operating temperature range from -65°C to 175°C.
- Supports high surge currents up to 280 A for transient conditions.
- Compact dimensions with 31.8 mm height and 11 mm diameter enhance easy integration.
- Reliable standard recovery rectifier for industrial and electronic applications.
- Mounting type is screw, suitable for secure mechanical fixing.
- Peak reverse current rated at 12 mA for stable performance.
Product Description
Vishay VS-12F120 is a standard recovery diode designed to provide reliable power rectification in various industrial and electronic semiconductor applications. Featuring a robust stud cathode diode configuration with a compact 2-pin DO-203AA package, this diode supports a peak reverse repetitive voltage (VRRM) of 1200 V and a maximum continuous forward current (IF) of 12 A. It operates efficiently with a maximum forward voltage (VF) of 1.26 V, ensuring minimal power loss during conduction.
With an extensive operating temperature range from -65°C to 175°C, the VS-12F120 diode provides stable operation in harsh environmental conditions commonly encountered in power electronics and rectifier circuits. The device supports a high peak non-repetitive forward surge current (IFSM) of 280 A, ideal for transient surge protection and enabling short-term high current handling without damage.
The diode's compact dimensions of 31.8 mm height and 11 mm diameter facilitate easy mounting and integration within equipment. The screw mount type further supports secure placement on heat sinks or chassis, improving thermal dissipation and mechanical stability. Vishay’s VS-12F120 standard recovery diode is manufactured to meet industrial quality standards and is ideal for use in applications like power supplies, inverter circuits, and general-purpose rectification tasks.
Robust standard recovery power diode with stud cathode configuration. Efficient high voltage rectification with 1200 V peak reverse repetitive voltage. 12 A continuous forward current capacity for demanding industrial circuits.
High surge capabilities with 280 A peak forward surge current rating. Wide temperature tolerance from -65°C to 175°C for harsh conditions. Compact DO-203AA two-pin package with screw mounting for secure installation. Operational forward voltage of 1.26 V for minimal conduction losses.
Reliable performance in power electronics, HVAC, and manufacturing equipment.
This Vishay diode is part of a versatile line of standard recovery rectifiers providing industry-standard packaging and dependable electrical characteristics. It offers engineers and technicians a trustworthy component for effective power management in electronic devices. Browse more semiconductors and diodes on EnvMart for comprehensive industrial and laboratory applications.
Explore more products in our Semiconductor Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage rating, or peak reverse repetitive voltage (VRRM), of the VS-12F120 diode is 1200 V.
The VS-12F120 diode has a maximum continuous forward current capacity of 12 A.
The maximum forward voltage (VF) of the VS-12F120 is 1.26 V, ensuring efficient operation during conduction.
The peak non-repetitive forward surge current (IFSM) rating of the VS-12F120 is 280 A, suitable for transient conditions.
This diode operates within a wide temperature range from -65°C to 175°C, allowing it to function in harsh environments.
The dimensions of the VS-12F120 diode are 31.8 mm in height, 11 mm in diameter, and 12.69 mm in length.
This model features a screw mount type, which allows for secure mechanical fixing during installation.
The VS-12F120 diode has a pin count of 2, consistent with its compact DO-203AA package.
This diode utilizes a stud cathode configuration, which is designed for robust power rectification.
The peak reverse current (Ir) for this diode is rated at 12 mA, ensuring stable performance during operation.
The VS-12F120 is suitable for various industrial and electronic applications, including power supplies and inverter circuits.
The VS-12F120 diode is manufactured in India, adhering to industrial quality standards.
