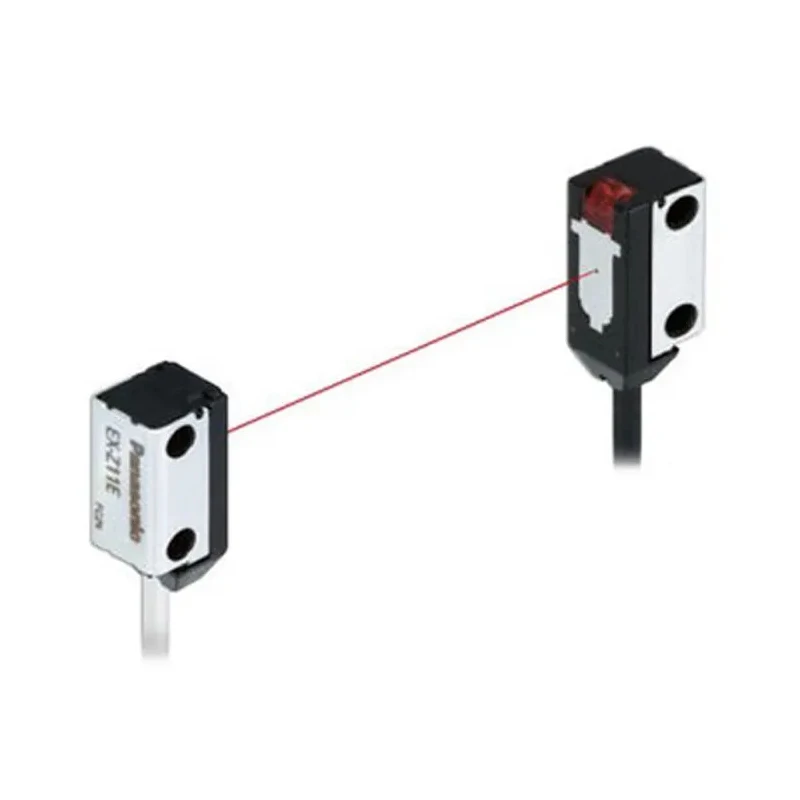

Panasonic Through Beam Photoelectric Sensor Block Type 200 mm Detection Range PNP Output IP67 EX-Z12FB-P
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 500μs |
| Light Source | LED |
| Detection range | 200 mm |
| Model | EX-Z12FB-P |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Output type | PNP |
| Series | EX-Z |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 20mA |
| DetectIon Type | Through Beam |
| Terminal type | Wire |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | CE, cULus Recognised, IEC |
| Materials Detected | Opaque |
| Sensor Style | Block |
Key Features
- Utilizes a through beam detection type for accurate sensing.
- Equipped with a compact block sensor style for narrow installation spaces.
- Features a PNP output type with wire terminal for easy connection.
- Operates reliably within a temperature range of -10°C to 55°C.
- LED light source ensures strong emission and visible sensing position.
- IP67 rated housing made of polybutylene terephthalate for water and dust resistance.
- High response speed of 500 microseconds supports fast industrial processes.
- Detection capability for opaque materials with a sensing range of 200 mm.
Product Description
Panasonic EX-Z12FB-P is a high-performance through beam photoelectric sensor designed for precise detection in industrial automation and control applications. This block-style sensor has a compact design that allows installation in narrow spaces previously accessible only by fiber-type sensors. Its built-in amplifier minimizes wiring complexity and saves installation space.
The EX-Z12FB-P sensor employs a high-brightness 4-element red LED light source, enabling strong light emission that remains stable over prolonged periods. It can detect objects as small as 0.3 mm diameter without the need for optional slits, making it suitable for applications requiring fine detection accuracy. The sensing position is easily confirmed visually thanks to a clearly visible spotlight.
This sensor operates at a maximum DC voltage of 24V, with a maximum current of 20 mA, and offers a fast response time of 500 microseconds, supporting rapid and reliable detection in automated systems. Its robust housing made from polybutylene terephthalate is rated IP67, providing resistance against dust and water ingress, suitable for demanding industrial environments.
Operating temperature ranges from -10°C to 55°C, making it versatile across different climates. The sensor is supplied as an emitter and receiver pair, where models marked "E" indicate emitters and "D" indicate receivers, simplifying identification during installation and maintenance.
Through beam detection mechanism for high reliability. Compact block sensor design for flexible mounting options. PNP output with wire terminal supports diverse industrial control systems. Robust IP67 rated housing material ensures durability in harsh environments.
Fast response time enables high-speed process automation. Detects opaque materials within 200 mm range. Compliance with internationally recognized standards including CE, cULus, and IEC. Emitter and receiver pairs included for complete sensing solutions.
This sensor is ideal for industrial automation, manufacturing lines, material handling, and quality control systems where precise object detection is critical. Panasonic’s EX-Z series sensors provide reliability, compactness, and ease of installation for effective automation solutions.
Explore more Photoelectric Sensor options and related automation components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is 200 mm, allowing it to effectively detect opaque materials within that distance.
The response time of the EX-Z12FB-P is 500 microseconds, enabling fast detection suitable for high-speed industrial processes.
This model features a PNP output type with a wire terminal, facilitating easy connection to various industrial control systems.
The sensor operates within a temperature range of -10°C to 55°C, making it versatile for different environmental conditions.
The housing is made from polybutylene terephthalate, which provides durability and resistance against dust and water ingress, rated at IP67.
Yes, it has a compact block sensor design that allows for installation in narrow spaces, previously accessible only by fiber-type sensors.
The EX-Z12FB-P utilizes a high-brightness 4-element red LED light source for strong light emission, ensuring stable performance over time.
This sensor is designed to detect opaque materials, making it suitable for various industrial applications.
It complies with several internationally recognized standards, including CE, cULus, and IEC.
The maximum operating voltage for the EX-Z12FB-P is 24V DC, which is suitable for many industrial applications.
The model number of this sensor is EX-Z12FB-P, which is part of the EX-Z series from Panasonic.
This sensor employs a through beam detection mechanism, providing high reliability for precise sensing in automation applications.
