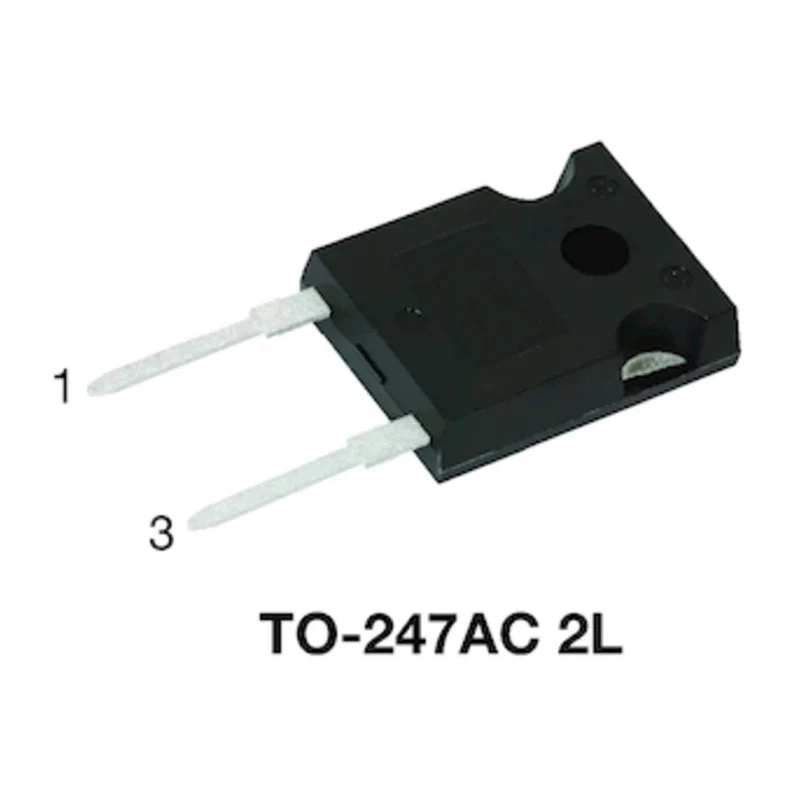

Vishay 1200 V 40 A Switching Diode 2-Pin TO-247 VS-40EPS12-M3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.9mm |
| Model | VS-40EPS12-M3 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | VS-40EPF1.-M3 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 475A |
| Maximum Forward Voltage Vf | 1.1V |
| Vishay 800V 40A, Diode, 2-Pin TO-247AC VS-40EPS08PBFBrand | Vishay |
Key Features
- This diode features a maximum continuous forward current of 40 amperes.
- The peak reverse repetitive voltage is rated at 1200 volts for robust operation.
- Designed as a single diode configuration for switching applications.
- It includes a peak non-repetitive forward surge current rating of 475 amperes.
- The maximum forward voltage drop is 1.1 volts ensuring low conduction losses.
- Operates within a temperature range from -40 to 150 degrees Celsius.
- Mount type is through hole with a 2-pin TO-247 package for easy PCB integration.
- Glass passivated pellet chip junction ensures durability and reliability.
Product Description
Vishay VS-40EPS12-M3 is a high voltage switching diode designed for industrial and electronic applications requiring robust rectification performance. It is housed in a TO-247 2-pin through-hole package enabling secure mounting on printed circuit boards. The diode is optimized for a very low forward voltage drop of 1.1 volts and moderate leakage current, making it efficient for power conversion and switching regimes.
Featuring a maximum continuous forward current of 40 A and a peak reverse repetitive voltage of 1200 V, this diode is capable of handling demanding electrical loads and transient conditions. It can sustain peak non-repetitive forward surge currents up to 475 amperes, providing excellent overload protection.
The diode is constructed with a glass passivated pellet chip junction that enhances reliability over wide temperature ranges from -40°C to 150°C, making it suitable for automotive, industrial, and commercial environments where temperature extremes may occur.
Physical dimensions of 15.9 mm length, 5.3 mm width, and 20.7 mm height facilitate integration into various power electronic devices and rectifier assemblies. Maximum continuous forward current of 40 A. Peak reverse repetitive voltage at 1200 V.
Low forward voltage drop of 1.1 V for efficient operation. Peak surge current rating of 475 A for transient robustness. Wide operating temperature from -40°C to 150°C. Through-hole mount with TO-247 2-pin package. Glass passivated pellet chip junction construction.
This Vishay diode is ideal for main rectification applications in power and switching circuits within industrial manufacturing, automotive electronics, renewable energy converters, and laboratory power supplies. Its rugged design and electrical specifications ensure dependable, long-term performance.
Explore more high-quality semiconductor devices in the Vishay range available at EnvMart for enhanced electronic system design and reliability assurance.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-40EPS12-M3 diode is 40 amperes.
This model has a peak reverse repetitive voltage rating of 1200 volts.
The maximum forward voltage drop for this diode is 1.1 volts, which helps ensure low conduction losses.
It includes a peak non-repetitive forward surge current rating of 475 amperes.
The operating temperature range for the Vishay VS-40EPS12-M3 is from -40°C to 150°C.
This diode uses a through-hole mount with a 2-pin TO-247 package for easy PCB integration.
The physical dimensions are 15.9 mm in length, 5.3 mm in width, and 20.7 mm in height.
It is designed as a single diode configuration for switching applications.
The peak reverse current for this diode is rated at 100 microamperes (100μA).
This diode belongs to the VS-40EPF1.-M3 series.
The Vishay VS-40EPS12-M3 is classified as a switching rectifier.
The country of origin for this diode is India.
