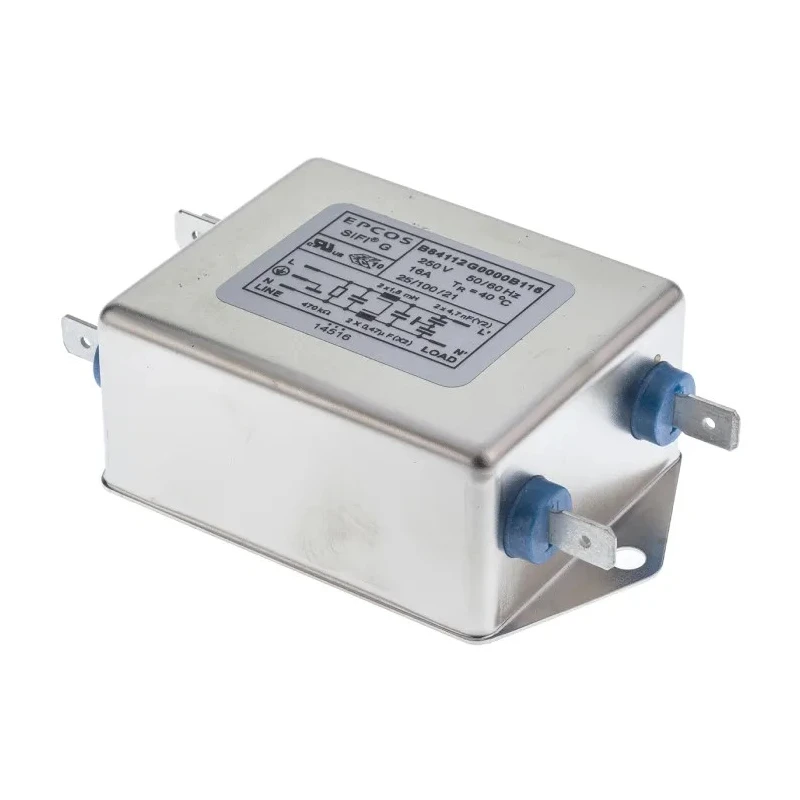

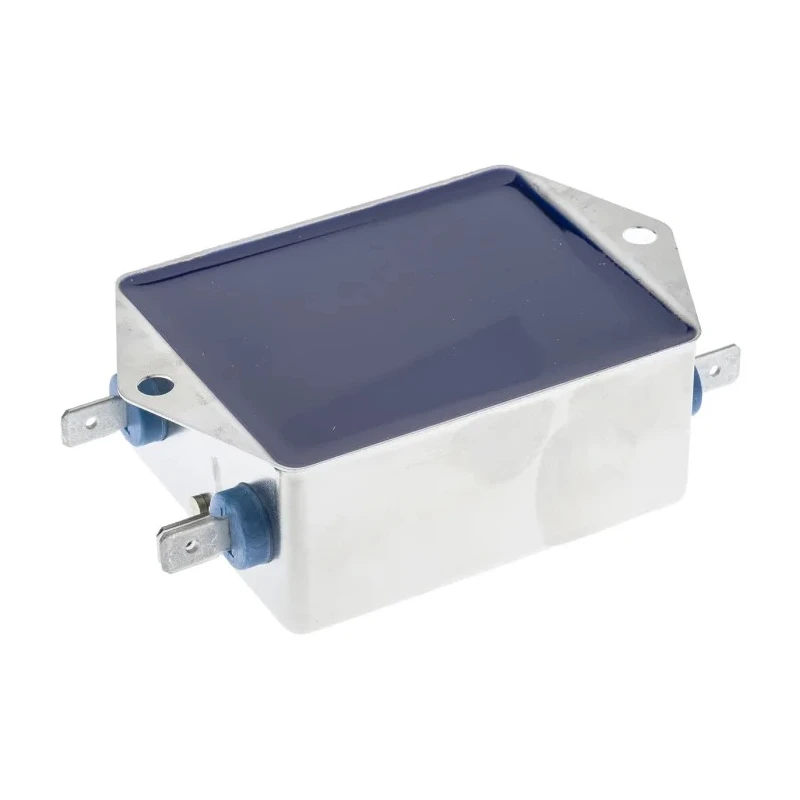

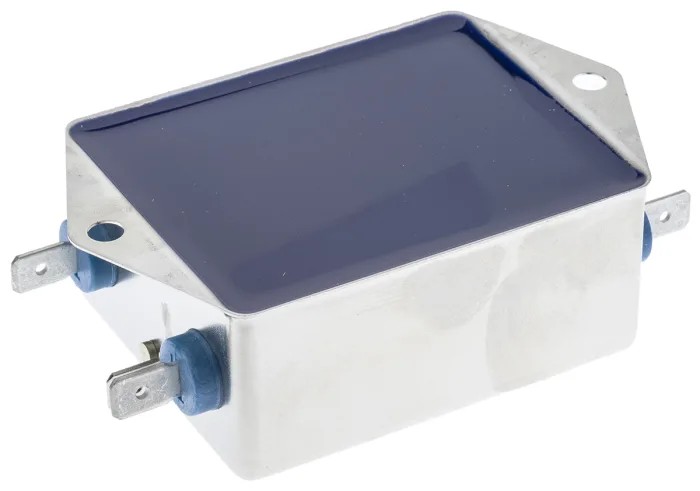

TDK Chassis Mount EMC Filter 16 A 250V ac/dc 50Hz, 60 Hz Screw Termination 1 Phase B84112G0000B116

Free Delivery in India | Lowest Global Shipping Charges

TDK Chassis Mount EMC Filter 16 A 250V ac/dc 50Hz, 60 Hz Screw Termination 1 Phase B84112G0000B116



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	29mm
Length	89.5mm
Model	B84112G0000B116
Depth	52mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84112G
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	2pF
Minimum Operating Temperature	-25°C
Maximum Current	16A
Number of Phases	1
Leakage Current	369μA
Maximum Voltage	250V ac/dc
Inductance	2mH
Standards/Approvals	UL 1283
Termination Style	Screw

Key Features

Designed for single phase systems with 50Hz and 60Hz operating frequencies.
Compact metal case construction ensures easy chassis mounting installation.
Features 2pF capacitance and 2mH inductance for effective noise suppression.
Leakage current rated at 369μA and maximum operating temperature of 100°C.
Complies with UL 1283 standards ensuring safety and reliability.
Ideal for industrial electronics, switch-mode power supplies, telecom, data systems, and medical equipment applications.
Robust screw termination ensures secure electrical connections.

Product Description

TDK B84112G0000B116 is a high-performance chassis mount EMC filter designed for 1 phase power systems. It supports a maximum current of 16 A and a rated voltage of 250V ac/dc, operating efficiently at 50Hz and 60Hz frequencies. The filter is enclosed in a compact metal case that facilitates easy installation in industrial and electronic equipment chassis.

This filter contains 2 line filters integrated within the B84112G series, constructed to provide superior electromagnetic interference suppression. Its electrical characteristics include a capacitance of 2pF, inductance of 2mH, and a low leakage current rated at 369μA, ensuring minimal disruption in sensitive applications.

The filter is rated for a maximum operating temperature of 100°C and a minimum of -25°C, making it suitable for a wide range of environmental conditions. The robust screw termination style allows secure and reliable electrical connections, suitable for industrial electronics, switch-mode power supplies, telecom systems, data communication setups, and specialized medical equipment (models such as B84112G0000M are variant versions).

With dimensions of 89.5mm in length, 52mm in depth, and 29mm in height, this compact unit is space-efficient yet powerful. It is certified under UL 1283 standards, assuring high safety and operational reliability. The filter's metal casing enhances durability and EMI shielding effectiveness.

Applications include industrial electronics, telecom equipment protection, medical devices requiring low EMI environments, and DC applications requiring EMI filtering. The product is manufactured in China and forms part of the B84112G series, known for consistent performance in EMC noise suppression.

Designed for single phase systems with 50Hz and 60Hz operating frequencies. Compact metal case ensures easy chassis mounting installation. 2pF capacitance and 2mH inductance provide effective noise suppression. Low leakage current of 369μA maintains system integrity.

Compliant with UL 1283 for safety and reliability. Robust screw termination style for secure connections. Dimensional profile: 89.5mm length, 52mm depth, 29mm height. Suitable for various industrial, telecom, data, and medical applications.
