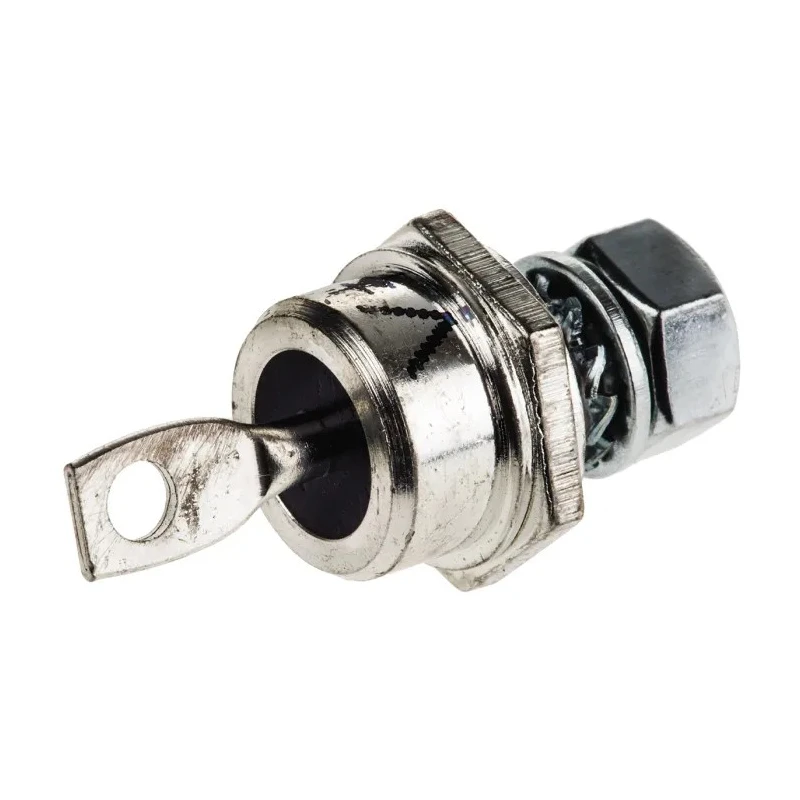

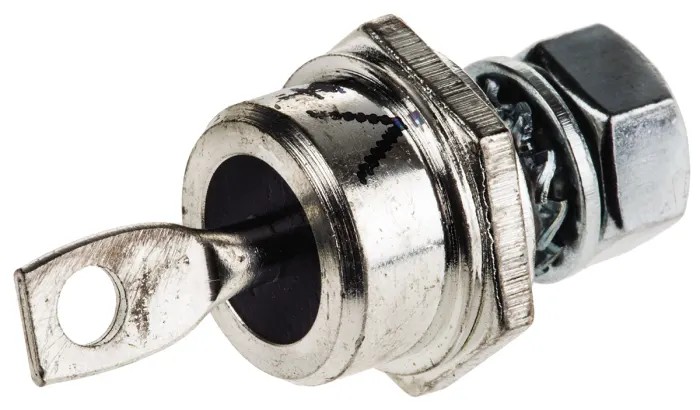

Vishay Standard Recovery Switching Power Diode 1600 V 70 A 2-Pin DO-203AB VS-70HFR160
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.4mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-70HFR160 |
| Width | 17.35mm |
| Mount Type | Screw |
| Series | VS-70HF |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 4.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.3kA |
| Maximum Forward Voltage Vf | 1.46V |
| Vishay 1600 V 85 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
Key Features
- Designed for switching applications with a maximum continuous forward current of 70 A.
- Features a peak reverse repetitive voltage rating of 1600 V.
- Equipped with a stud anode diode configuration ensuring efficient heat dissipation.
- Peak non-repetitive forward surge current capacity of 1.3 kA for transient conditions.
- Operates reliably within a wide temperature range from -65°C to 180°C.
- Compact form factor with dimensions approximately 22.9 mm height and 17.4 mm diameter.
- Maximum forward voltage drop is 1.46 V ensuring minimal power loss.
- Constructed to industry-standard DO-203AB package ensuring compatibility with standard mounting systems.
Product Description
Vishay VS-70HFR160 is a high-performance standard recovery switching diode designed for industrial and power electronic applications. Rated for a peak reverse repetitive voltage of 1600 V and continuous forward current of 70 A, it is well suited for robust switching environments including power supplies, motor controls, and general semiconductor circuits.
Featuring a 2-pin DO-203AB package with a stud anode configuration, this diode offers effective thermal management and durable mounting via screw terminals. Its peak non-repetitive forward surge current of 1.3 kA ensures sustainable operation during transient surge conditions.
Operating temperature ranges from -65°C to 180°C, allowing this diode to perform reliably in harsh industrial and electronic environments. The maximum forward voltage drop of 1.46 V contributes to efficient power regulation and reduced energy waste.
The VS-70HFR160 is engineered and manufactured to stringent industrial standards by Vishay, a globally recognized brand for semiconductor diodes and rectifiers. The package dimensions approximately 22.9 mm height, 20.02 mm length, 17.4 mm diameter, and 17.35 mm width make it compatible with various applications requiring a compact yet powerful diode.
Designed for high-efficiency switching applications requiring up to 70 A forward current. Thermally robust with stud anode configuration and screw mount type. Compact DO-203AB package conforming to industrial form factors.
High surge current capability for protection against transient voltage spikes. Wide operating temperature range suitable for industrial and commercial electronics. Minimal forward voltage drop for energy-efficient performance.
This diode is commonly used in industrial power control, electronic circuit protection, and semiconductor switching tasks. Suitable for discrete semiconductor projects, power supplies, and manufacturing assembly lines.
Explore the Vishay range of semiconductor diodes and rectifiers on EnvMart to find compatible parts for your specific industrial, manufacturing, or electronic design needs.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 70 A.
It has a peak reverse repetitive voltage rating of 1600 V.
This diode is packaged in a DO-203AB type configuration.
The dimensions are approximately 22.9 mm in height, 20.02 mm in length, 17.4 mm in diameter, and 17.35 mm in width.
The diode can handle a peak non-repetitive forward surge current of 1.3 kA.
It operates reliably within a temperature range from -65°C to 180°C.
It features a stud anode diode configuration for effective thermal management.
The maximum forward voltage drop is 1.46 V, which helps in minimizing power loss.
This model uses a screw mount type for installation.
It is commonly used in industrial power control, electronic circuit protection, and semiconductor switching tasks.
The peak reverse current is rated at 4.5 mA.
The diode is manufactured by Vishay, a recognized brand in semiconductor diodes and rectifiers.
