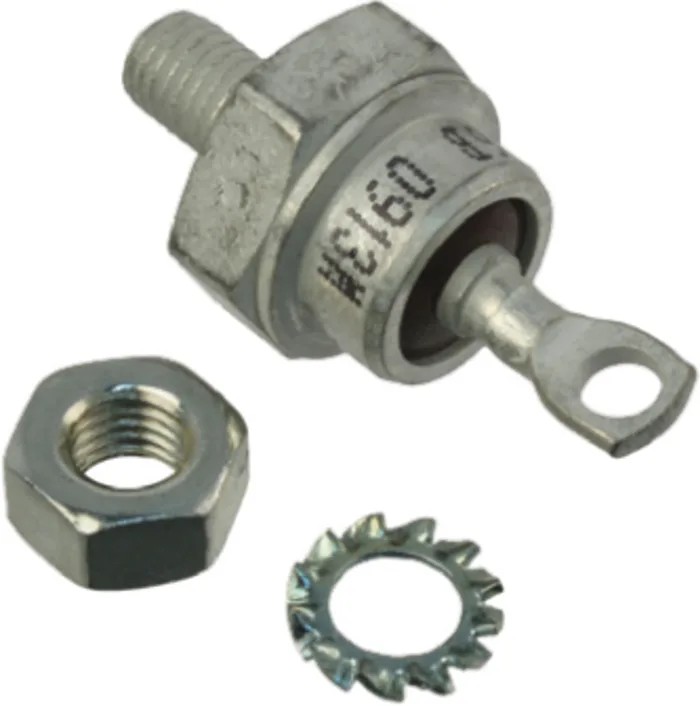

Vishay 1200 V 85 A Standard Recovery Switching Diode 2-Pin DO-203AB VS-88HFR120
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.35mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-88HFR120 |
| Width | 17.35mm |
| Mount Type | Screw |
| Series | VS |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 85A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.8kA |
| Maximum Forward Voltage Vf | 1.2V |
| Peak Reverse Recovery Time trr | 60ns |
| Semikron Danfoss 1200 V 70 A Diode Rectifier Diode 2-Pin E-12 SKN 70/12Brand | Semikron Danfoss |
Key Features
- The diode features a stud anode configuration optimized for high-efficiency switching applications.
- Supports a maximum forward voltage of 1.2 V to ensure minimal power loss during operation.
- Capable of withstanding peak non-repetitive forward surge currents up to 1.8 kA.
- Operates reliably in temperatures ranging from -65°C to 180°C for demanding industrial environments.
- Compact DO-203AB package dimensions of height 22.9 mm, width and diameter 17.35 mm contribute to easy integration.
- Designed for use in power electronics, rectification, and switching applications in industrial and electronic manufacturing.
- Certified RoHS compliant, guaranteeing adherence to environmental and safety standards.
Product Description
Vishay VS-88HFR120 is a high-power, standard recovery switching diode designed in a 2-pin DO-203AB package. It supports a maximum continuous forward current of 85 A and a peak reverse repetitive voltage of 1200 V, making it suitable for use in power electronics and industrial semiconductor switching applications.
The diode’s stud anode configuration ensures stable operation and reliable connection when mounted via screws. Its maximum forward voltage of 1.2 V provides efficient current conduction while minimizing losses. With a peak reverse recovery time of 60 ns, it is optimized for fast switching performance, enhancing efficiency in power rectification circuits.
Operating temperature ranges from -65°C to 180°C allow this diode to perform reliably in harsh and demanding environments such as industrial automation, HVAC controls, and power supplies.
The compact physical dimensions including a height of 22.9 mm and width and diameter of 17.35 mm allow straightforward integration into electronic assemblies with space constraints.
This component is RoHS compliant, ensuring it meets the standards for hazardous substances and environmental safety. The diode features a stud anode configuration optimized for high-efficiency switching applications. Supports a maximum forward voltage of 1.2 V to ensure minimal power loss during operation.
Capable of withstanding peak non-repetitive forward surge currents up to 1.8 kA. Operates reliably in temperatures ranging from -65°C to 180°C for demanding industrial environments. Compact DO-203AB package dimensions of height 22.9 mm, width and diameter 17.35 mm contribute to easy integration.
Designed for use in power electronics, rectification, and switching applications in industrial and electronic manufacturing. Certified RoHS compliant, guaranteeing adherence to environmental and safety standards.
This Vishay switching diode is ideal for applications in industrial electronics, power supplies, Semiconductors manufacturing, and electronic component assemblies. Explore more Vishay semiconductor components and power electronic devices on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-88HFR120 diode is 85 A.
This model has a peak reverse repetitive voltage rating of 1200 V.
The maximum forward voltage supported by this diode is 1.2 V.
The dimensions of the DO-203AB package are a height of 22.9 mm and a diameter of 17.35 mm.
It is capable of withstanding peak non-repetitive forward surge currents up to 1.8 kA.
The diode operates reliably in temperatures ranging from -65°C to 180°C.
This model features a stud anode configuration, allowing for screw mounting.
The peak reverse recovery time is 60 ns, optimizing it for fast switching performance.
Yes, the Vishay VS-88HFR120 is certified RoHS compliant, adhering to environmental and safety standards.
It is designed for use in power electronics, rectification, and switching applications within industrial and electronic manufacturing.
This diode has a pin count of 2.
The diameter of the Vishay VS-88HFR120 diode is 17.35 mm.
