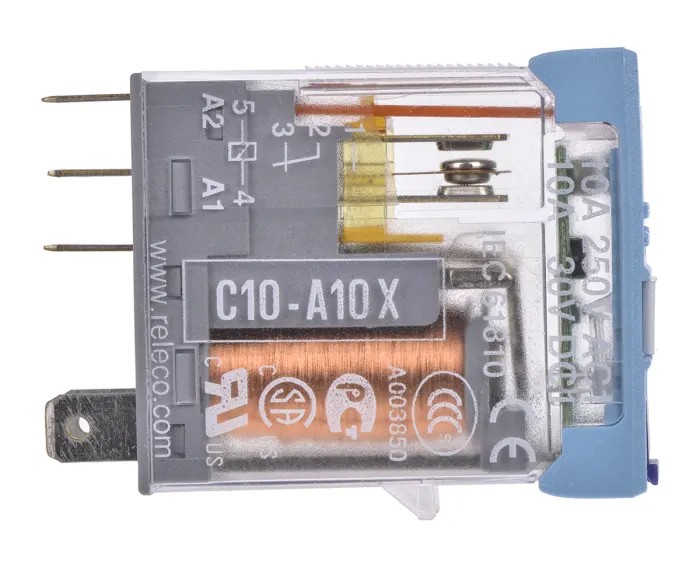

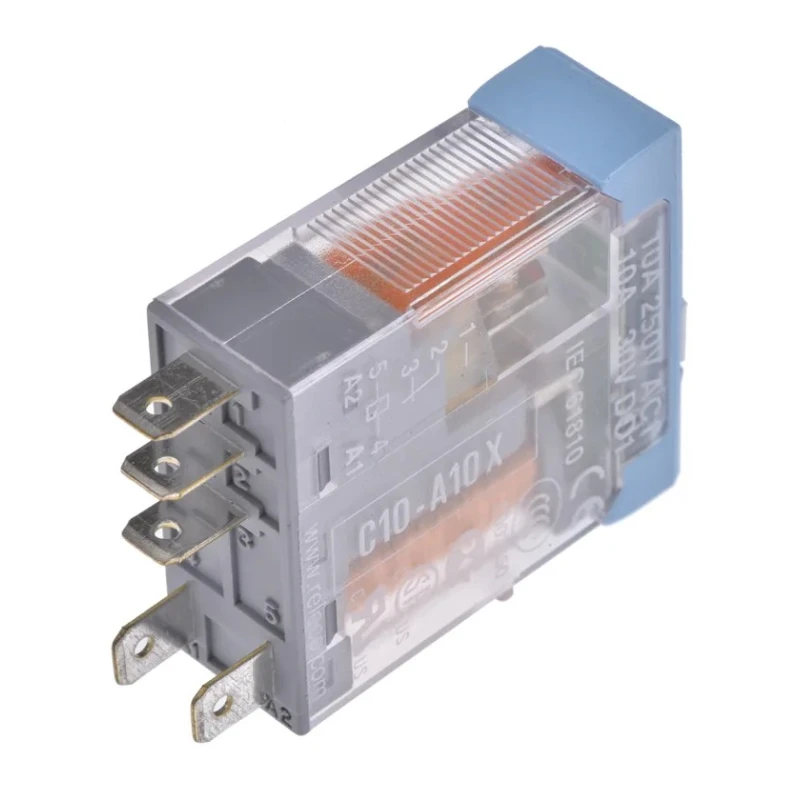

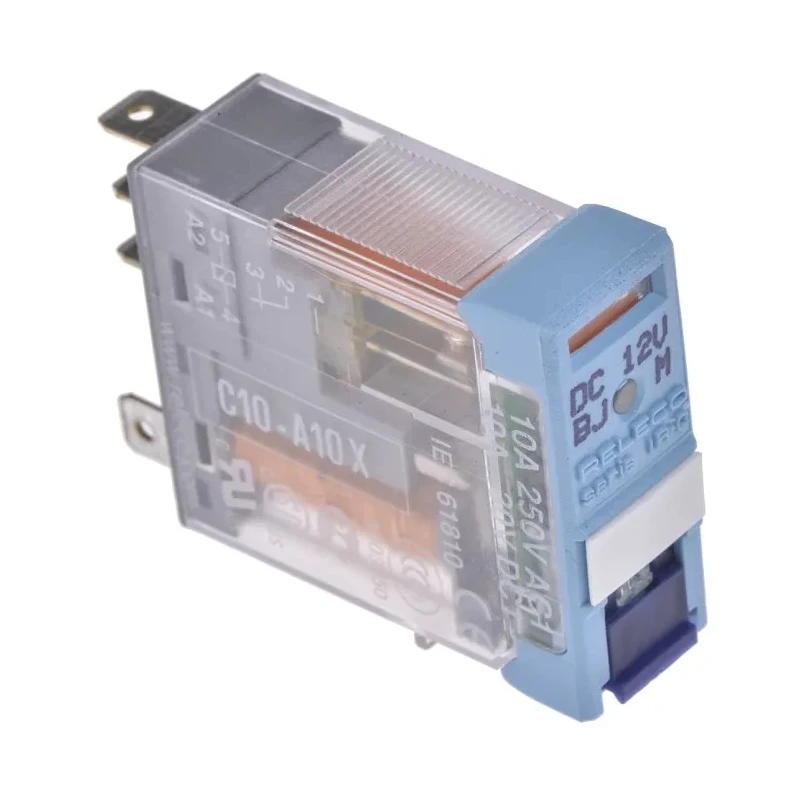

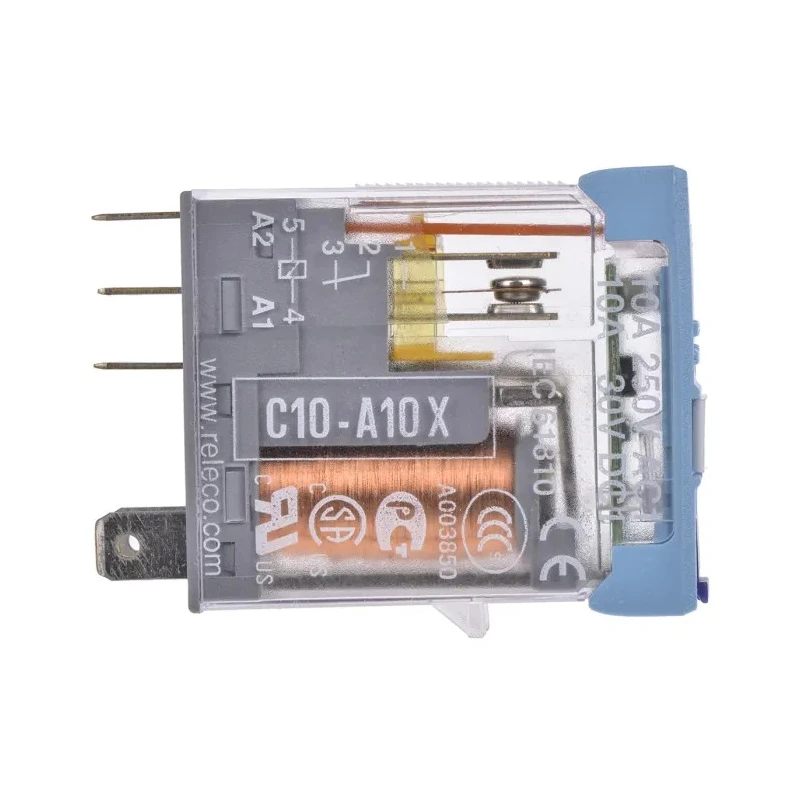

Releco PCB Power Relay 12V DC Coil 10A Switching Current SPDT C10-A10X / DC 12 V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Releco |
| Height | 35.4mm |
| Length | 12.5mm |
| Model | C10-A10X / DC 12 V |
| Width | 12.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | C10 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Quick Connect |
| Standards/Approvals | CSA, EN, IEC, UL, RoHS |
| Coil Resistance | 224Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 650mW |
Key Features
- The relay features a SPDT contact configuration with a 10A switching current rating.
- It operates on a 12V DC coil voltage designed for PCB mounting.
- Incorporates quick connect terminal types for ease of installation.
- The contact material is a durable silver alloy ensuring long-term conductivity.
- Coil resistance is specified at 224 ohms with coil power consumption of 650mW.
- Operating temperature range spans from -40°C to 60°C, suitable for varied environments.
- This relay complies with CSA, EN, IEC, UL, and RoHS standards, ensuring quality and compliance.
Product Description
Releco C10-A10X / DC 12 V PCB Power Relay is engineered for robust performance in electrical, automation, and industrial control systems. Operating on a 12V DC coil voltage, this relay supports a switching current of 10A, making it suitable for a wide range of power relay applications.
The relay features a single pole double throw (SPDT) contact configuration with quick connect terminals designed for reliable PCB mounting. Its silver alloy contacts enhance conductivity and durability, while the coil resistance of 224 ohms and coil power of 650mW optimize energy consumption.
With an operating temperature range from -40°C to 60°C, the relay performs reliably under varying environmental conditions. Compact dimensions (12.5mm length, 12.5mm width, and 35.4mm height) allow integration into tight spaces within industrial assemblies.
Standard features include a test button, LED indication, and a mechanical flag indicator for operational status and troubleshooting convenience. The testing button is dual-function, push to test or lift to latch. For easy marking, a removable label is provided.
Releco relays in this C10 series are designed with robust industrial terminal blades and offer both bifurcated and non-bifurcated contact versions. They support switching voltages up to 250VAC with switching power of 2.5kVA, making them ideal for commercial and industrial automation, HVAC controls, manufacturing equipment, and laboratory instrumentation.
The relay’s CSA, UL (Canada), EN, IEC, and RoHS approvals confirm its adherence to international standards. The relay’s compact PCB mount design supports integration in electronic assemblies requiring reliable power switching.
Typical applications include industrial automation, control panels, signal conditioning, and electronic circuits where efficient switching is critical.
This power relay by Releco offers precision and reliability trusted across multiple demanding industrial sectors. Explore EnvMart’s collection of Power Relays and related components for comprehensive solutions in automation and electrical control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current rating of 10A, making it suitable for various power relay applications.
The relay operates on a 12V DC coil voltage, which is necessary for its functionality.
It features a single pole double throw (SPDT) contact configuration, allowing for versatile switching options.
The relay has compact dimensions of 12.5mm in length, 12.5mm in width, and 35.4mm in height, facilitating integration into tight spaces.
The coil resistance is specified at 224 ohms, which influences the relay's power consumption.
It operates effectively within a temperature range of -40°C to 60°C, suitable for varied environments.
The contact material is a durable silver alloy, enhancing conductivity and ensuring reliable performance.
This relay complies with CSA, EN, IEC, UL, and RoHS standards, confirming its quality and compliance with international regulations.
It incorporates quick connect terminals, designed for ease of installation on PCBs.
The coil power consumption is 650mW, which indicates the energy required for operation.
Typical applications include industrial automation, control panels, signal conditioning, and electronic circuits where efficient switching is critical.
This relay supports switching voltages up to 240V AC, making it versatile for various AC applications.
