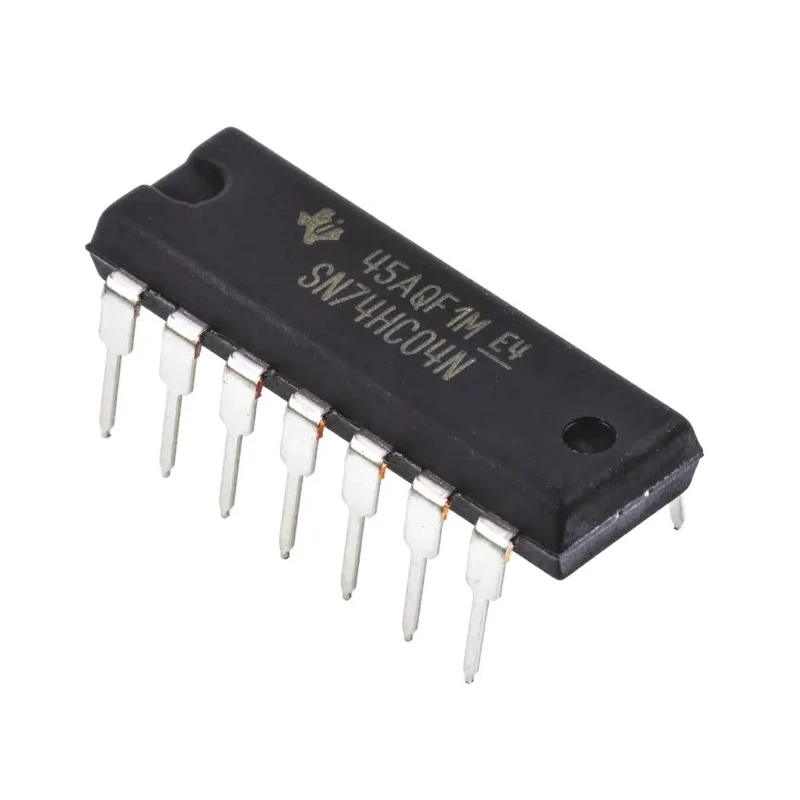

Texas Instruments Inverter Logic IC 6 Elements, 14-Pin PDIP, CMOS Push Pull Output, 2-6V Operating Voltage SN74HC04N

Texas Instruments SN74HC04N is a high-speed CMOS Inverter Logic IC featuring 6 inverter elements integrated into a 14-Pin PDIP package. The device uses silicon gate CMOS technology enabling operating speeds akin to LSTTL while maintaining low power consumption typical of CMOS circuits.

The IC operates comfortably within a voltage range from 2 V to 6 V and supports CMOS inputs and outputs with push-pull output configuration, enhancing signal integrity and power efficiency in digital logic circuit applications.

With a maximum propagation delay of 120 nanoseconds at the specified load capacitance, this inverter IC provides precise signal inversion and timing capabilities suitable for laboratory, industrial, and electronic development projects.

Constructed in a through-hole 14-pin PDIP housing measuring 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, it is designed for easy integration into traditional printed circuit boards.

The device guarantees operation across a broad temperature range from -40°C to 85°C, ideal for varied environments ranging from industrial control systems to commercial electronic designs.

This inverter IC delivers a maximum output current of ±5.2 mA, ensuring sufficient drive for typical digital logic loads. It belongs to the well-known SN74HC04 family renowned for high-speed, low-power CMOS logic compatibility.

Applications include signal inversion in logic circuits, buffer stages, waveform shaping, and other industrial, laboratory instrumentation, and electronics manufacturing environments.

Integrates 6 inverter logic elements per chip for efficient signal processing. Operates reliably between 2 V and 6 V supply voltages. Constructed in a through-hole 14-pin PDIP package compatible with standard PCBs. Supports CMOS input and output, optimizing low power consumption.

Features maximum propagation delay of 120 nanoseconds at CL for precise timing. Rated operating temperature range from -40°C to 85°C ensuring stable performance in varied environments. Dimensions: Length 19.3 mm, Width 6.35 mm, Height 4.57 mm.

Maximum output current ±5.2 mA ensuring robust signal drive capability. Part of the SN74HC04 series offering high-speed CMOS logic functionality. Designed for through-hole mounting to facilitate traditional assembly methods.
