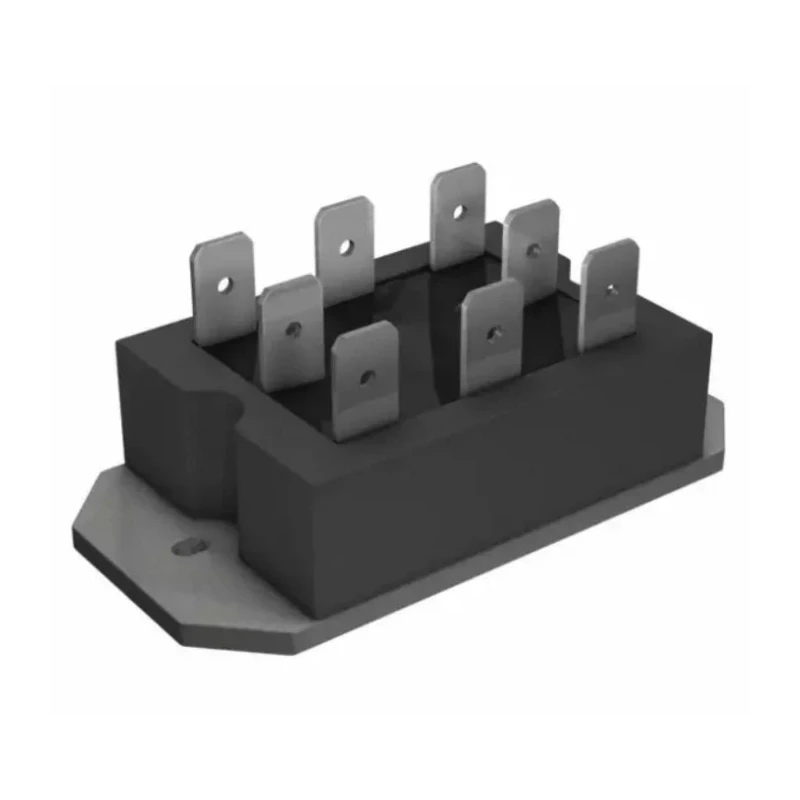

Vishay Thyristor Module 1200 V 400 A 40 A 60 mA 1.4 V 6-Pin VS-P405W

Vishay VS-P405W Thyristor Module is an advanced power semiconductor device optimized for controlling high current and voltage applications. With a rated average on-state current of 40 A and repetitive peak reverse voltage of 1200 V, it provides robust performance in electronic circuits requiring controlled rectification.

Its design includes a screw mount type for secure mechanical attachment and 6-pin configuration for flexible electrical connections. The maximum gate trigger current of 60 mA and a peak on-state voltage of only 1.4 V contribute to efficient switching with minimal power loss. The module operates reliably at temperatures up to 125°C, suitable for demanding industrial environments.

Dimensions of 63.5 mm length, 32.5 mm width, and 15.5 mm height make it compact yet powerful. It belongs to the VS-P400 Series of single-phase and 3-phase fully controlled bridge rectifiers featuring isolated base plates, enhancing safety and ease of installation.

This module is ideal for industrial automation, manufacturing equipment, electronic power control circuits, and semiconductor applications requiring durable and precise switching functions. It supports improved production efficiency by facilitating direct component integration into machinery.

Repetitive peak reverse voltage rating of 1200 V provides high voltage handling capability. Surge current rating of 400 A ensures tolerance to transient surges. Screw mounting type for mechanical stability in installation.

Maximum gate trigger current of 60 mA allows precise control of switching. Compact 6-pin module design suitable for multiple circuit topologies. Operating temperature up to 125°C supports harsh industrial conditions. Low peak on-state voltage decreases energy losses during operation.

VS-P400 Series known for reliable, fully controlled bridge rectifiers with isolated base plates. Applications include industrial, power electronics, semiconductor manufacturing, and electronic components. Explore our Electronics & Electricals category for more semiconductor components and modules suitable for various industrial and electronic applications.
