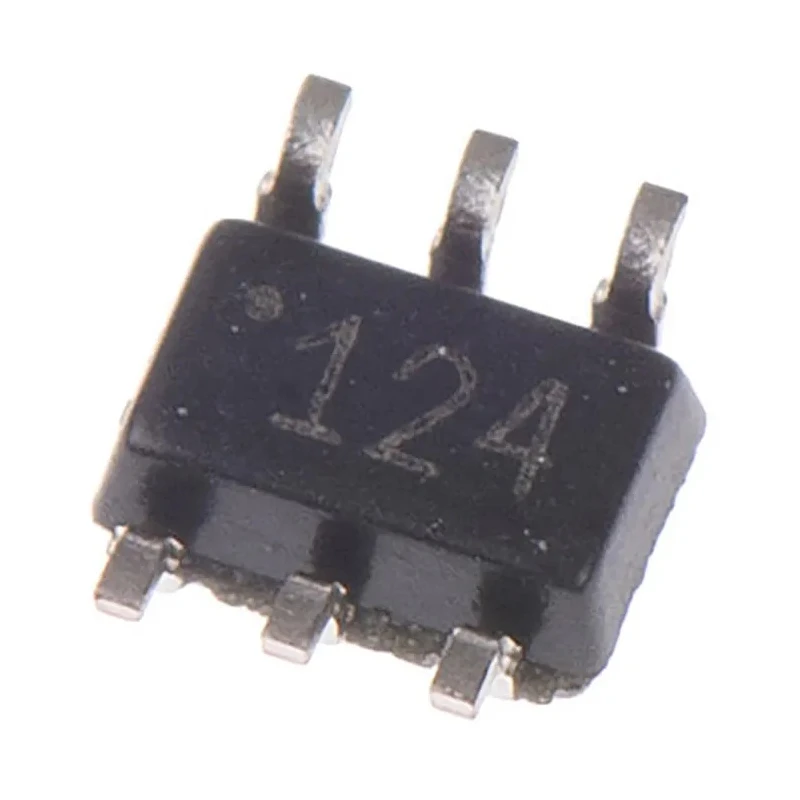

Texas Instruments Schmitt Trigger Input CMOS Inverter 2 Elements, 6-Pin SC-70 Package SN74LVC2G14DCKT

Texas Instruments SN74LVC2G14DCKT is a dual Schmitt Trigger input CMOS inverter IC characterized by robust switching performance and low voltage operation. This device integrates two inverter elements with Schmitt trigger inputs, providing excellent noise immunity and signal conditioning capabilities for digital logic circuits.

Operating within a supply voltage range of 1.65 to 5.5 V, the SN74LVC2G14DCKT is ideal for low-voltage logic families and offers compatibility with LVTTL/TTL input signals, while providing output levels in LVCMOS standards. The maximum propagation delay of 10.5 ns at a capacitive load ensures timely switching for precise timing control in digital systems.

Housed in a compact 6-pin SC-70 surface mount package measuring 2 mm in length, 1.25 mm in width, and 900 μm in height, it is well-suited for space-constrained applications including portable instrumentation, communication devices, and embedded systems.

With an operating temperature range from -40°C up to 85°C, this inverter suits both industrial and commercial applications requiring reliability under harsh conditions. Its maximum output current of ±32mA enables driving a variety of moderate loads without additional buffering.

Applications include noise-sensitive digital circuits, signal conditioning, waveform shaping, and interface level translation in embedded control, automation, data acquisition, and communication equipment.

Contains 2 inverter elements with Schmitt trigger inputs for enhanced signal integrity. Wide operating voltage range from 1.65 V to 5.5 V supports diverse logic families. Compact SC-70 package enables space-efficient PCB layouts.

Fast propagation delay suitable for high-performance digital circuits. Industrial temperature rating for robust operation in variable environments. Output drive current capacity supports interfacing with multiple digital loads.

Surface mount package designed for automated manufacturing processes.

This device is part of the SN74LVC2G14 series by Texas Instruments, well-regarded for reliable low-voltage CMOS logic integration. For detailed technical documentation, designs, and compatibility, refer to Texas Instruments official resources. Explore our Electronics & Electricals semiconductor catalog for complementary ICs and components.
