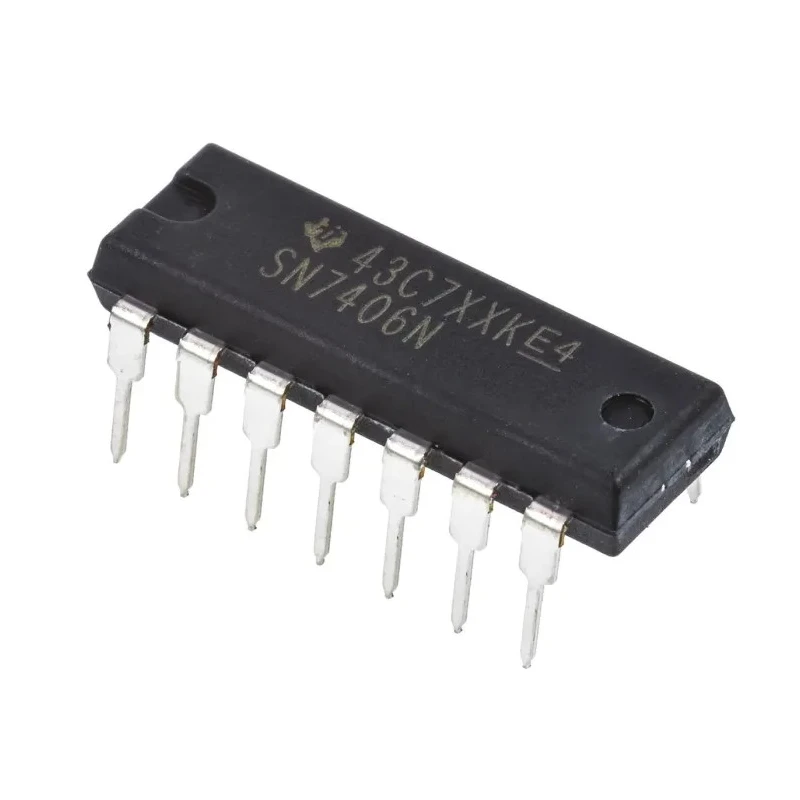

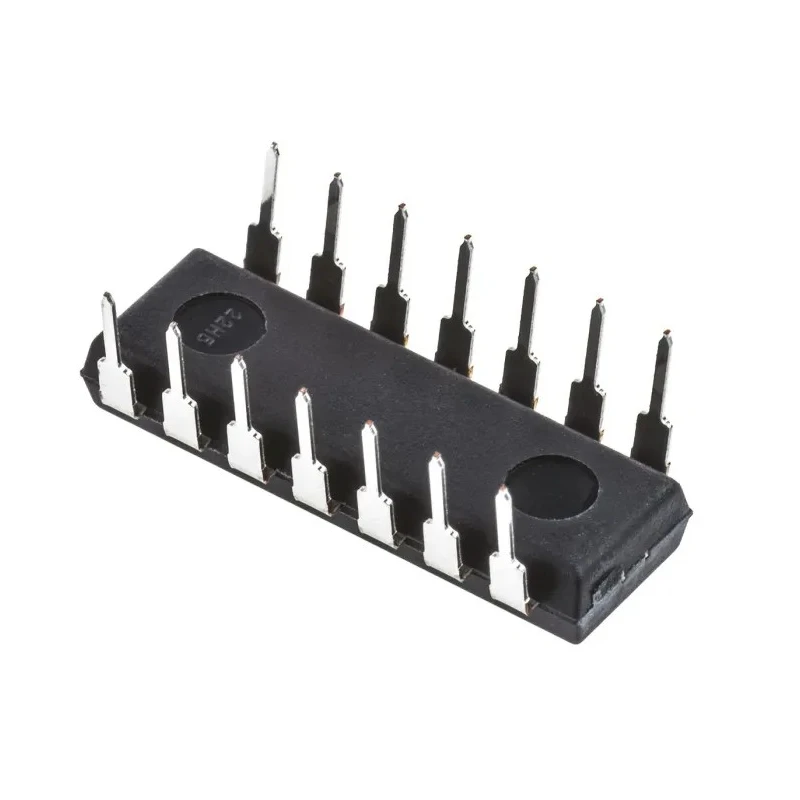

Texas Instruments Inverter Logic IC 6 Elements, TTL Input, Open Collector Output, 14-Pin PDIP SN7406N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN7406N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Output type | Open Collector |
| Series | SN7406 |
| Input Type | TTL |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | 74 |
| Logic Function | Inverting Buffer |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.25mA |
| Maximum Propagation Delay Time @ CL | 23ns |
| Maximum Low Level Output Current | 40mA |
Key Features
- Operates at supply voltages between 4.75 V and 5.25 V.
- Through hole mount type ensures easy PCB integration.
- Maximum propagation delay time of 23 nanoseconds at capacitive load.
- Supports 6 elements per chip delivering reliable inverting buffer logic.
- Wide operating temperature range from 0 to 70 degrees Celsius for diverse environments.
- Standard 74 logic family, compatible with TTL logic circuits.
- Maximum low-level output current capability up to 40 mA.
- Open collector output type suitable for wired-AND logic applications.
Product Description
Texas Instruments SN7406N inverter logic IC is a 14-pin PDIP device designed for industrial and laboratory electronic applications requiring inverting buffer functions. This device belongs to the 74xx standard TTL logic family and offers six independent inverting buffers with open collector outputs providing versatile interfacing options for various digital circuits.
The SN7406N operates reliably over a supply voltage range of 4.75 to 5.25 volts and supports through hole mounting, facilitating easy assembly on printed circuit boards. Its propagation delay time of 23 nanoseconds ensures fast switching performance in timing-critical applications. With a maximum low-level output current of 40 mA and maximum high-level output current negative 0.25 mA, it supports robust driving capability.
The IC's physical dimensions include a length of 19.3 mm, width of 6.35 mm, and height of 4.57 mm, fitting compact electronic designs. Suitable for use within standard operating temperature ranges from 0 to 70 °C, this IC suits both commercial and industrial electronic manufacturing environments.
Applications include logic signal inversion, buffer interfacing, digital control systems, and integration within embedded systems and PCB-based electronic projects. The device does not include Schmitt trigger inputs and is not certified for automotive standards. The open collector output allows wired-AND logic combination and can be used in relay driving circuits, LED displays, and other switching applications.
Operates at supply voltages between 4.75 V and 5.25 V. Through hole mount type for easy PCB integration. Maximum propagation delay time of 23 ns at capacitive load. Contains 6 inverting buffer elements per chip. Suitable for operating temperatures from 0 to 70 °C.
Compact dimensions: 19.3 mm (L) x 6.35 mm (W) x 4.57 mm (H). TTL 74 logic family compatible device. Open collector output type allowing wired-AND logic. Maximum low-level output current up to 40 mA. Non-Schmitt trigger input without automotive compliance.
Reliable for electronics manufacturing, industrial control, laboratory instrumentation, and embedded digital circuits design. Explore similar Inverter ICs in the Semiconductor category on EnvMart for comprehensive component selections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at supply voltages between 4.75 V and 5.25 V.
It contains 6 inverting buffer elements per chip.
The maximum propagation delay time is 23 nanoseconds at capacitive load.
It features an open collector output type suitable for wired-AND logic applications.
The maximum low-level output current capability is up to 40 mA.
The dimensions are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
It is suitable for operating temperatures from 0 to 70 degrees Celsius.
This unit supports through hole mounting for easy PCB integration.
Yes, it is compatible with the standard 74 logic family, which includes TTL logic circuits.
The maximum high-level output current is negative 0.25 mA.
It is suitable for logic signal inversion, buffer interfacing, and integration within embedded systems and PCB-based electronic projects.
The package type is PDIP (Plastic Dual In-line Package).
