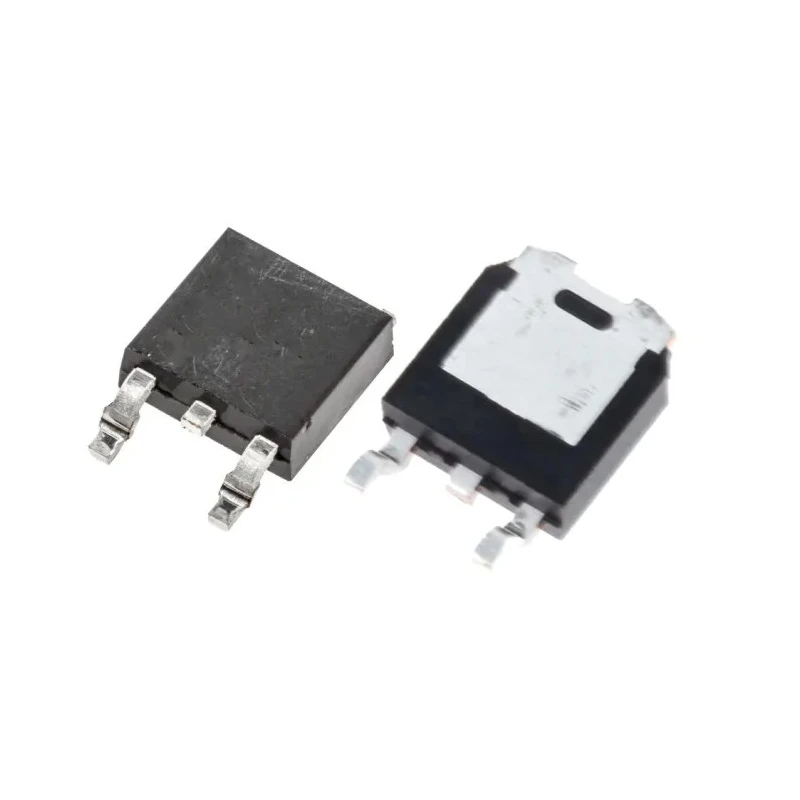

STMicroelectronics Power MOSFET, 3-Pin Surface Mount TO-252 Package, Maximum Power Dissipation 15W STD1802T4

STMicroelectronics STD1802T4 Power MOSFET is a high-performance semiconductor device manufactured using advanced Planar technology with a Base Island layout. This construction provides exceptional high gain and very low collector to emitter saturation voltage, which enhances its efficiency and reliability in electronic circuits.

This MOSFET device is qualified for automotive applications, indicating its suitability for demanding environments and compliance with rigorous standards. The transistor comes in a compact TO-252 DPAK surface mount package with 3 pins, facilitating easy integration into printed circuit boards.

With a maximum power dissipation of 15W and an operating temperature range from -65°C to 150°C, the STD1802T4 offers robustness and durability for various industrial and automotive applications. Its fast switching speed makes it ideal for high efficiency, low voltage switching scenarios.

Typical applications include cold cathode fluorescent lamp (CCFL) drivers, voltage regulators, and relay drivers where reliable switching and power control are essential. The small form factor with length 6.6mm, width 6.2mm, and height 2.17mm allows for use in compact electronic assemblies.

Manufactured in Planar technology with Base Island layout for superior performance. Qualified for automotive standards ensuring high reliability. Features very low saturation voltage and high current gain. Compact surface mount TO-252 DPAK package with 3 pins for easy PCB assembly.

Fast-switching speed suitable for efficient power control. Applications in CCFL drivers, voltage regulators, and relay drivers. Robust operation from -65°C to 150°C temperature range. Compact dimensions of 6.6mm length, 6.2mm width, and 2.17mm height.

This Power MOSFET by STMicroelectronics is ideal for automotive, industrial, and electronic manufacturing applications requiring reliable and efficient switching devices. Explore more semiconductor components in the Power MOSFET category on EnvMart for comprehensive electronic solutions.
