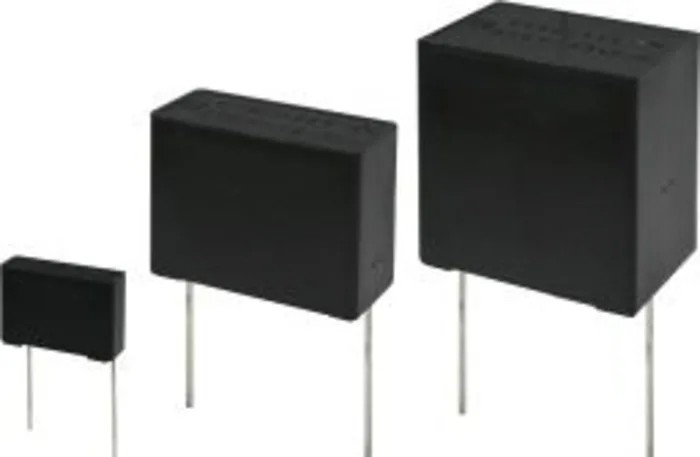

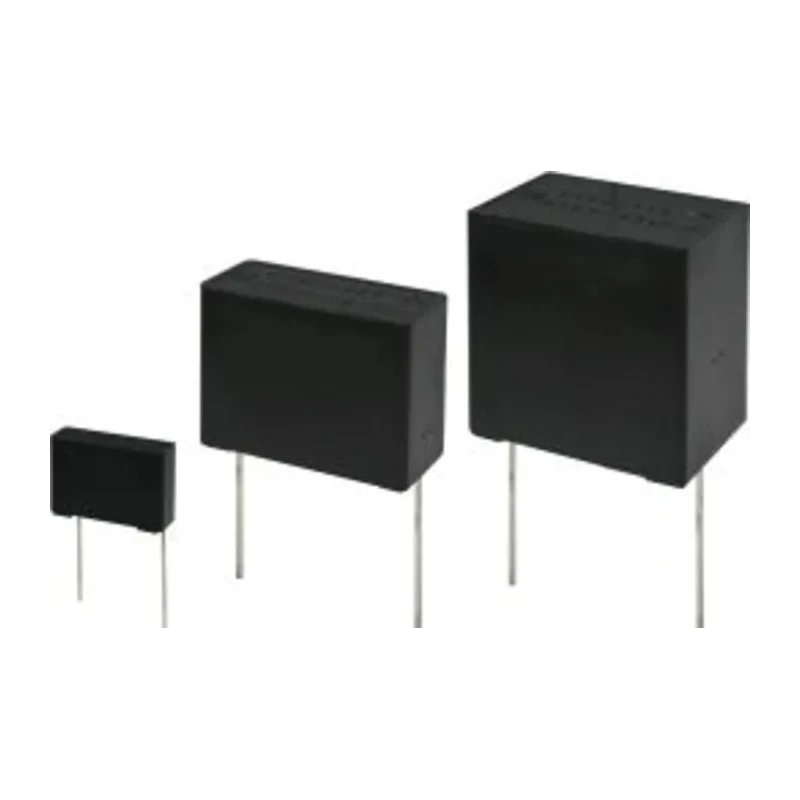

Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 150 nF Capacitance, 275V AC Rating, Through Hole Mount ECQUAAF154TA

Panasonic ECQUAAF154TA is a high-quality Film Capacitor from the ECQUA series featuring a capacitance of 150 nF with a tolerance of ±10 % and rated for 275V AC. The capacitor is designed as an X2 suppression class component suitable for interference suppression in automotive and industrial electrical systems.

The capacitor uses a through hole mount with a 15 mm lead pitch for easy integration into printed circuit boards. It offers robust performance including high safety functions and thermal shock resistance, enduring harsh operational environments such as temperature cycles between -40 °C and 85 °C for 1000 cycles.

Constructed with flame-retardant plastic casing and non-combustible resin, this capacitor ensures enhanced fire safety. It also has a dissipation factor of 0.1 %, confirming efficient electrical performance.

Highly resistant to humidity, it meets stringent THB testing criteria of 85 °C, 85 % humidity, 240 V.AC for 1000 hours, which ensures stable operation even in demanding automotive applications. The Panasonic ECQUAAF154TA complies with international standards UL 60384-14, EN 60384-14, and CSA E60384-14 along with the automotive industry standard AEC-Q200.

Typical dimensions include 17.5 mm length, 13 mm height, 6 mm width, with 4 mm lead length and 0.6 mm lead diameter for precise fitment. This product is manufactured in China and offered in bag packaging format.

High safety design with integrated safety function for dependable operation. High humidity resistance tested by THB method for long-term reliability. Excellent thermal shock resistance withstands severe temperature cycling.

Flame-retardant plastic case and non-combustible resin enhance fire protection. Through hole mount style ensures secure PCB attachment using solder terminals. Meets automotive quality standard AEC-Q200 ensuring high reliability.

Compact dimensions suitable for automotive and industrial electronics. Compliant with UL, EN, and CSA standards for international safety certification.

The Panasonic ECQUAAF154TA Film Capacitor is ideal for applications requiring reliable interference suppression and robust environmental endurance such as automotive electrical systems, industrial controls, and electronic devices. Its stable electrical characteristics and compliance to safety standards make it suitable for professional and industrial use.
