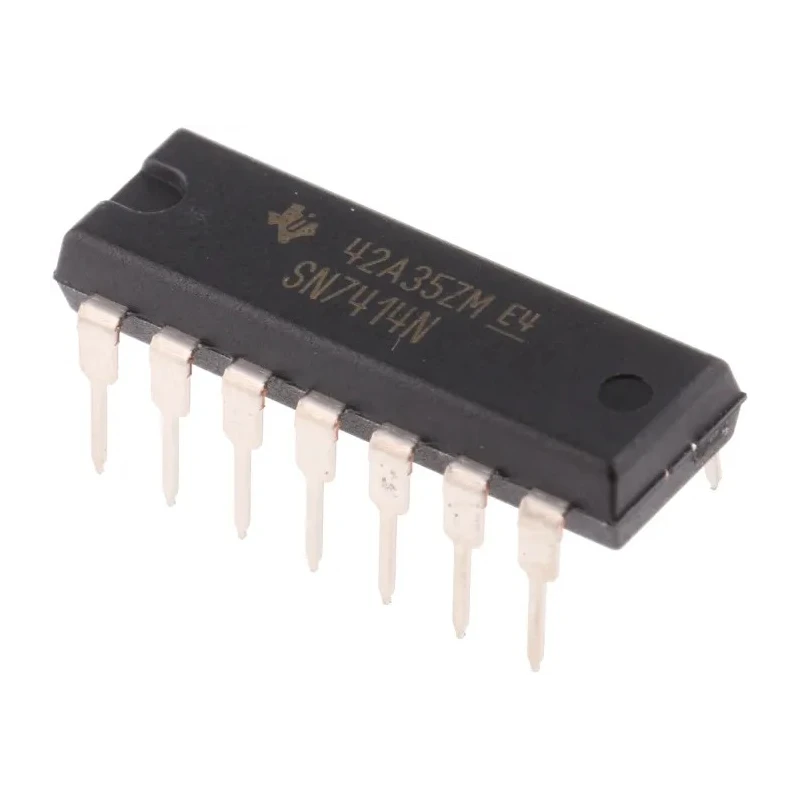

Texas Instruments Schmitt Trigger Input Inverter 6 Elements, 14-Pin PDIP SN7414N

Texas Instruments SN7414N is a high-performance Schmitt Trigger input inverter IC encapsulated in a 14-pin PDIP package. Designed for robust digital logic applications, this device integrates six inverters, featuring Schmitt trigger inputs that enhance noise immunity and signal accuracy in demanding electronic circuits.

Operating with a supply voltage range of 4.75V to 5.25V, this inverter is part of the widely used 74xx TTL logic family, ensuring compatibility with multiple semiconductor components across industrial and commercial platforms. Its maximum propagation delay of 22ns at standard load conditions supports efficient switching performance in logic circuits.

The device is rated for maximum output currents of -0.8mA (high level) and 16mA (low level), providing reliable drive capabilities for downstream logic inputs. Its operating temperature span from 0°C to 70°C makes it suitable for various industrial and commercial applications requiring standard thermal performance.

Featuring through-hole mount type and compact dimensions (19.3mm length, 6.35mm width, 4.57mm height), the SN7414N is ideal for easy integration in circuit boards using traditional insertion processes.

Contains 6 inverter elements with Schmitt trigger input functionality. Robust noise immunity from Schmitt trigger input design. Operates at 4.75V to 5.25V supply voltage. Maximum propagation delay time of 22 nanoseconds.

Compatible with 74 logic family TTL devices. Output current ratings: -0.8mA (high) and 16mA (low). Operating temperature ranges from 0°C to 70°C. Mounting type: Through Hole with 14-pin PDIP package. Compact size: 19.3mm length, 6.35mm width, 4.57mm height.

This inverter IC is well suited for industrial, electronic manufacturing, and laboratory equipment applications requiring efficient logical signal processing. It can be widely used in digital logic circuits, automotive electronics, and automation systems due to its reliable electrical performance and standard package form factor.
