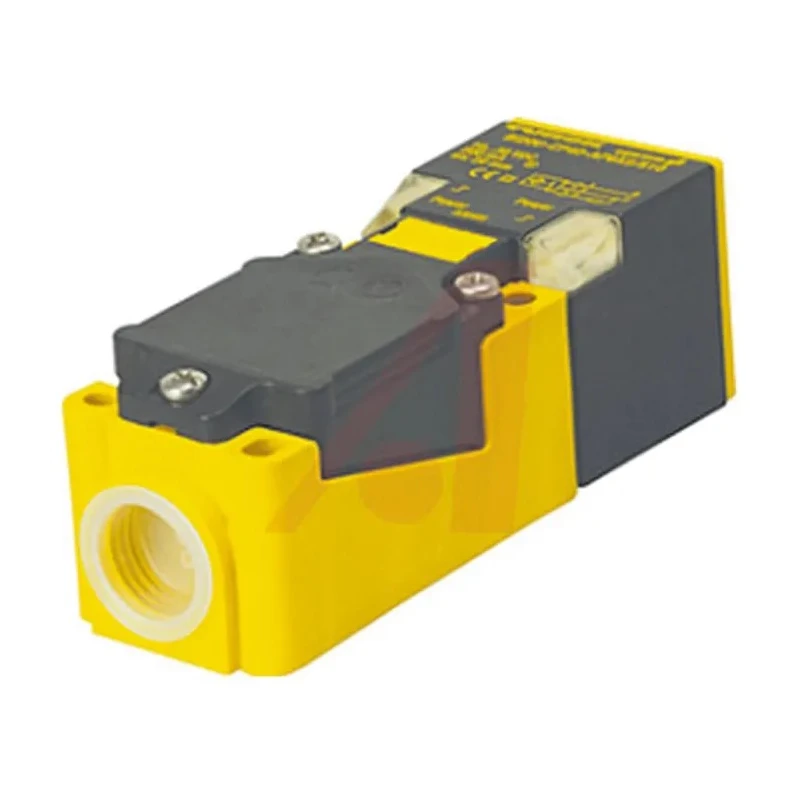

Turck Block Inductive Proximity Sensor M20 PNP Output 30V DC 200mA 15mm Detection BI15-CP40-AP6X2
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Turck |
| Length | 114mm |
| Model | BI15-CP40-AP6X2 |
| Depth | 40mm |
| IP Rating | IP67 |
| Width | 40mm |
| Mount Type | Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | PNP |
| Series | CP40 |
| Maximum Operating Temperature | 70°C |
| Thread Size | M20 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Terminal Chamber |
| Body Style | Block |
| Shielding | Unshielded |
| Maximum Switching Frequency | 150Hz |
| Maximum Supply Voltage | 30V dc |
| Materials Detected | Inductive |
| Maximum Detection | 15mm |
Key Features
- The sensor features a robust PBT block-style housing resistant to thermal and mechanical stress.
- It operates with a PNP output type and handles up to 200 mA switching current at 30 V DC supply voltage.
- Designed for flush mount installation with an M20 thread size for easy mounting.
- It maintains operation in harsh environments with an IP67 rating and wide temperature range from -25°C to 70°C.
- Unshielded design provides a maximum switching frequency of 150 Hz and a repeat accuracy of ±2% for precise detection.
- LED indicators provide clear operating status feedback for quick monitoring.
- Reverse polarity and short-circuit protection enhance device reliability and safety.
- Suitable for industrial applications including manufacturing, agricultural equipment, medical, and pharmaceutical production.
Product Description
Turck BI15-CP40-AP6X2 Block Inductive Proximity Sensor with M20 thread and PNP output type is engineered for robust and precise short-range detection at up to 15 mm sensing distance. Its Polybutylene Terephthalate (PBT) block-style housing provides excellent thermal resistance and mechanical durability, making it suitable for demanding industrial environments.
Designed for flush mount applications, this sensor operates within a broad temperature range from -25°C to 70°C and offers an IP67 ingress protection rating that ensures reliable operation in dust and water-exposed settings. The device supports a maximum switching current of 200 mA at 30 V DC, with an unshielded sensor type allowing a switching frequency up to 150 Hz.
It features LED indicators to offer immediate visual feedback on operating status, helping monitoring and troubleshooting processes. Additionally, built-in reverse polarity and short-circuit protection safeguard the sensor in complex circuit environments, enhancing longevity and reducing maintenance needs. The sensor delivers repeat accuracy of ±2% full scale, which ensures highly reliable presence detection with minimal error.
Ideal for industrial automation and control gear, this Turck proximity sensor finds applications in sectors such as manufacturing lines, agricultural machinery, bottling plants, medical equipment, and pharmaceutical production environments requiring precise, contactless detection of ferrous metal objects.
Robust PBT block-style housing for enhanced durability. Flush mount with M20 threading for secure installation. Maximum sensing distance of 15 mm for short-range detection. Operating temperature range from -25°C to 70°C for versatile use.
IP67 protection against dust and water ingress. PNP output type with 200 mA switching current capability. Unshielded sensor design with a maximum switching frequency of 150 Hz. LED indicator for operational status display.
Reverse polarity and short-circuit protection for device safety.
This product is manufactured in Germany, reflecting Turck's commitment to quality and reliability. The BI15-CP40-AP6X2 offers long-term service life and consistent performance for demanding industrial and automation applications. Browse the Electronics & Electricals Sensors categories on EnvMart for more industrial-grade sensors and control equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 15 mm.
It operates within a temperature range from -25°C to 70°C.
This sensor features a PNP output type.
It can handle a maximum switching current of 200 mA.
The sensor has an IP67 rating, providing protection against dust and water ingress.
It is designed to detect inductive materials, specifically ferrous metal objects.
The maximum supply voltage for this sensor is 30 V DC.
The housing is made of Polybutylene Terephthalate (PBT), which provides excellent thermal and mechanical resistance.
The maximum switching frequency is 150 Hz.
It is designed for flush mount installation with an M20 thread size for secure fitting.
Yes, it includes reverse polarity and short-circuit protection to enhance reliability and safety.
The dimensions of this unit are 114 mm in length, 40 mm in width, and 40 mm in depth.
