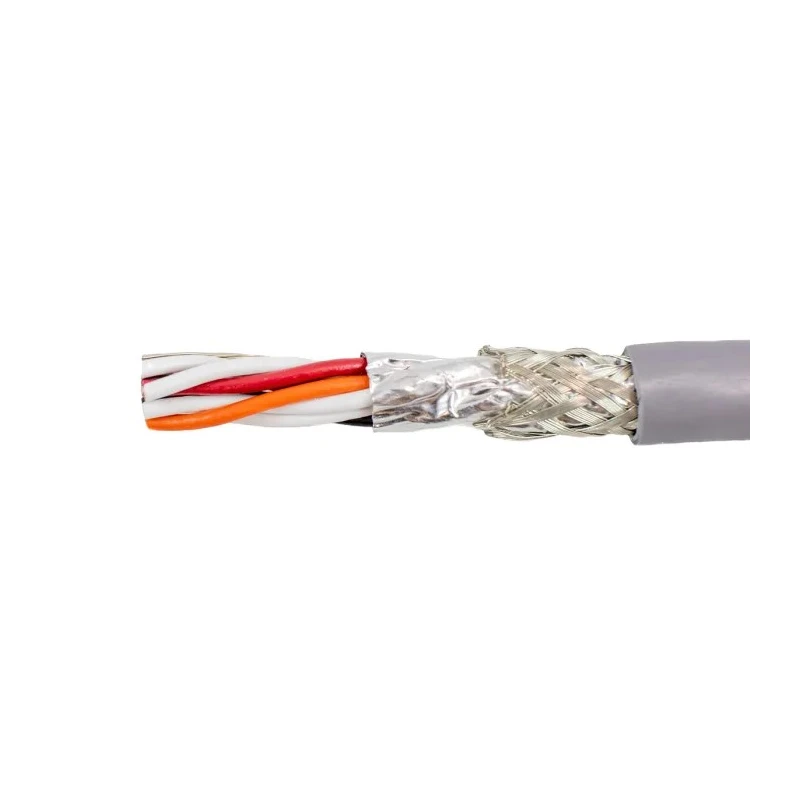

Alpha Wire Alpha Essentials Communication & Control Series Data Cable 4 Pairs 8 Cores 0.22 mm² 30 m Grey Sheath 6318 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.22 mm² |
| Model | 6318 SL005 |
| Cable Length | 30m |
| Series | Alpha Essentials Communication & Control |
| Outside diameter | 10.49mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS, ECCN |
| Jacket Colour | Grey |
| Fire Behaviour | Flammability Test: VW-1 |
| Number of Strands | 7 |
| Core Strands | 7 x 32AWG |
| Size of Strands | 32AWG |
| Number of Pairs | 4 |
| Fire BehaviourFlammability Test | VW-1 |
| Flammability Test | VW-1 |
| Audio systems | speakers, microphones, intercoms |
| Security systems | alarms, cameras, sensors |
Key Features
- The cable has 4 twisted pairs and 8 cores, suitable for complex wiring systems.
- Constructed with tin copper wire conductors to ensure excellent conductivity and durability.
- Cross sectional area of 0.22 mm² with 7 strands of 32AWG size for flexible and reliable connections.
- Features a grey polyvinyl chloride (PVC) sheath providing protection and durability at temperatures ranging from -20°C to 80°C.
- Rated for 300V operating voltage suitable for industrial and commercial applications.
- Complies with RoHS and ECCN standards ensuring safety and environmental compliance.
- The cable outside diameter measures 10.49 mm to optimize space in wiring conduits.
- Meets the VW-1 flammability test standard for fire safety in installation environments.
Product Description
Alpha Wire 6318 SL005 Alpha Essentials Communication & Control Series Data Cable with 4 pairs and 8 cores, each conductor sized at 0.22 mm² cross sectional area and insulated with PVC grey sheath, length 30 meters. Operating voltage is rated at 300V, with temperature tolerance from -20°C to 80°C, this cable is engineered to meet rigorous industrial and commercial communication needs.
This cable features tin copper wire conductors with 7 strands of 32AWG ensuring flexibility and durability for reliable signal transmission. The grey polyvinyl chloride jacket provides physical protection and resistance to environmental challenges, while its 10.49 mm diameter optimizes space and ease of installation.
Tested for fire safety under the VW-1 flammability standard and compliant with RoHS and ECCN standards, it is suitable for a variety of applications including audio systems like speakers and microphones, data transmission protocols such as RS-232, RS-422, and RS-485, security systems including alarms, cameras, sensors, as well as industrial control and instrumentation.
Its robust construction and versatile use cases make it ideal for laboratory, industrial automation, HVAC, manufacturing, and commercial systems requiring dependable communication and control wiring solutions.
The cable has 4 twisted pairs and 8 cores, supporting complex wiring requirements. Constructed with tin copper wire conductors for excellent conductivity and reliability. 0.22 mm² cross sectional conductor area and strand size 32AWG offer flexibility and strength.
Grey PVC jacket ensures durability and temperature resistance from -20°C to 80°C. Rated for 300V operating voltage suitable for industrial applications. Complies with RoHS and ECCN standards promoting environmental and safety compliance.
Meets VW-1 flammability test, enhancing fire safety assurance. Optimized diameter of 10.49 mm eases installation in wiring ducts. Applications include audio, data transmission, security, instrumentation, and control systems.
Explore a comprehensive range of communication and control cables at EnvMart for your industrial and commercial wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 80°C.
This cable is rated for an operating voltage of 300V.
It features 8 cores organized into 4 twisted pairs.
The cross-sectional area of the conductors is 0.22 mm².
The conductors are made of tin copper wire, and the jacket is constructed from polyvinyl chloride (PVC).
The outside diameter of the cable measures 10.49 mm.
It complies with RoHS and ECCN standards, ensuring safety and environmental compliance.
This model meets the VW-1 flammability test standard for fire safety.
The cable can operate in temperatures ranging from -20°C to 80°C.
It is suitable for audio systems, data transmission protocols, security systems, and industrial control applications.
The cable length is 30 meters.
Each core consists of 7 strands of 32AWG size.
