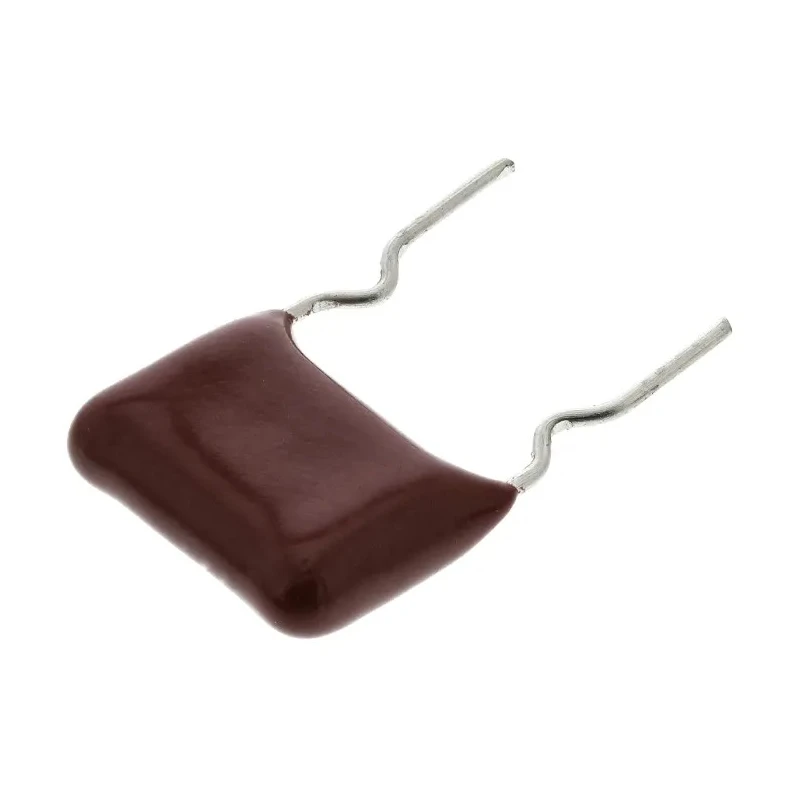

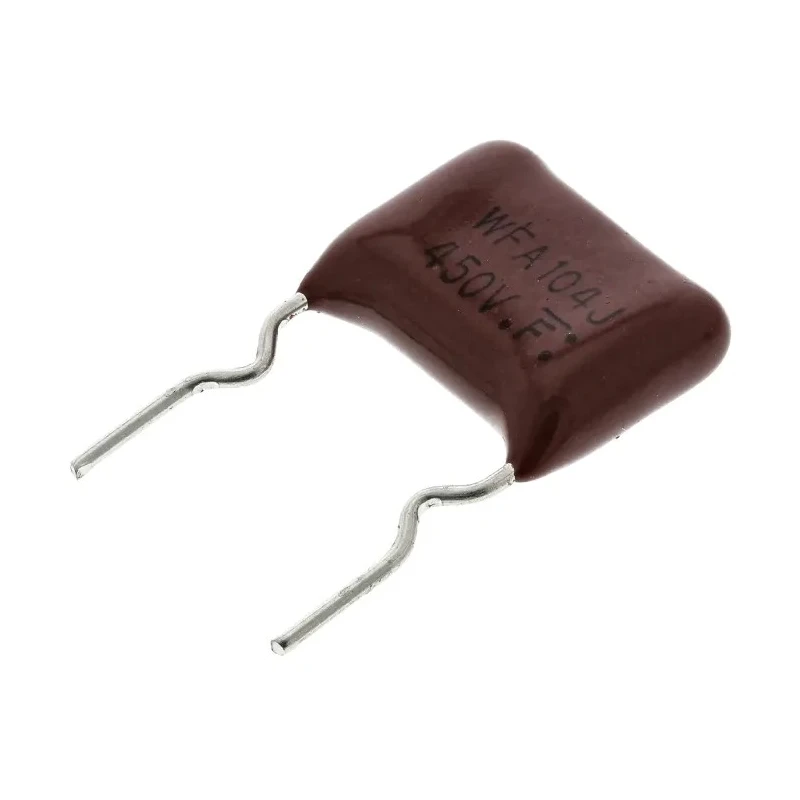

Panasonic ECWF(A) Film Capacitor, 100 nF, ±5% Tolerance, 450 V dc Rated Voltage, Through Hole Mount ECWF2W104JAQ

Panasonic ECWF2W104JAQ film capacitor is a metallised polypropylene film capacitor designed for high current and high frequency electronic circuits. It delivers a capacitance of 100 nF with a tight ±5% tolerance and is rated for 450 V dc, making it suitable for demanding active filter and high frequency circuit applications.

This capacitor features a through hole mount type and has compact dimensions of 18.8 mm height, 13 mm length, and 5.1 mm width with a lead diameter of 0.6 mm and a lead pitch of 10 mm. It is encapsulated in a self-extinguishing material compliant with UL94V-0 standards to provide durable and safe operation in various industrial and commercial electronics contexts.

The operating temperature range from -40°C to 105°C ensures reliable performance across harsh environments including automotive and industrial use. Compliance with automotive standard AEC-Q200 along with CSA E60384-14, UL 60384-14, and EN 60384-14 safety standards confirms its quality and safety credentials.

Panasonic's ECWF(A) series capacitors are known for their low loss, low noise characteristics, and compact size, offering approximately 50% smaller footprint compared to similar series, enhancing PCB space saving. This model's dissipation factor of 0.1% supports high efficiency and stable circuit operation.

Manufactured to meet rigorous safety and performance standards. Ideal for usage in high frequency, high current, and active filter circuit applications in industrial, automotive, and commercial electronics. Compact and reliable component for advanced PCB designs requiring space efficiency.

Ensures low hum noise with superior frequency characteristics for sensitive electronic systems.

Available in packaging bags, Panasonic ECWF2W104JAQ capacitors facilitate improved production efficiency and precision assembly with through hole lead wires. This product's robust specifications make it a trustworthy choice for engineers and manufacturers engaged in precision electronics manufacturing and maintenance.
