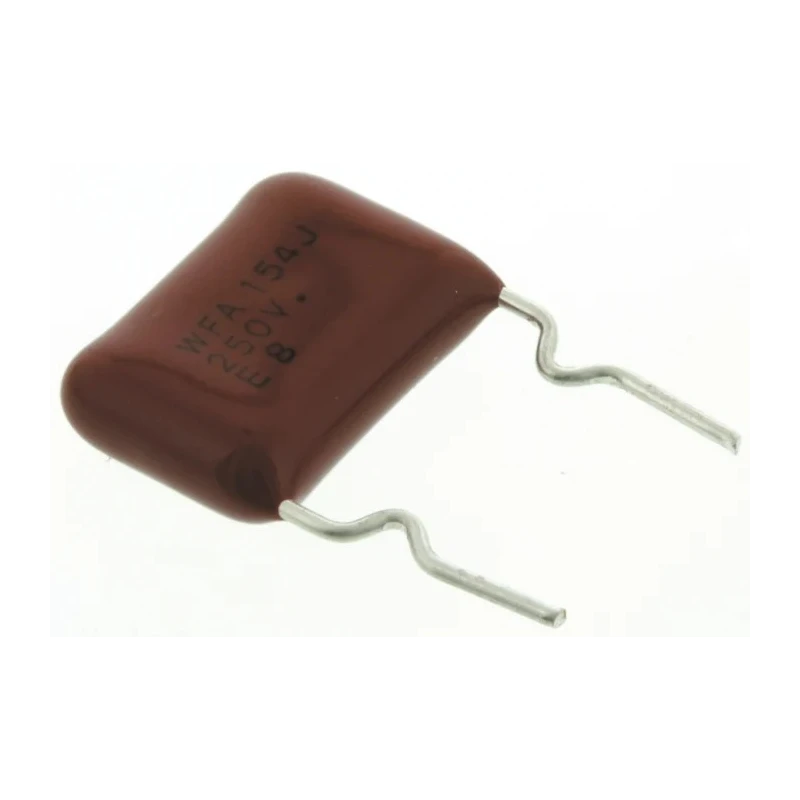

Panasonic ECWF(A) Film Capacitor 150 nF ±5% 250 V dc Through Hole ECWF2154JAQ

Panasonic ECWF2154JAQ is a metallised polypropylene film capacitor designed for high current and high frequency applications with a capacitance of 150 nF and a rated DC voltage of 250 V. With a tolerance of ±5%, it ensures accurate and stable performance in demanding electronic circuits.

This capacitor utilizes through hole mounting with a lead pitch of 10 mm and terminal diameter of 0.6 mm, enabling secure and reliable PCB installation. It features a compact design with dimensions measuring 13 mm in length, 5.6 mm in width, and 19.2 mm in height, making it 50% smaller than comparable series, saving valuable board space.

Operating temperature ranges from -40°C to 105°C, suitable for automotive and industrial environments. The capacitor exhibits a low dissipation factor of 0.1%, minimizing power loss and heat generation. It is epoxy encapsulated with self-extinguishing material that conforms to UL94V-0 standard for enhanced safety.

Compliant with AEC-Q200 automotive quality standards and certified under UL 60384-14, EN 60384-14, and CSA E60384-14, this component is ideal for high reliability circuits such as active filters and high frequency power applications.

Compact metallised polypropylene film capacitor construction. Reliable performance at elevated temperatures up to 105°C. Low noise and low loss characteristics. Encapsulated with fire-retardant material certified to UL94V-0.

Designed for high current circuits and high frequency filtering. Through hole leaded design for robust PCB mounting. Meets automotive standard AEC-Q200 for rigorous application requirements. Industry standard certifications UL, EN, and CSA.

This Panasonic Film Capacitor is a versatile and trusted choice for industrial, automotive, telecommunications, and electronic manufacturing applications. Browse the Electronics Components section at EnvMart for more Panasonic capacitors and complementary passive components to suit diverse circuit needs.
