Pico Technology PicoScope 3000 Series 50 MHz 4-Channel PC Based Oscilloscope PicoScope 3403D MSO

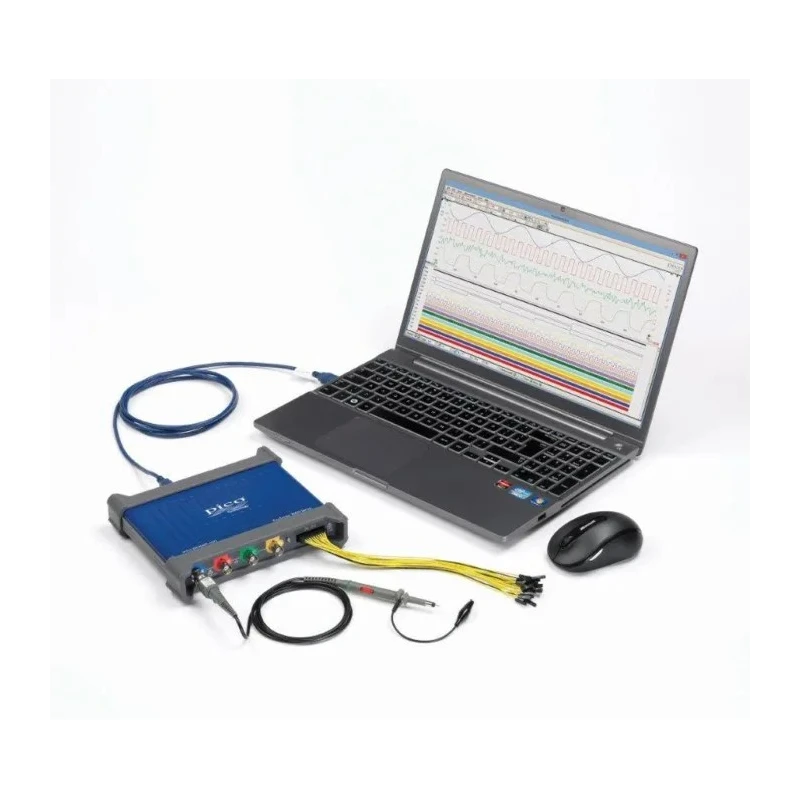

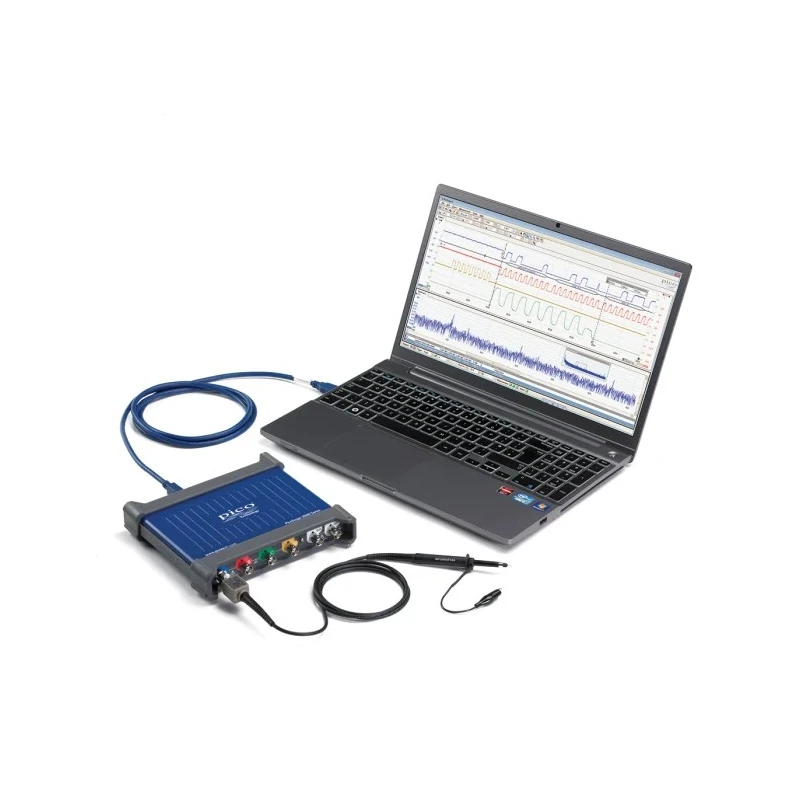

Pico Technology PicoScope 3403D MSO is a 4-channel PC based oscilloscope from the PicoScope 3000 Series with a bandwidth of 50 MHz. It offers high-performance measurement and visualization of electrical signals through a USB 3.0 connection to a laptop or PC, combining portability with advanced capabilities.

The oscilloscope features 1 GS/s real-time sampling, 64 MS buffer memory for deep signal capture, and hardware-accelerated update rates up to 100,000 waveforms per second. Its arbitrary waveform generator and advanced serial decoding capabilities support protocols including SPI, I2C, CAN, LIN, UART, and FlexRay, enabling comprehensive protocol analysis on analog and digital channels.

This instrument complies with safety and environmental standards EN 61010-1:2010, EN 61326-1:2006, and WEEE certification. Its compact form factor (190mm L × 170mm W × 40mm H) and 8-bit vertical resolution make it suitable for precise signal acquisition.

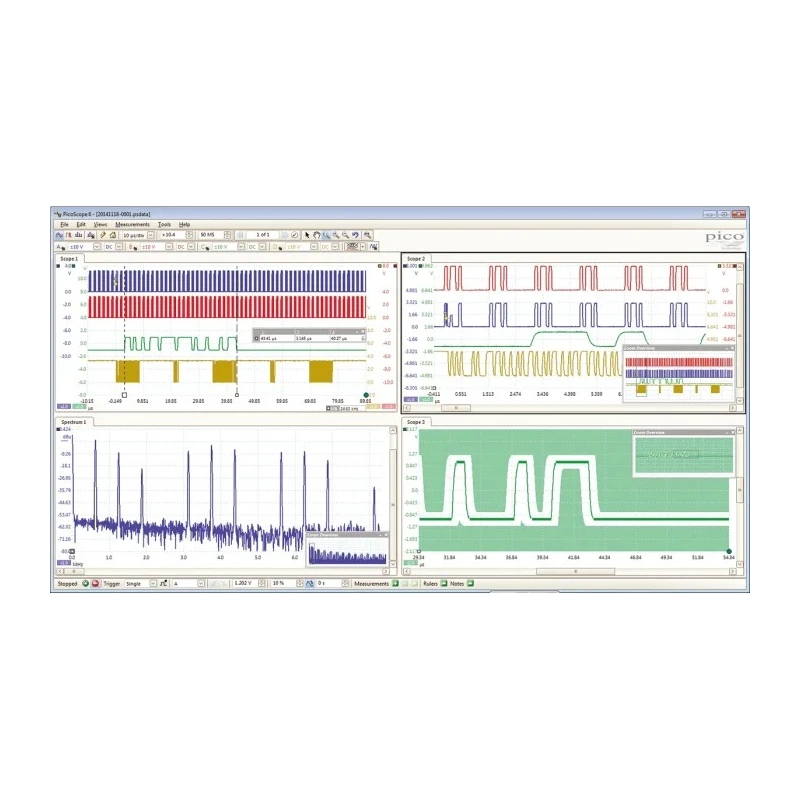

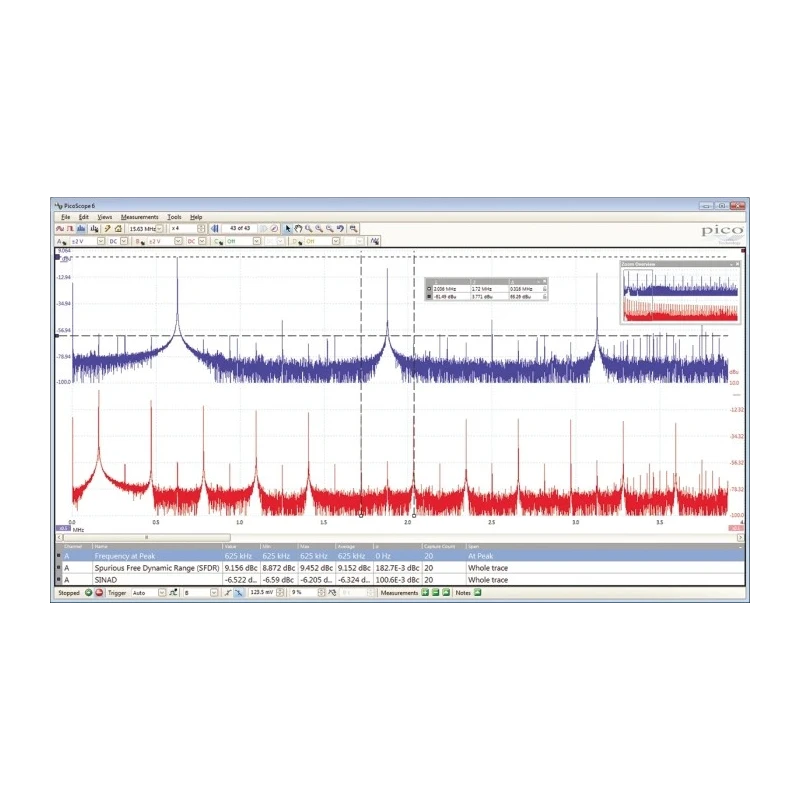

The PicoScope 3403D MSO software allows flexible waveform display with multiple high-resolution traces, math channels, automatic measurements, statistics, spectrum analysis, and colour persistence mode. It supports mask testing and alarms along with advanced digital triggering for pulse width, logic, pattern recognition, and dropout detection.

Applications include electronic design, debugging, servicing, research, fault finding, and monitoring, particularly in industrial, automotive, telecommunications, educational, and laboratory environments.

The oscilloscope supports 4 analogue channels for simultaneous signal monitoring. Offers 1 GS/s real-time sampling and 64 MS buffer memory for deep signal capture. Equipped with hardware-accelerated update rates delivering up to 100,000 waveforms per second.

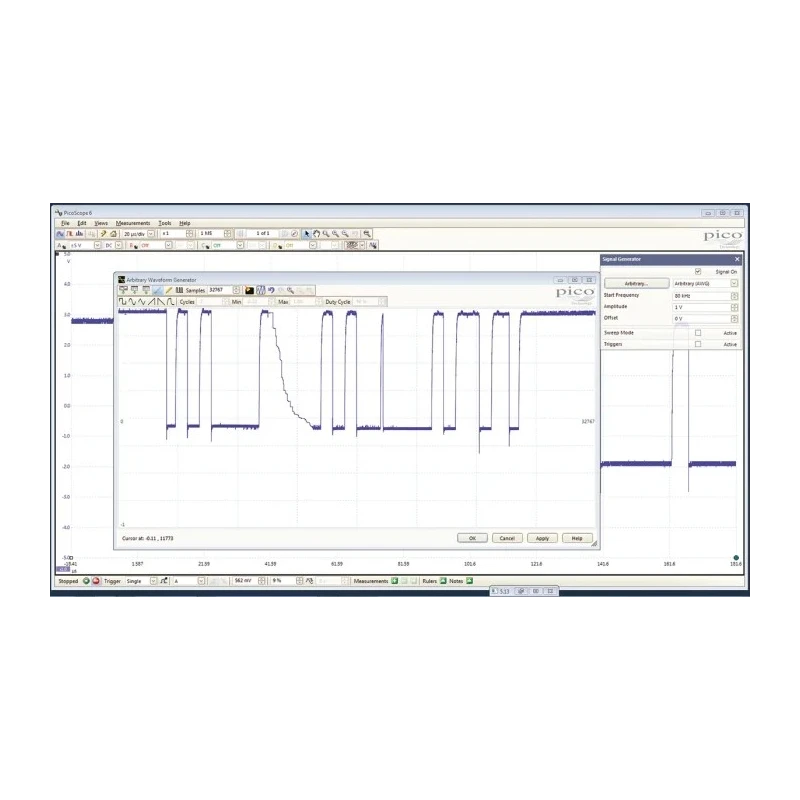

Includes a versatile arbitrary waveform generator and advanced serial decoding capabilities. USB 3.0 powered connection ensures fast data transfer and portable usage with laptops. Supports multiple serial protocols including SPI, I2C, CAN, LIN, UART, and FlexRay.

Compliant with EN 61010-1:2010, EN 61326-1:2006, and WEEE certifications for safety and environmental standards. Compact design measuring 190mm length, 170mm width, and 40mm height with 8-bit vertical resolution. Ideal for electronics testing, automotive diagnostics, telecommunications, industrial monitoring, and research.
