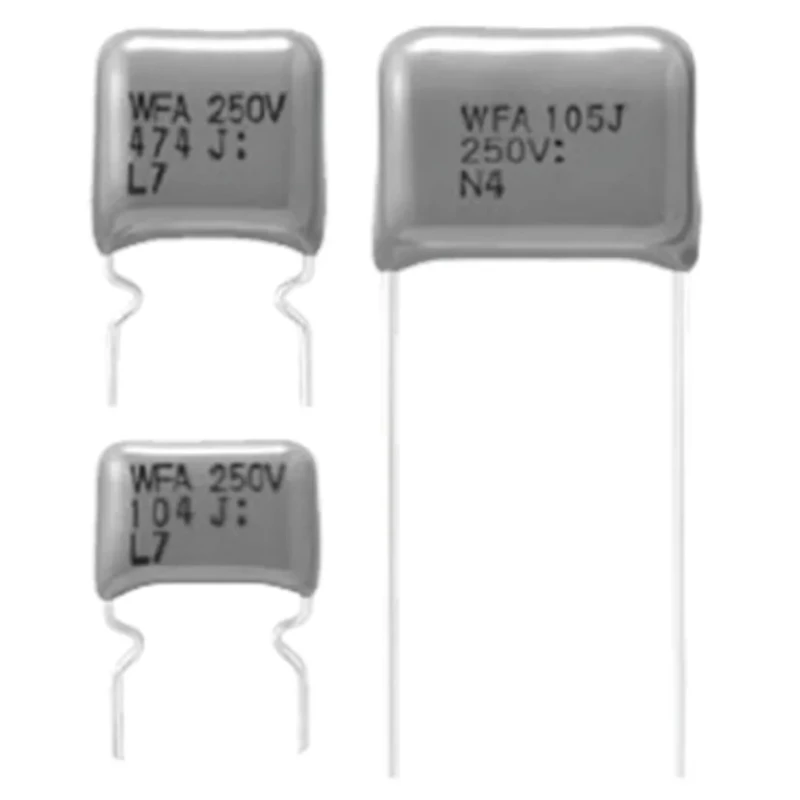

Panasonic ECWF(A) Film Capacitor, 680 nF ±5 %, 250 V dc, Through Hole ECWF2684JAQ

Panasonic ECWF2684JAQ Film Capacitor is a metallised polypropylene type designed to deliver reliable performance in high frequency and high current circuit applications. It is rated at 680 nF capacitance with tight ±5 % tolerance and a DC voltage rating of 250 volts, suitable for various power electronics, active filters, and automotive circuits.

The capacitor features a through hole mount type with a 15mm lead pitch, facilitating easy PCB assembly. Its compact physical dimensions - 18.1mm length, 7.4mm width, and 23.5mm height - make it ideal for space-constrained designs. Operating temperature ranges from -40°C to 105°C, supporting stable operations even under extreme environmental conditions.

This component conforms to the automotive AEC-Q200 standard and complies with CSA E60384-14, EN 60384-14, and UL 60384-14 standards, ensuring high quality and safety. The low dissipation factor of 0.1% also contributes to increased circuit efficiency by minimizing energy losses.

The Panasonic ECWF2684JAQ uses a powder resin coating and is encapsulated in an environmentally safe, self-extinguishing UL94V-0 material. It is engineered for applications requiring high frequency, high current tolerance, and long-lasting performance in both industrial and automotive electronics.

Capacitance value of 680 nanofarads with ±5 % tolerance ensures precision performance. Rated DC voltage of 250 volts suitable for demanding electronic applications. Designed for through hole mounting with a 15mm lead pitch for stable PCB placement.

Compact dimensions: length 18.1mm, width 7.4mm, height 23.5mm for space-efficient integration. Wide operating temperature range from -40°C to 105°C allowing reliable operation in harsh environments. Complies with automotive standard AEC-Q200 ensuring suitability for automotive electronic use.

Dissipation factor of 0.1% for low power loss and high efficiency. Encapsulated in self-extinguishing material meeting UL94V-0 for enhanced safety.

Ideal for industrial, automotive, power electronics, and high-frequency circuit applications. Discover more quality Panasonic electronic components and capacitors at EnvMart for your design and manufacturing needs.
