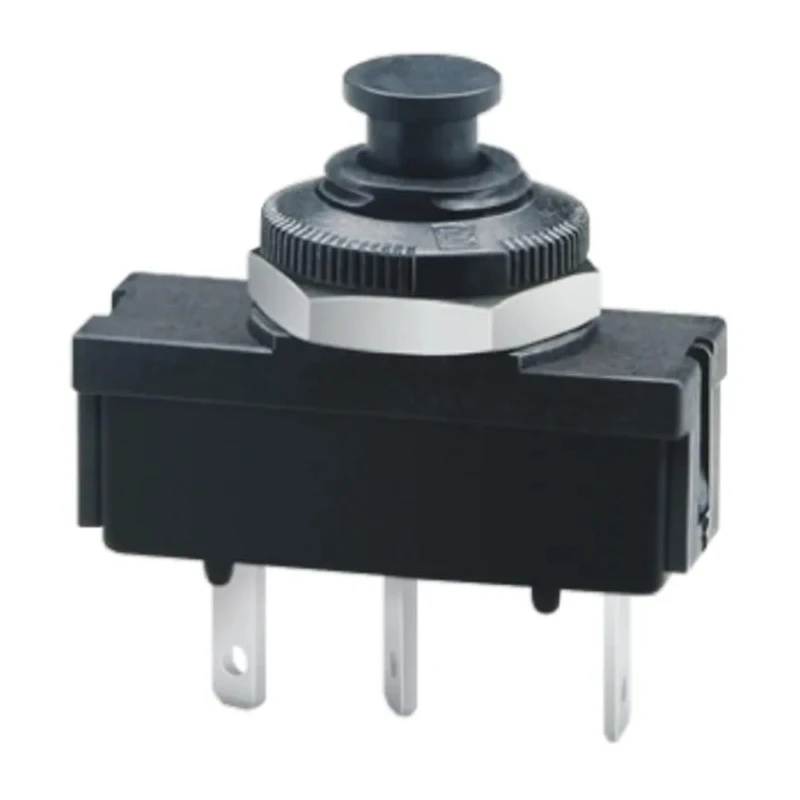

ETA Thermal Circuit Breaker 6.3A Current Rating 1-Pole Panel Mount Model 1410-G111-P2F1-S01-6.3A
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | ETA |
| Model | 1410-G111-P2F1-S01-6.3A |
| Width | 11mm |
| Mount Type | Panel Mount |
| Current Rating | 6.3A |
| Series | 1410G1 |
| Terminal type | Blade |
| Breaking Capacity | 25A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 729-2714Brand: ETAManufacturers Part No.: 1410-G111-P2F1-S01-6.3A |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | Type R |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Button |
| Break Time | Short |
Key Features
- Single pole press-to-reset thermal circuit breaker with fast overload switching performance.
- Panel mount installation with single hole threadneck, hexnut, and knurled nut.
- Blade terminals with changeover contacts for status output signals.
- Temperature-insensitive design suitable for motors, transformers, solenoids, and printed circuit boards.
- Certified UL, CSA, VDE, CE, and RoHS compliant.
- Rated for 250V AC and 50V DC with 25A breaking capacity.
- Compact 11 mm width for efficient panel space usage.
- Button type reset actuator allows quick manual reset.
Product Description
ETA 1410-G111-P2F1-S01-6.3A Thermal Circuit Breaker is a high-performance single pole circuit breaker designed for panel mount applications. This device has a current rating of 6.3A and features a thermally activated tripping mechanism that provides rapid response to overload conditions, ensuring enhanced protection for electrical circuits.
The breaker incorporates a press-to-reset button actuator and blade terminals with changeover contacts to provide status output signals, enhancing system monitoring and control. Its design is largely temperature-insensitive, making it suitable for use in demanding industrial environments including motors, transformers, solenoids, printed circuit boards, hand-held machines, and marine applications.
This model supports rated AC voltages up to 250V and DC voltages up to 50V, with a breaking capacity of 25A and a short break time, further ensuring reliable operation under harsh conditions. The compact 11 mm width allows for space-efficient installation in control panels. Mounting is facilitated by a single hole threadneck with hexnut and knurled nut, enabling secure panel installation.
The circuit breaker is certified to international standards including UL, CSA, VDE, CE, and RoHS, attesting to its quality and safety compliances. Manufactured in Tunisia, the ETA 1410-G111-P2F1-S01-6.3A is an industrial-grade component suitable for electrical protection in automation, manufacturing, HVAC, and other commercial electrical systems.
Single pole press-to-reset thermal circuit breaker with fast overload switching performance. Panel mount installation with single hole threadneck, hexnut, and knurled nut. Blade terminals with changeover contacts for status output signals.
Temperature-insensitive design suitable for motors, transformers, solenoids, and printed circuit boards. Certified UL, CSA, VDE, CE, and RoHS compliant. Rated for 250V AC and 50V DC with 25A breaking capacity. Compact 11 mm width for efficient panel space usage.
Button type reset actuator allows quick manual reset. Type R tripping characteristic for reliable thermal protection.
This product is ideal for use in industrial automation, electrical distribution, motor control, and protection of sensitive electrical equipment. Browse other ETA products and Thermal Circuit Breakers on EnvMart for comprehensive electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this thermal circuit breaker is 6.3A.
It has a breaking capacity of 25A.
This unit is rated for 250V AC and 50V DC.
It supports panel mount installation with a single hole threadneck, hexnut, and knurled nut.
The width of this model is 11 mm, allowing for efficient panel space usage.
It uses blade terminals with changeover contacts for status output signals.
The tripping mechanism is thermal, providing rapid response to overload conditions.
It is certified to CE and RoHS standards.
The reset actuator type is a button, allowing for quick manual resets.
It is suitable for use in motors, transformers, solenoids, printed circuit boards, and other industrial applications.
It features Type R tripping characteristics for reliable thermal protection.
This model is manufactured in Tunisia.
