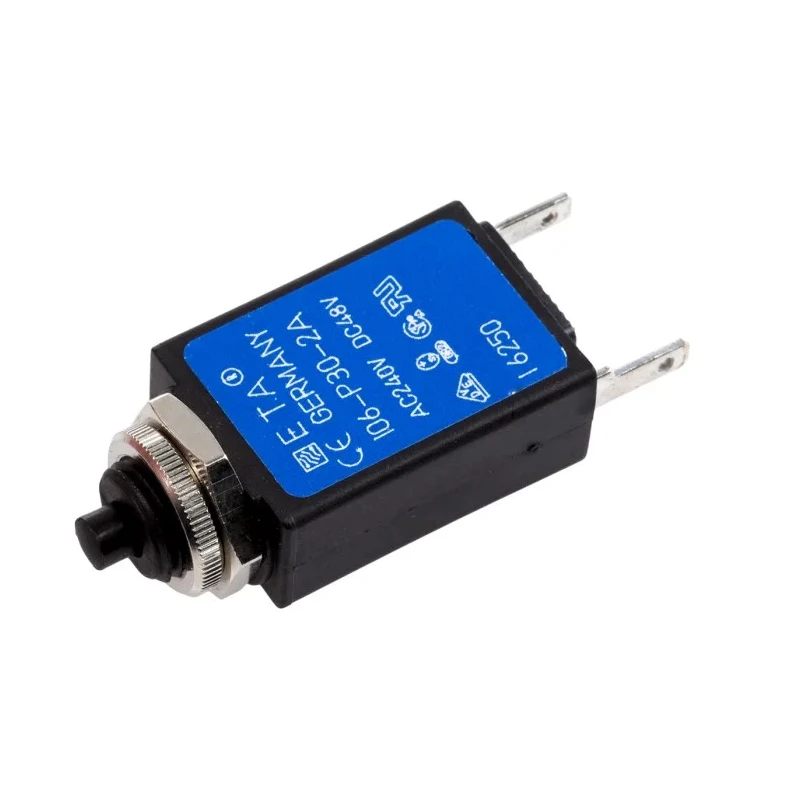

ETA 106-P30 Thermal Circuit Breaker 2A Current Rating 1-Pole Panel Mount 106-P30-000040-2A



Category Circuit Breakers Brand ETA Condition New

Specifications

Country of Origin	India
Range	106-P30
Brand	ETA
Height	64mm
Model	106-P30-000040-2A
Width	11mm
Mount Type	Panel Mount
Current Rating	2A
Series	106-P30
Terminal type	Blade
Breaking Capacity	200A
Number of Poles	1
Standards/Approvals	CSA, DEMKO, VDE, UL, ABS, BV, LROS
Rated AC Voltage	250V ac
Rated DC Voltage	48V dc
Tripping Mechanism	Thermal
Reset Actuator Type	Button
Mount Hole Size	9.6 x 8.9 mm
ETA 106 Thermal Circuit Breaker -, 2A Current Rating 1-Pole, Panel MountBrand	ETA

Key Features

Features a thermal tripping mechanism ensuring reliable overcurrent protection.
Designed for panel mounting with a compact 11mm width and 64mm height.
Offers a breaking capacity of 200 Amperes and supports rated voltages of 250V AC and 48V DC.
Includes a reset actuator button for easy manual reset post-tripping.
Utilizes blade-type terminals for secure electrical connections.
Complies with multiple standards including CSA, DEMKO, VDE, UL, ABS, BV, and LROS.
Single-hole mounting on PCB with a 9.6 x 8.9 mm mount hole size.
Trip free mechanism with slow response time (approx. 30 seconds at twice nominal current) ideal for inductive and reactive loads.

Product Description

ETA 106-P30-000040-2A thermal circuit breaker is a high-quality electrical protection device designed for industrial and commercial applications. Rated for 2 amperes current with a single pole configuration, it provides effective panel mount protection primarily for motors, transformers, and power supplies.

This circuit breaker features a thermal tripping mechanism that offers reliable overcurrent protection. Its slow response time of approximately 30 seconds at twice the nominal current rating makes it suitable for inductive and reactive load environments, preventing nuisance tripping.

Constructed with robust blade-type terminals and a reset actuator button, it ensures easy installation and maintenance. The device is compact with an 11mm width and a 64mm height, designed for single-hole PCB mounting. The mount hole size measures 9.6 x 8.9 mm to facilitate secure placement.

The breaker boasts a breaking capacity of 200 amperes and supports rated AC voltage of 250 volts as well as DC voltage of 48 volts, meeting a variety of operational requirements. It incorporates a trip free mechanism enhancing safety and operational reliability.

Certified by leading global standards organizations including CSA, DEMKO, VDE, UL, ABS, BV, and LROS, this product assures compliance and quality for critical circuit protection. Thermal tripping mechanism for dependable overcurrent protection.

Single pole, with 2A rating suitable for motors and power supplies. Panel mount design with compact dimensions and PCB single-hole mounting. Breaking capacity of 200A at 250V AC and 48V DC rated voltage. Reset actuator button for convenient manual reset after trip events.

Blade terminal type for strong and reliable electrical connection. Complies with international safety and quality standards including CSA, VDE, UL, and more. Provides slow response time to accommodate inductive/reactive loads preventing false tripping.

This ETA circuit breaker is ideal for use in industrial, automation, manufacturing, and electrical panel applications where reliable circuit protection is essential. It is part of the widely trusted 106-P30 series known for durability and safety.
