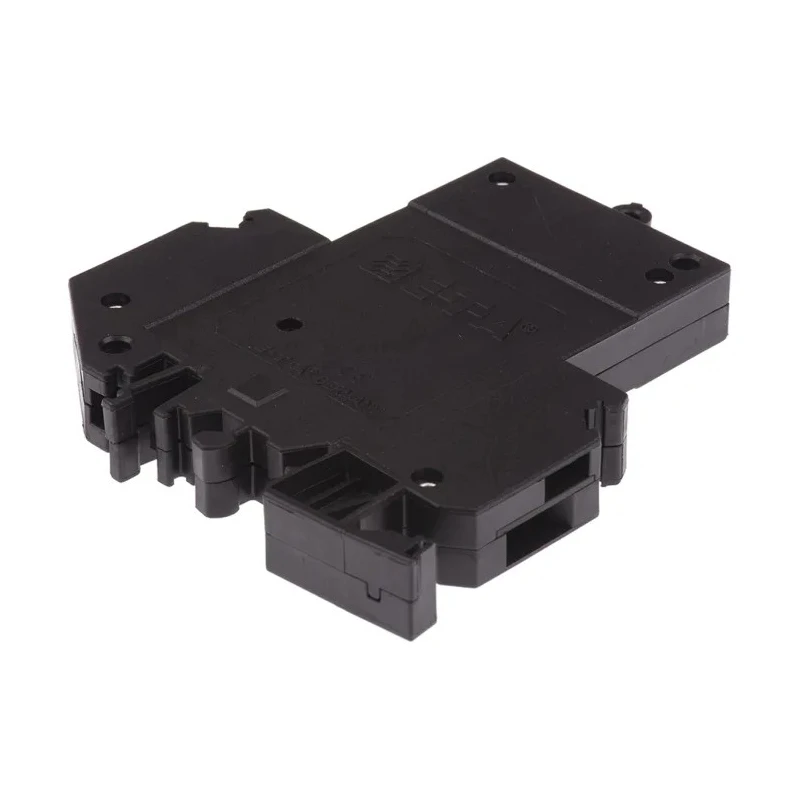

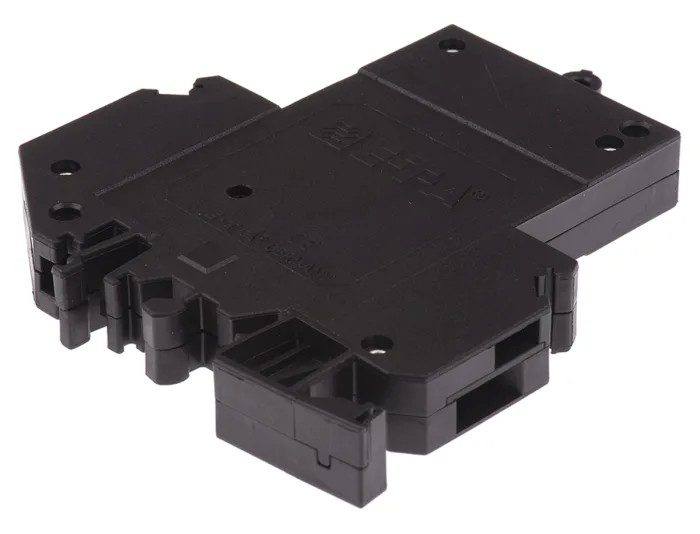

ETA 2210 Thermal Magnetic Circuit Breaker 1A Current Rating 1-Pole DIN Rail Mount 2210-T210-K0M1-H121-1A

ETA 2210-T210-K0M1-H121-1A thermal magnetic circuit breaker is engineered for precision applications including process control, telecommunications, and professional industrial environments. It features a 1 ampere current rating and a single-pole configuration designed for reliable overload and short circuit protection.

The device mounts on DIN rails with a slim 12.5mm width, allowing for high-density installations. The breaker incorporates a toggle switch reset actuator operated trip-free mechanism to enhance safety and operational convenience.

Its thermal-magnetic tripping provides medium break time with type R characteristics, suitable for applications requiring selectivity and quick response to faults. The breaker is rated for 240 volts AC and 48 volts DC, with a breaking capacity of 25 amperes, compliant with CE and RoHS standards.

The model supports compatibility with Top-hat and G-profile DIN rails as well as modular DIN 43880 housings. Its robust screw terminal type ensures secure wiring connections. Typical mechanical life is around 5,000 operations, signifying durability in demanding environments.

Additional features include an auxiliary normally closed contact for remote status signalling and a narrow profile that facilitates compact panel designs. Manufactured in Germany, the product meets international quality and safety standards.

Provides overload and short circuit protection with thermal-magnetic tripping mechanism. Equipped with a toggle switch reset actuator for ease of operation. Compact narrow profile width of 12.5mm suits high-density installations.

Compatible with Top-hat and G-profile DIN rails and modular DIN 43880 housings. Typical operational life of 5,000 mechanical operations ensures reliability. Rated for 240V AC and 48V DC voltages with a breaking capacity of 25A.

Designed for precision applications such as process control and telecommunications. Medium break time and type R tripping characteristic for enhanced selectivity. Constructed with screw terminal type ensuring secure electrical connection.

Meets CE and RoHS standards and is manufactured in Germany.

Ideal for industrial, telecommunications, process control, and precision applications, the ETA 2210 thermal magnetic circuit breaker offers reliable circuit protection and easy integration into DIN rail systems. Browse more products in Circuit Breakers and Fuse categories on EnvMart for comprehensive industrial solutions.
