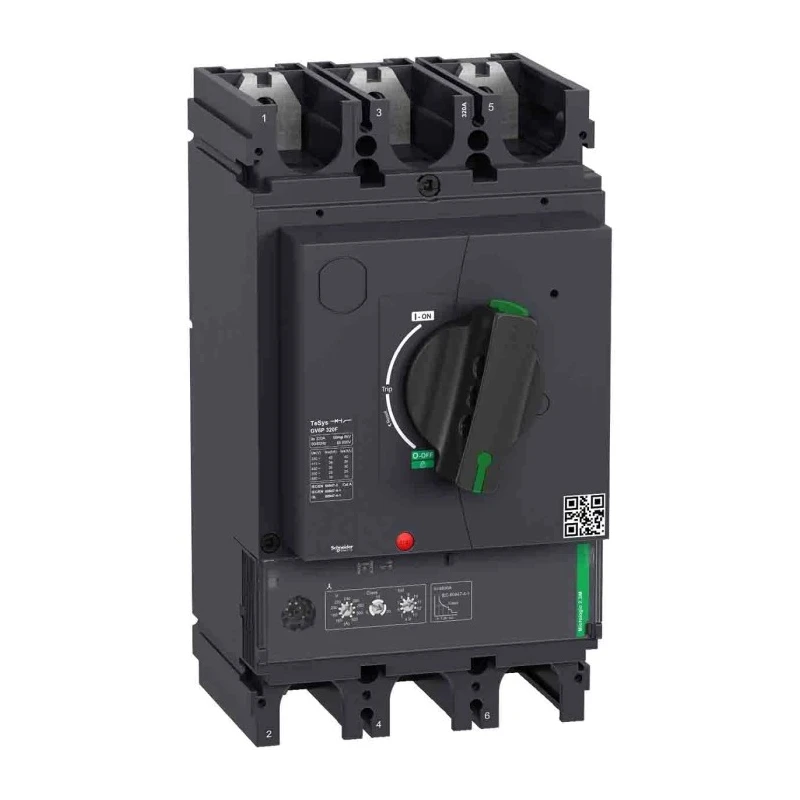

Schneider Electric TeSys GV6P Miniature Circuit Breaker, 3-Pole, 320A, 690V AC, 36 kA Breaking Capacity
Specifications
| Country of Origin | India |
|---|---|
| Range | TeSys |
| Brand | Schneider Electric |
| Height | 140mm |
| Connections | busbars/ cables with lugs |
| Model | GV6P |
| Depth | 255mm |
| IP Rating | IP20 |
| Width | 179mm |
| Mount Type | DIN Rail |
| Current Rating | 320A |
| Series | GV6P |
| Terminal type | Screw |
| Breaking Capacity | 36kA |
| Number of Poles | 3 |
| Rated AC Voltage | 690V |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Handle |
| Break Time | Instantaneous |
| Adjustable Short-time protection threshold (Isd) | 5 to 13 x In with fixed time delay |
| Short-Circuit instantaneous protection (Ii) | 15 x In (max rating of the trip unit) |
| Front LED indications | Green LED for pre-alarm before event of fault and Red LED for motor operation |
Key Features
- Features thermal magnetic tripping mechanism for reliable protection.
- Includes adjustable overload protection ranging from 50 to 100% of rated current.
- Equipped with LED indicators for fault pre-alarm and motor operation status.
- Mounts easily on DIN rail with screw terminal type connections.
- Complies with international standards including EN IEC 60947 and UL approvals.
- Offers instantaneous break time and a reset handle actuator for user convenience.
- Suitable for a wide range of industrial and commercial motor protection applications.
- Designed as part of the TeSys Giga range providing advanced electronic and electromechanical protection.
Product Description
Schneider Electric GV6P320F Miniature Circuit Breaker is a high-performance motor protection device rated at 320A with a 690V AC operating voltage and 36 kA breaking capacity. It belongs to the TeSys Giga range designed for the protection of motors against overload, short circuits, phase unbalance, and phase loss.
This 3-Pole miniature circuit breaker integrates advanced electronic trip units offering adjustable overload protection from 50 to 100% of the rated current and short-time protection thresholds. It supports trip class selection (Class 5, 10, or 20) and features instantaneous short-circuit protection, ensuring swift fault response to safeguard electrical systems.
The device mounts on a DIN rail and features screw terminals for secure busbar and cable connections. Front LEDs provide clear visual status with green indicating pre-alarm and red showing motor operation. The breaker complies with global standards such as EN IEC 60947 series, UL, and CSA, ensuring international reliability and safety.
With thermal magnetic tripping mechanisms and the option for an external door-mounted rotary handle, this miniature circuit breaker is ideal for demanding industrial, commercial, and infrastructure applications. Its compact dimensions of 140 mm height, 179 mm width, and 255 mm depth allow flexible installation in control panels.
Typical applications include commercial buildings, hospitals, utilities, oil and gas facilities, water and wastewater treatment plants, machinery manufacturing, materials handling, and mining operations. The TeSys GV6P320F assures excellent motor protection performance while supporting sustainable practices with its design for disassembly.
Thermal magnetic tripping mechanism offers reliable and precise protection. Adjustable overload and short-time protections customizable to system needs. Instantaneous breaking capacity of 36 kA for high fault clearing capability.
LED indicators for enhanced operational visibility and fault diagnostics. Compliant with IEC 60947 and UL standards for global usability. Simple DIN rail mounting and screw terminal wiring for ease of installation. Designed for demanding industrial and commercial motor protection scenarios.
Compact size facilitates easy integration in electrical panels. Part of Schneider Electric's TeSys Giga series offering advanced motor control solutions. Explore more Schneider Electric motor protection and circuit breaker products on EnvMart for your industrial and commercial electrical needs.
Explore more products in our Circuit Breakers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 36 kA, allowing it to effectively clear high fault currents.
It is rated for a maximum operating voltage of 690V AC.
This miniature circuit breaker features a 3-pole configuration.
It uses a thermal magnetic tripping mechanism for reliable protection against overloads and short circuits.
The current rating for this unit is 320A.
It offers adjustable overload protection ranging from 50 to 100% of the rated current, allowing customization based on system requirements.
The dimensions are 140 mm in height, 179 mm in width, and 255 mm in depth.
It supports connections to busbars and cables with lugs, utilizing screw terminal types for secure wiring.
This model mounts easily on a DIN rail, facilitating straightforward installation in electrical panels.
It features front LEDs, with a green LED indicating pre-alarm status and a red LED showing motor operation.
It complies with international standards including EN IEC 60947 and UL approvals, ensuring its reliability and safety for global use.
This circuit breaker is suitable for various industrial and commercial applications, including motor protection in commercial buildings, hospitals, and utilities.
