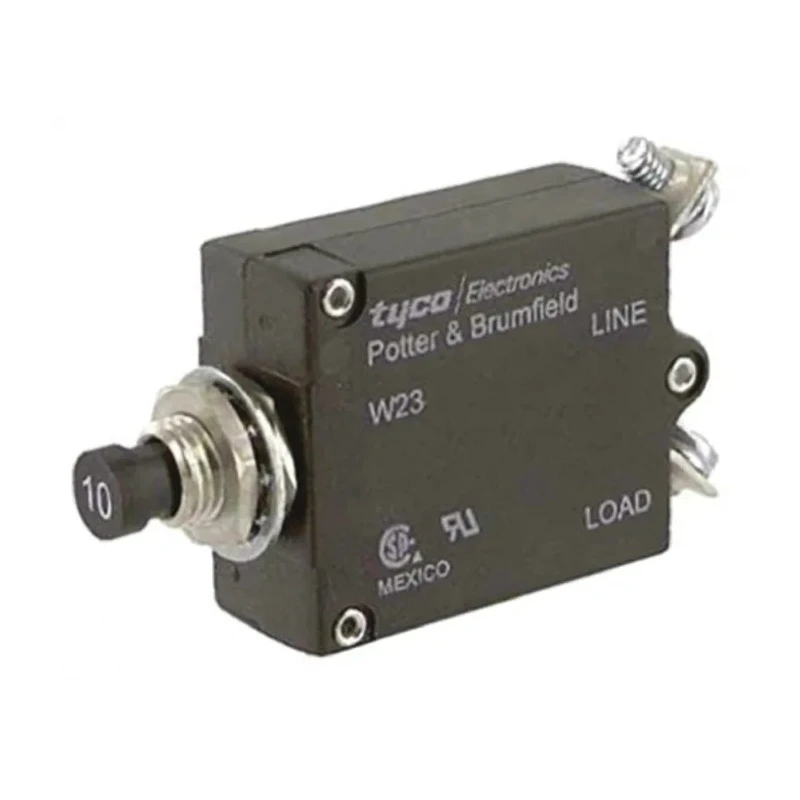

TE Connectivity Thermal Circuit Breaker 0.5 to 50 A Range 40A Current Rating 1-Pole Direct Mount W23-X1A1G-40

TE Connectivity W23-X1A1G-40 Thermal Circuit Breaker is designed for electrical and industrial applications needing safe and reliable circuit protection. With a current rating of 40A and a broad adjustable range from 0.5 A to 50 A, this 1-pole breaker efficiently safeguards circuits from overcurrent conditions using a thermal tripping mechanism. Its direct mount design and screw terminals facilitate straightforward installation and maintenance.

The breaker’s electrical ratings include 240V AC and 50V DC for broad compatibility. It can interrupt fault currents up to 1000A, making it suitable for demanding electrical environments. This device features a toggle switch reset actuator, allowing quick resetting after a trip event, and complies with CE and RoHS standards to meet industry safety and environmental requirements.

Compact in size, with a width of 17.52 mm and a depth of 2.035 mm, the W23-X1A1G-40 saves valuable panel space and supports effective circuit protection in limited areas. Its thermal trip characteristics ensure the breaker trips between 101% and 134% of rated current and must trip at 135% within one hour, delivering reliable performance and safety assurance.

Supports an electrical current range from 0.5 to 50 A for flexible use cases. Thermal trip mechanism ensures protection against sustained overloads. Direct mount with precise 18.8 mm hole size for secure installation. Rated for 240V AC and 50V DC operation in varying electrical systems.

High breaking capacity of 1000A to interrupt fault currents safely. Screw terminals provide strong, reliable electrical connections. Toggle switch reset for convenient manual breaker reset post-trip. Compliance with CE and RoHS directives for quality and safety.

Compact dimensions save panel and enclosure space. Trip-free operation and defined trip range for reliable circuit protection.

This thermal circuit breaker is ideal for industrial automation, electrical panels, machinery protection, HVAC systems, and other commercial applications requiring precise and dependable current interruption functionality. EnvMart offers this high-quality TE Connectivity W23 series breaker as part of its electrical protection solutions.
